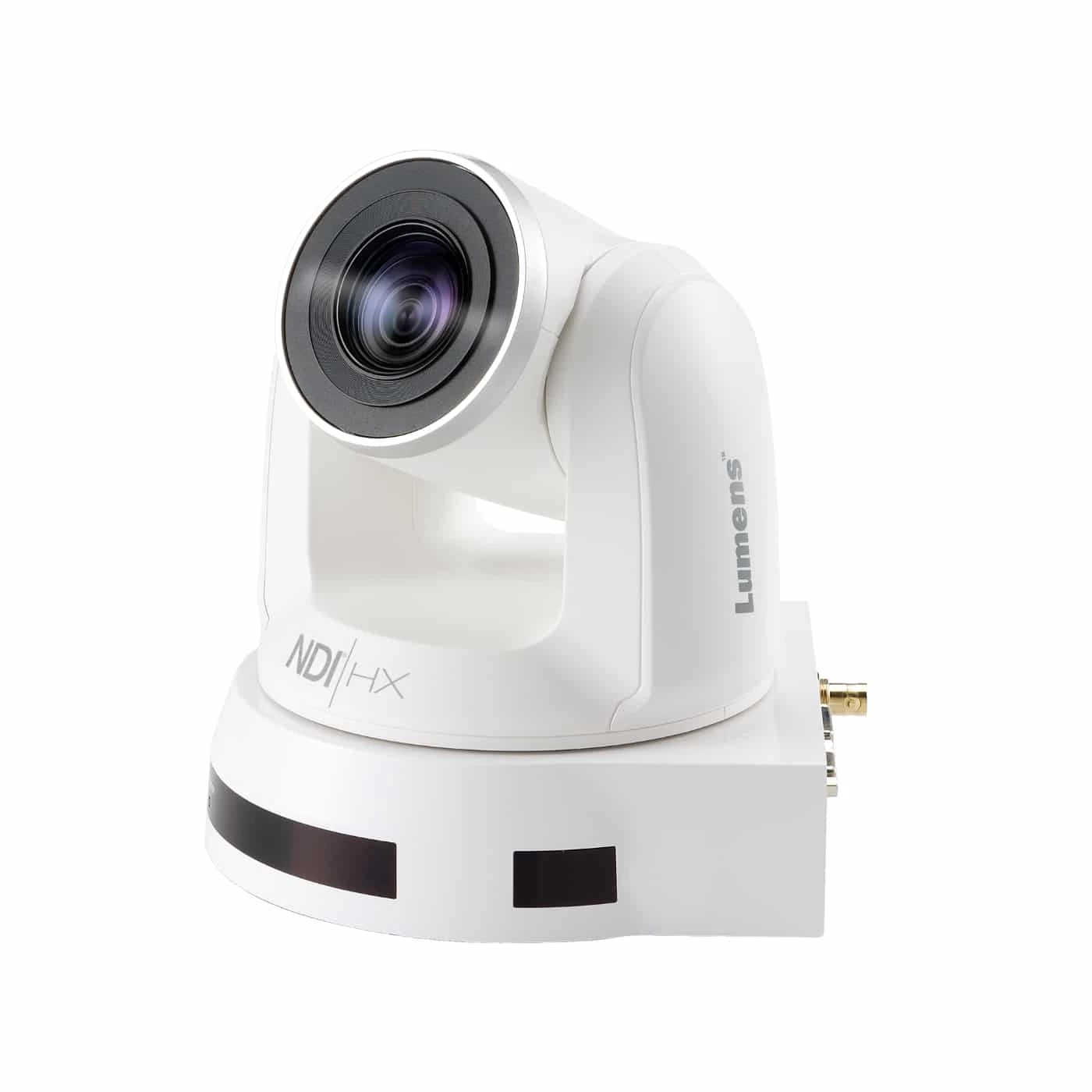

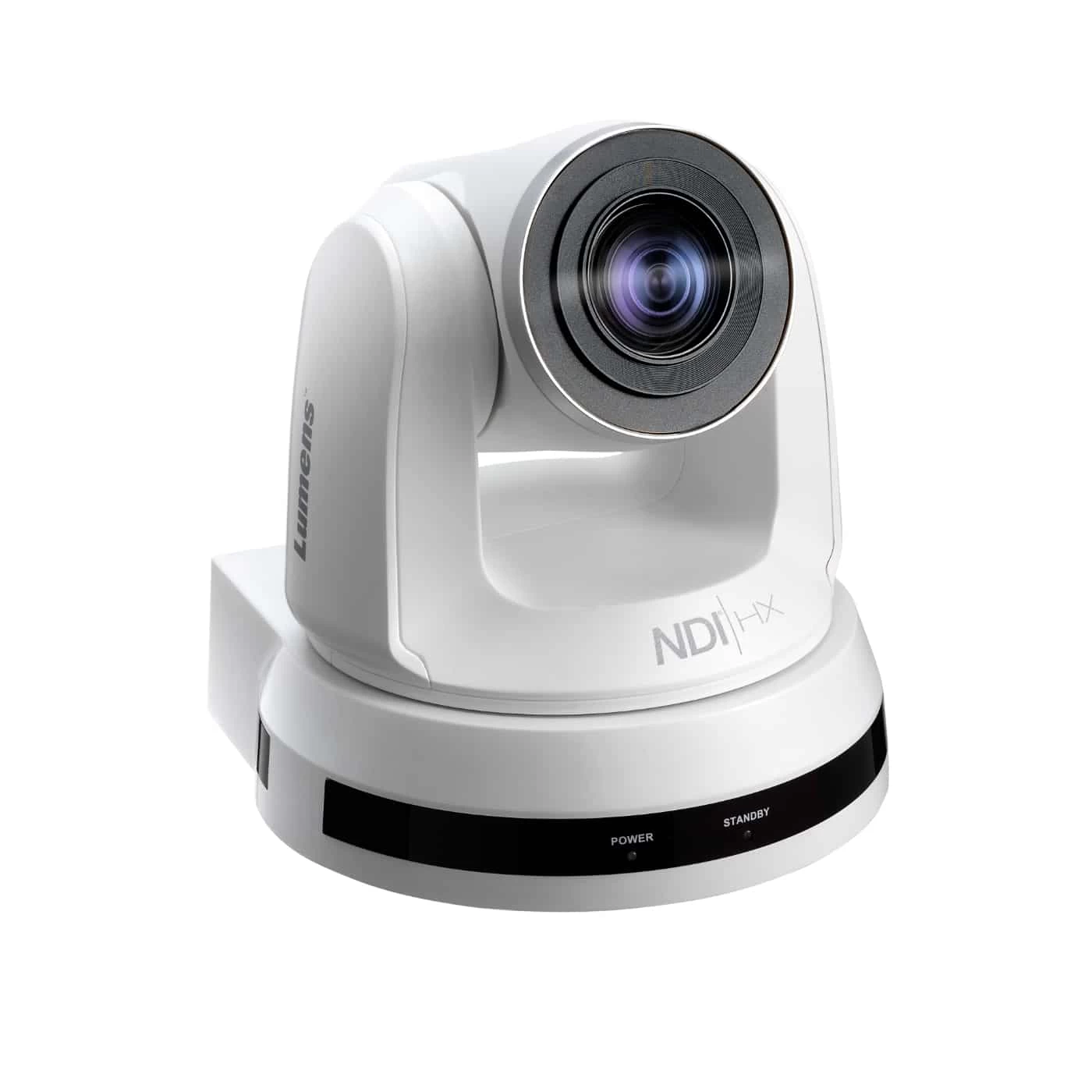

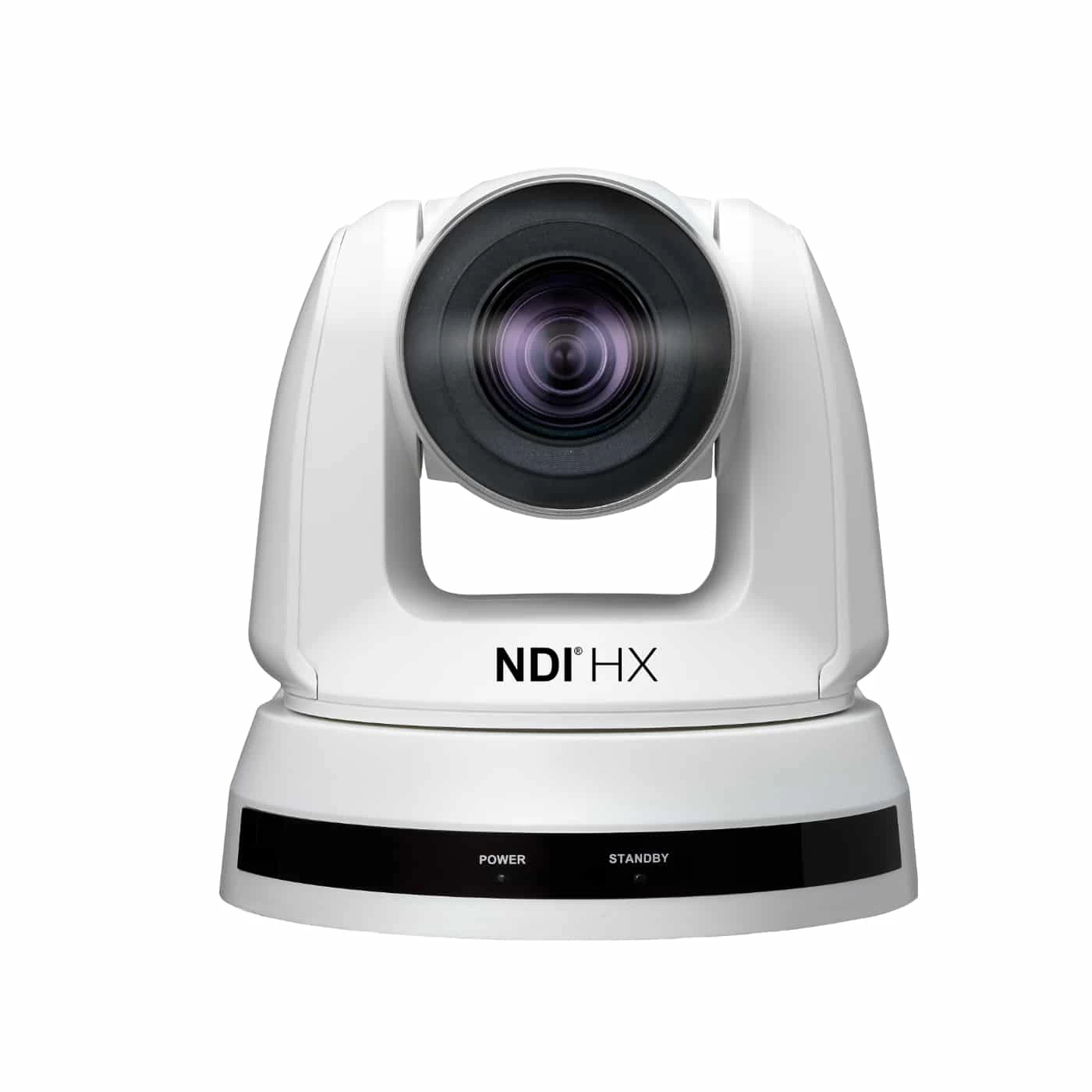

Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x Optical Zoom (White)

Integrate the white Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8″ CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.

Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera’s RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.

KEY FEATURES

• NDI|HX
• Full HD 1080p signal output format with a high frame rate of 60 fps
• 20x optical zoom
• Support POE+ (Power Over Ethernet) lets network cables supply power
• Supports ONVIF protocol
• Ethernet low latency ( < 120 ms)
• Ethernet, NDI®|HX2, HDMI, and 3G-SDI synchronous image outputs
• Maximum horizontal/vertical speed of rotation:120 degrees/second
• Audio Input Support AAC encoding with 44.1/48 K sampling frequency
• Built-in image flip and mirror function for easy installation
• Simultaneous 3G-SDI, HDMI, NDI Output
• 1/2.8″ CMOS Sensor
• IP/RS-232/422 Serial Control

SPECIFICATIONS LUMENS VC-A51PNW

Camera
Model	VC-A51PNW
Sensor	1/2.8″ 2.16MP CMOS
Video Format	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50
Video Output (HD) Interface	3G-SDI / HDMI / Ethernet
Optical Zoom	20x
Viewing Angle	57° (H) / 32.1° (V) / 65.4° (D)
Aperture	F1.6 ~ F3.8
Focal Length	5.33mm ~ 110mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide / Tele
Video S/N Ratio	> 50dB
Minimum Illumination	1.0 lux (F1.6, 50IRE, 30fps)
Focus System	Auto / Manual / Smart AF
Gain Control	Auto / Manual
White Balance	Auto / Manual
Exposure Control	Auto / Manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
AR / VR Systems	FreeD
Tally Light	Yes
Network
IP Protocol	NDI|HX / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE	PoE+ (IEEE802.3at)
Pan & Tilt
Panning Angle	+170° ~ -170°
Panning Speed	300° / sec
Tilting Angle	+90° ~ -30°
Tilting Speed	300° / sec
Preset Positions	128
Output
HDMI / 3G-SDI	1080p60
IP Stream	First: H.264 1080p 60fps Second: H.264 / MJPEG D1 30fps
IP Compression	H.264 / MJPEG
Audio
Input	Lin-in / Mic-in
Output	Ethernet / SDI / HDMI
Compression Format	G.711
Camera Control

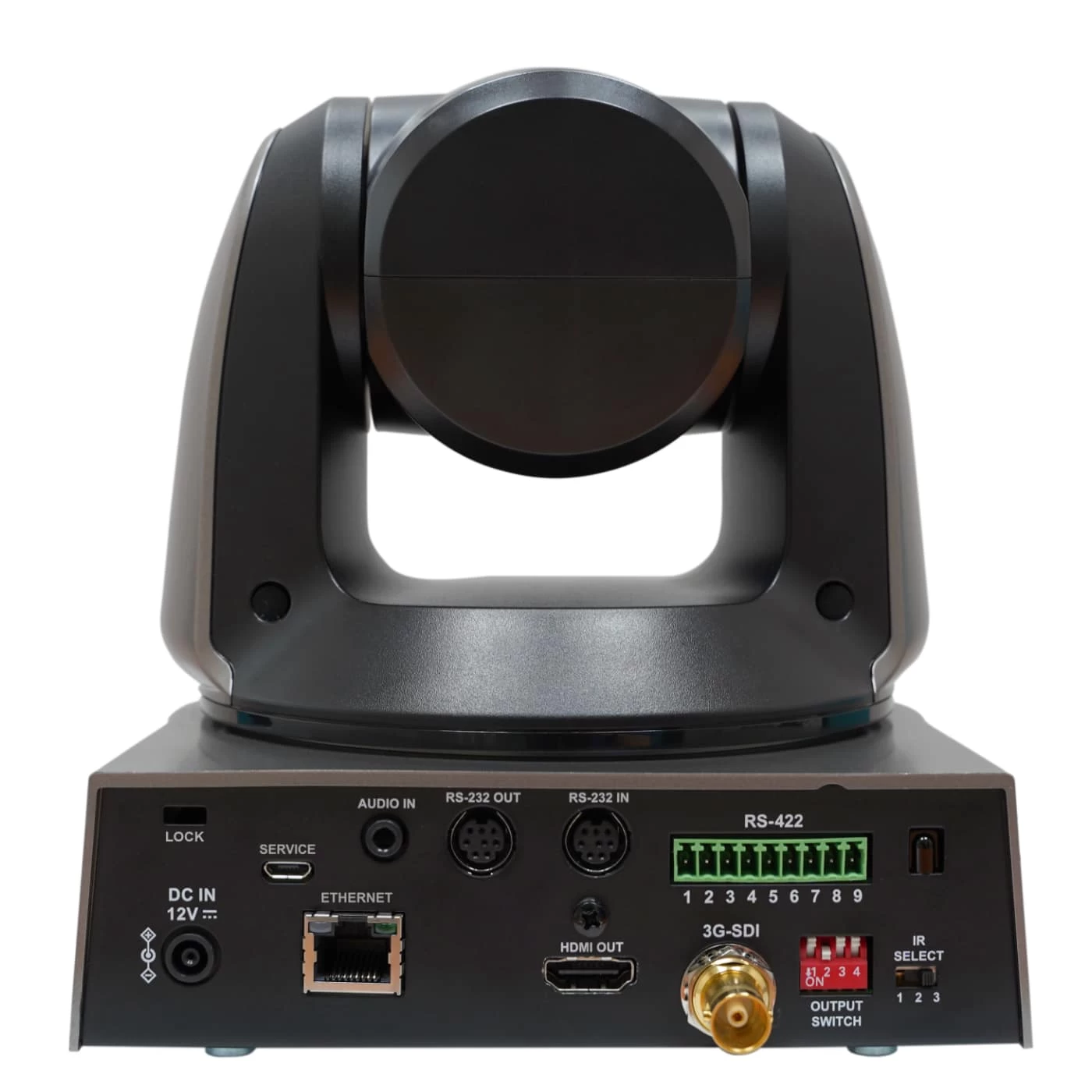

Interface	RS-232 / RS-422 / Ethernet
Protocol	NDI / VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
General
DC In	12V +/- 20%
Power Consumption	PoE: 18.5W DC In: 17W
Weight	4.4 lbs (2 kg)
Dimensions (W x H x D)	6.9″ x 7.3″ x 7.3″ (174 x 186 x 187 mm)

INCLUDED BY DEFAULT

• Lumens VC-A51PN (white)
• Instruction for installation
• IR Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• Metal plate A + B
• M3 screws
