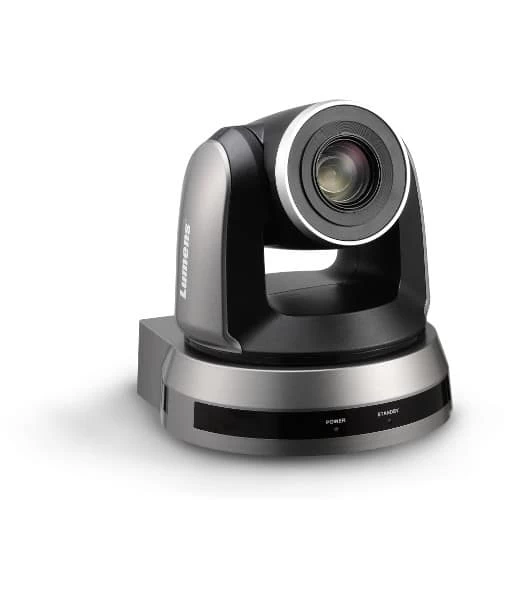

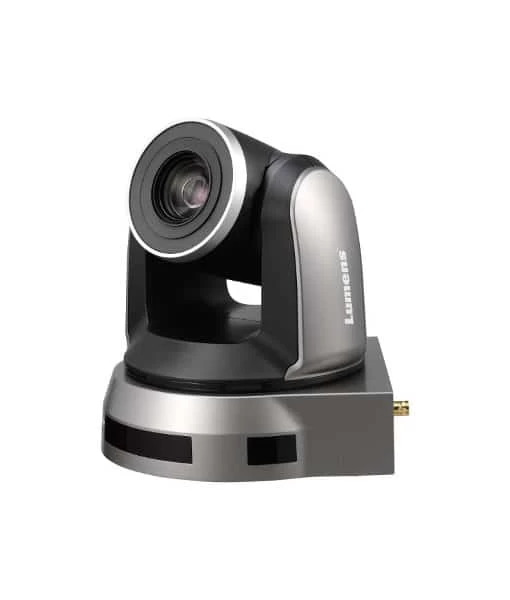

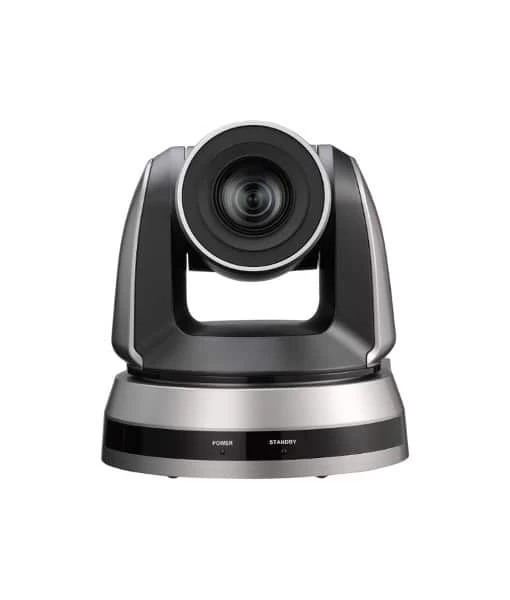

Lumens VC-A52S Full HD 60fps PTZ Camera

Lumens VC-A52S is a reliable professional pan, tilt, zoom camera that is designed for traditional AV installation and video workflows. Featuring 3G-SDI and HDMI outputs, this high definition camera produces excellent picture quality and offers customers the flexibility of shooting in 1080p, 1080i and 720p formats.

HD Workflows

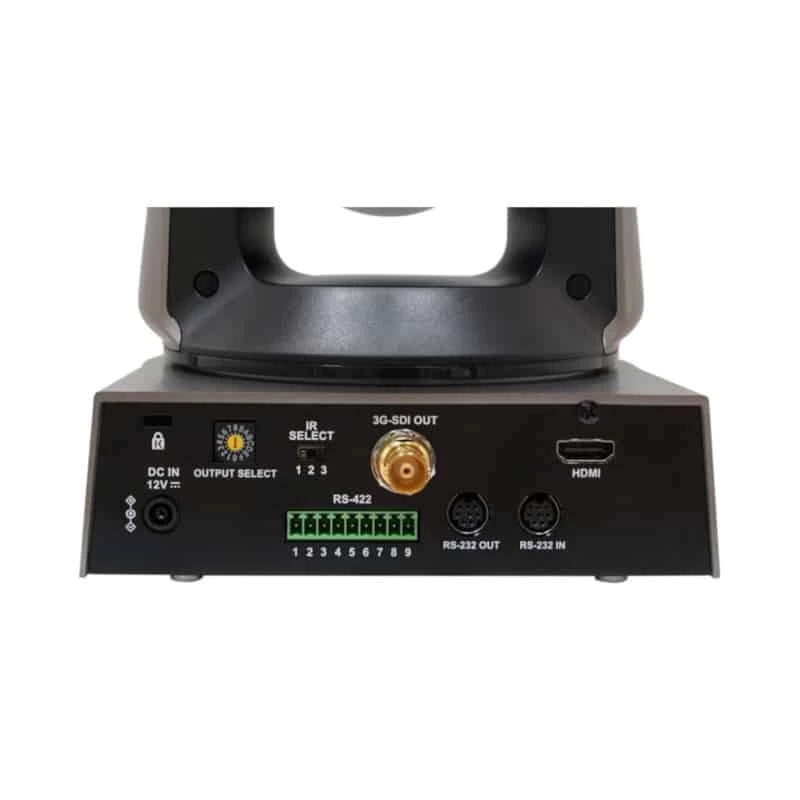

Both the 3G-SDI and HDMI ports are ‘hot’ for synchronous video output. This versatility means that the camera is ready for use in live events and studio production where long SDI cables are required, as well as for integration into HDMI-based e-learning, training and AV installations.

Image Quality

Equipped with a professional 1/2.8 inch image sensor, the VC-A52S provides great video output. The camera excels in difficult lighting conditions thanks to WDR (wide dynamic range), advanced auto-focus, auto-exposure and auto-white balance algorithms. These enable the A52S to maintain a consistent output even while the camera is in motion or when the zoom angle changes.

Hitting the Right Angle

The robotic mechanism allows the camera to pan -170° to +170° and tilt from -30° to +90°. Camera movement is smooth, quiet, and precise, while the speed of movement can be varied by the operator using one of the Lumens’ hardware controllers. Perfect for use in conference rooms and public meeting spaces, the VC-A52S can be mounted to a floor stand, or suspended from the ceiling. The camera’s image flip mode instantly corrects the output when the camera is inverted.

Control and Presets

Controllers connect via the RS-232/422 interface. Supporting industry-standard VISCA and PELCO-D protocols, the camera is compatible with a range of control hardware, making it easy to integrate the camera into your video network. For consistent results and faster operation, the camera stores up to 128 presets. Activating a preset instantly applies user-defined settings for pan, tilt and zoom position, focus, exposure, and white balance. This allows the operator, for example, to automatically trigger a panning movement across a stage, a close-up focus on the presenter at the lectern, or a wide-angle shot.

KEY FEATURES

• Full HD 1080p with 60 fps
• 1/2.8 inch image sensor
• 3G-SDI and HDMI outputs
• 20x optical zoom with 12x digital zoom
• Supports WDR to provide a vivid image even under backlighting
• Maximum horizontal/vertical speed of rotation: 300° / sec

SPECIFICATIONS

Sensor	1/2.8″ 2 MP CMOS
Video Output	1080p: 60/59.94/30/29.97 1080i: 60/59.94 720p: 60/59.94/30/29.97
Zoom Lens	Optical: 20x Digital: 12x
Maximum Rotation Speed	300°/second
Panning Range	-170 to 170° (340°)
Tilt Range	-30 to 90° (120°)
Preset Positions	128
HD Video Output	3G-SDI, HDMI
Camera Control Interface	RS-232, RS-422
Video S/N Ratio	>50 dB
Shutter Speed	1 to 1/10,000 seconds
Focal Length	4.7-94mm
Horizontal Viewing Angle	63°
Aperture	f/1.6 to f/3.5
Minimum Illumination	1.0 Lux (f/1.6, 50 IRE, 30 fps)
Minimum Object Distance (M.O.D.)	Wide: 12″ (300 mm) Telephoto: 39″ (1000 mm)
Gain Control	Auto, Manual
White Balance Control	Auto, Indoor, Outdoor, One-Push, Manual, R/B Gain
Exposure Control	Auto, Manual
Focus System	Auto, Manual
Image Flip	Yes
Dimensions	6.9 x 7.3 x 7.3″ (174 x 186 x 186 mm)
Weight	4.4 lb (2 kg)

INCLUDED BY DEFAULT

• Lumens VC-A52S Full HD 60fps PTZ Camers
