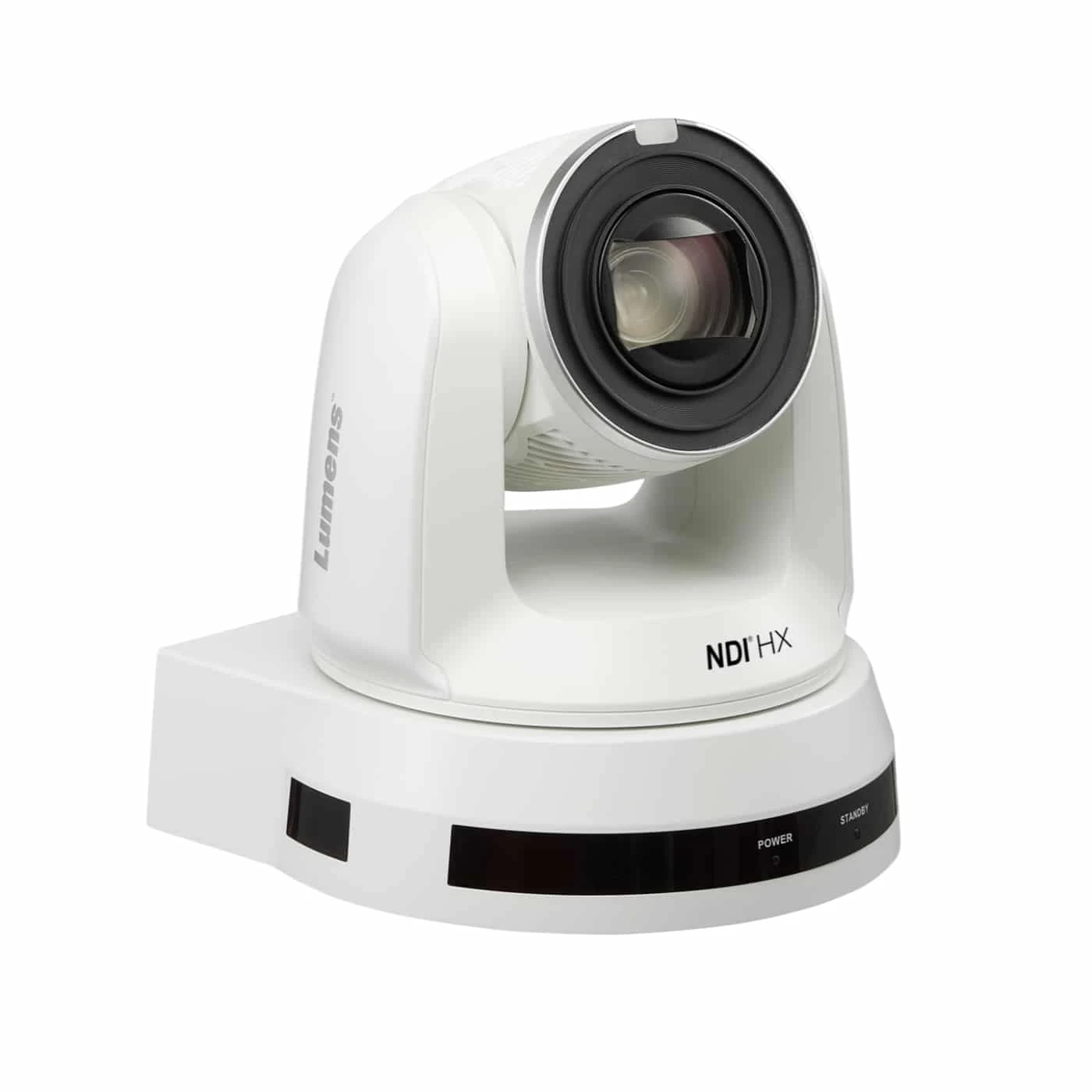

Lumens VC-A61PNW 4K NDI®|HX2 PTZ Camera



Lumens VC-A61PNW 4K NDI®|HX2 PTZ Camera with 30x Optical Zoom

The Lumens™ VC-A61PNW is equipped with a professional 1 / 2.5” CMOS sensor with 4K Ultra HD output at 30fps. The camera delivers a crystal-clear image and natural color reproduction. Its superior 30x optical zoom lens captures every detail even in low light conditions. The VC-A61PNW supports NDI®|HX that delivers high-quality video with ultra-low latency for your video production. The camera has Ethernet, HDMI and 3G-SDI outputs. It is applicable for use in a broadcasting studio, conference room, live events, and house of worship, etc.

The lumens camera can also be used with Skaarhoj PTZ Pro.

KEY FEATURES

• 4K UHD 30fps and 1080p 60fps video signal output format
• NDI®|HX2
• 30x optical zoom, 68 degrees Horizontal Field of View
• Supports PoE (Power over Ethernet) using network cables to supply power

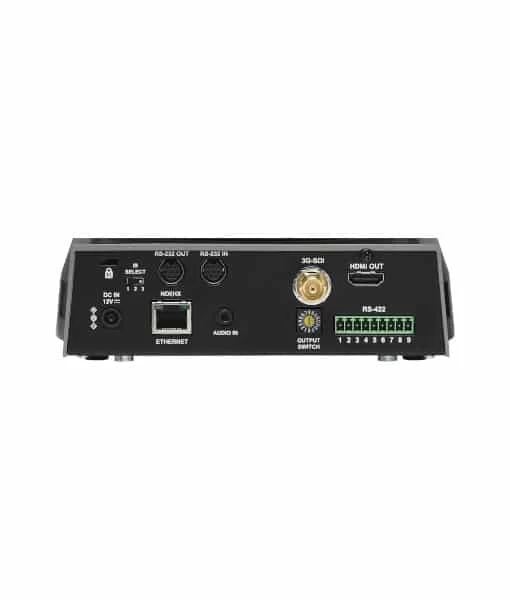

• Ethernet, HDMI and 3G-SDI synchronous image outputs
• Audio input supports AAC / G.711 encoding with 44.1K / 48K sampling frequency
• Free Lumens VMS software for controlling the cameras remotely from a local area network

SPECIFICATIONS LUMENS VC-A61PNW

Sensor	1/2.5″ 8MP CMOS
Video Format	2160p: 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 720p:59.94 / 50 1080i:59.94 / 50
Video Output	3G-SDI / HDMI / Ethernet
Optical Zoom	30x
Digital Zoom	12x
Horizontal Viewing Angle	68°
Panning Angle	+170 68°~ 170°
Panning Speed	300°/sec
Tilting Angle	+90 ~ -30°
Tilting Speed	300°/sec
Aperture	F1.6 ~ F3.4
Focal Length	4.6mm ~ 135mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide/Tele)
Video S/N Ratio	> 50dB
Minimum Illumination	0.1 lux (F1.6, 50IRE, 30fps)
Focus System	Auto, Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Multiple Video Stream	H.264 4K30fps H.264 640×360 30fps *HDMI/SDI output 1080i60, NDI streams 1080p60
Audio Compression Format	AAC
Camera Control Interface	RS-232 / RS-422 / Ethernet
Control Protocol	VISCA / PELCO D / ONVIF
Tally Light	Yes
PoE	PoE+ (IEEE802.3at)
Video Stream	NDI
Video Compression	H.264
Audio Input	Line In/MIC In , Phone Jack 3.5mm x1
Audio Output	Ethernet / SDI / HDMI
IR pass-through	Yes
IR receiver	Yes
IR Remote control	Yes
DC In	12V +/- 20%
Power consumption	PoE: 18W DC IN: 16W
Weight	2 kg (4.4 lbs)
Dimension	174 x 186 x 187 mm (6.9” x 7.3” x 7.3”)

INCLUDED BY DEFAULT

• Lumens VC-A61PNW
• Instruction for installation
• Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• Metal plate A + B
• M3 screws
