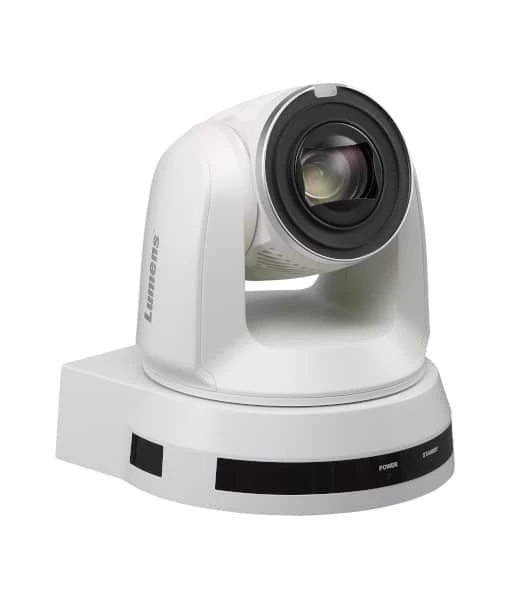

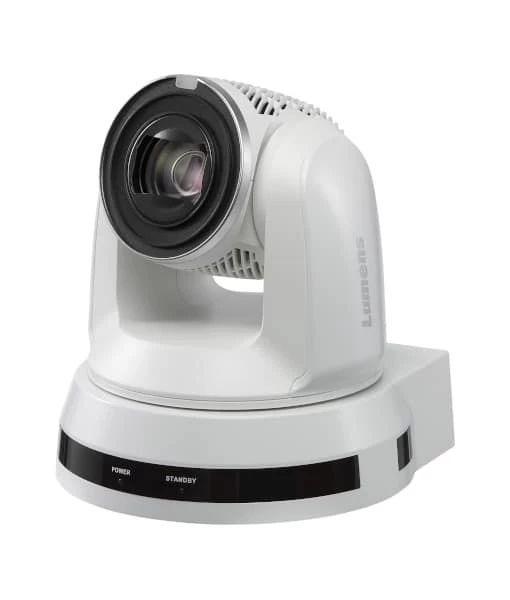

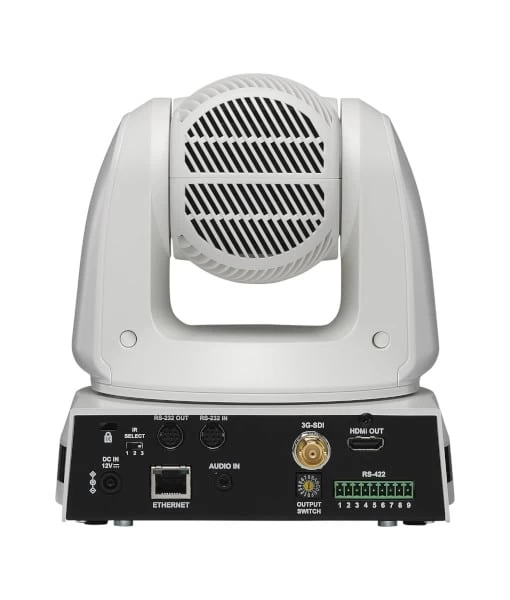

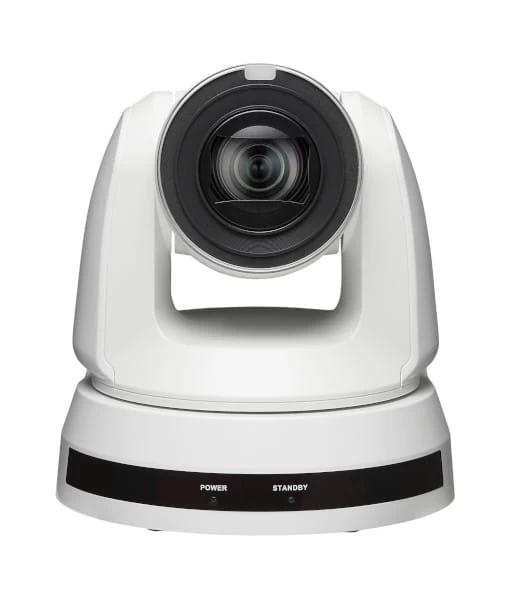

Lumens VC-A61PW 4K 30x Optical Zoom PTZ Camera



Lumens VC-A61PW 4K UHD 30x Optical Zoom PTZ Camera

The Lumens™ VC-A61PW HD Pan / Tilt / Zoom (PTZ) IP camera is equipped with a professional 1 / 2.5 inch image sensor with 4K Ultra HD output at 30fps. The power is supplied through 12V input or the Power over Ethernet (PoE+) providing an economical and easy solution. The superior 30x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a room. The VC-A61P has different interfaces such as Ethernet, HDMI and 3G-SDI. It supports live broadcasting with H.264 / H.265 format. These features not only allow for simultaneous image outputs, they also result in the best image quality and is compatible with all types of video equipment. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. The VC-A61PW is applicable for lecture recording, video conferencing, and live broadcasting.

The lumens camera can also be used with Skaarhoj PTZ Pro.

KEY FEATURES

• 4K UHD 30fps and 1080p 60fps video signal output format
• 30x optical zoom, 68 degrees Horizontal Field of View
• Triple stream video, output format H.264 / HEVC
• Supports PoE (Power over Ethernet) using network cables to supply power
• Ethernet, HDMI and 3G-SDI synchronous image outputs
• Audio input supports AAC / G.711 encoding with 44.1K / 48K sampling frequency
• Free Lumens VMS software for controlling the cameras remotely from a local area network

SPECIFICATIONS LUMENS VC-A61PW

Sensor	1/2.5″ 8MP CMOS
Video Format	Resolution : 4K*/1080p/720p Frame Rate : 59.94/50/29.97/25 *So far 4K can only support 29.97/25
Video Output (HD)	Interface 3G-SDI, HDMI,Ethernet
Optical Zoom	30x
Horizontal Viewing Angle	68°
Panning Angle	+170 68°~ 170°
Panning Speed	300°/sec
Tilting Angle	+90 ~ -30°
Tilting Speed	300°/sec
Aperture	F1.6 ~ F3.4
Focal Length	4.6mm ~ 135mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide/Tele)
Video S/N Ratio	> 50dB
Minimum Illumination	0.1 lux (F1.6, 50IRE, 30fps)
Focus System	Auto, Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Image Flip
Preset Positions	256
Multiple Video Stream	H.265 4K 30fps H.264 1080p 60fps H.264 640×360 30fps
Audio Compression Format	G.711 / AAC
Camera Control	Interface RS-232 / RS-422 / Ethernet Protocol VISCA / PELCO D / ONVIF
Tally Light	Yes
PoE	PoE+ (IEEE802.3at)
Video Stream	RTSP / RTMP / MPEG-TS
Video Compression	H.265 / H.264
Audio Input	Line In/MIC In , Phone Jack 3.5mm x1
Audio Output	Ethernet / SDI / HDMI
IR pass-through	yes
IR receiver	yes
DC In	12V +/- 20%
Power consumption	16W
Weight	2 kg (4.4 lbs)
Dimension	174 x 186 x 187 mm (6.9” x 7.3” x 7.3”)



INCLUDED BY DEFAULT

• Lumens VC-A61PW
• Instruction for installation
• Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• Metal plate A + B
• M3 screws
