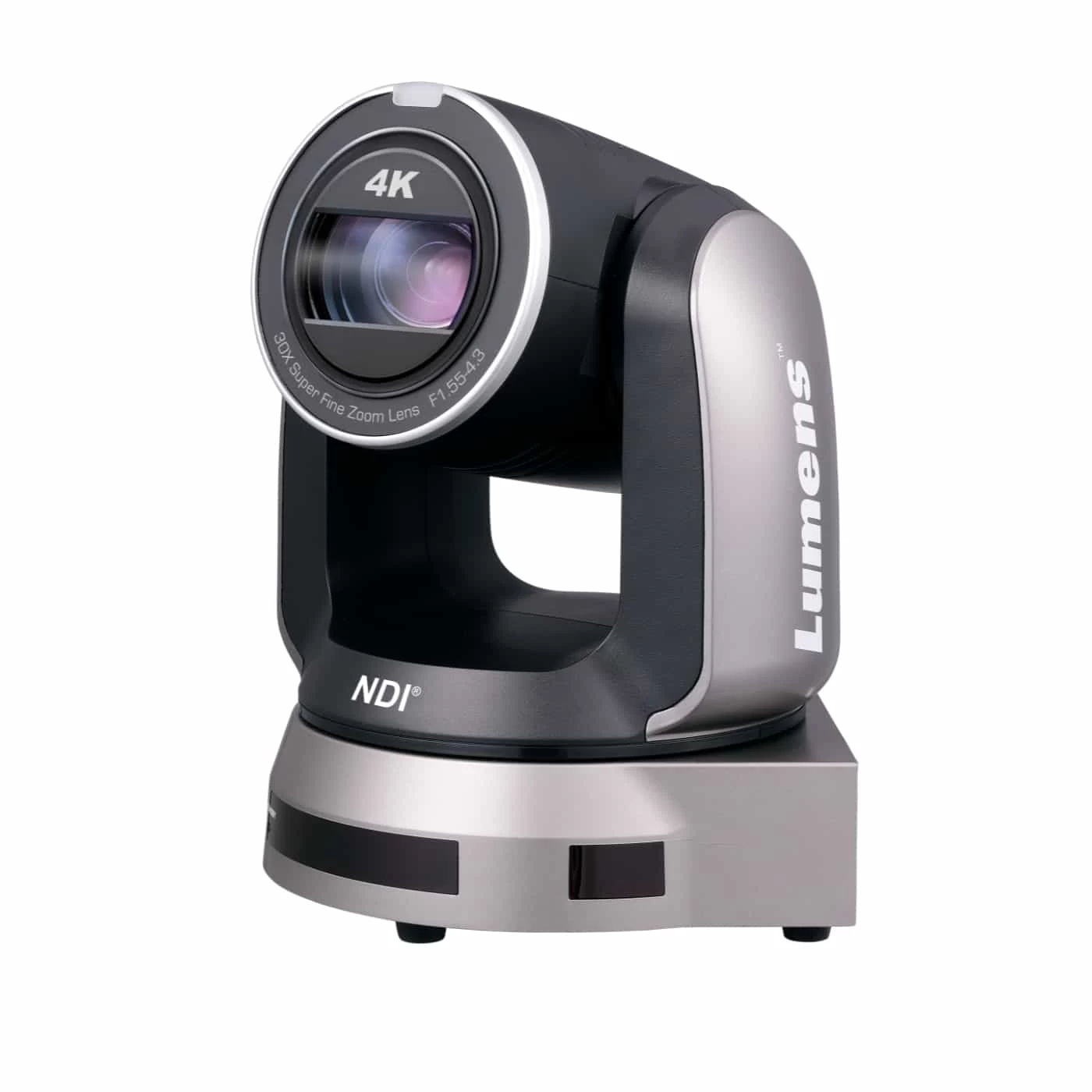

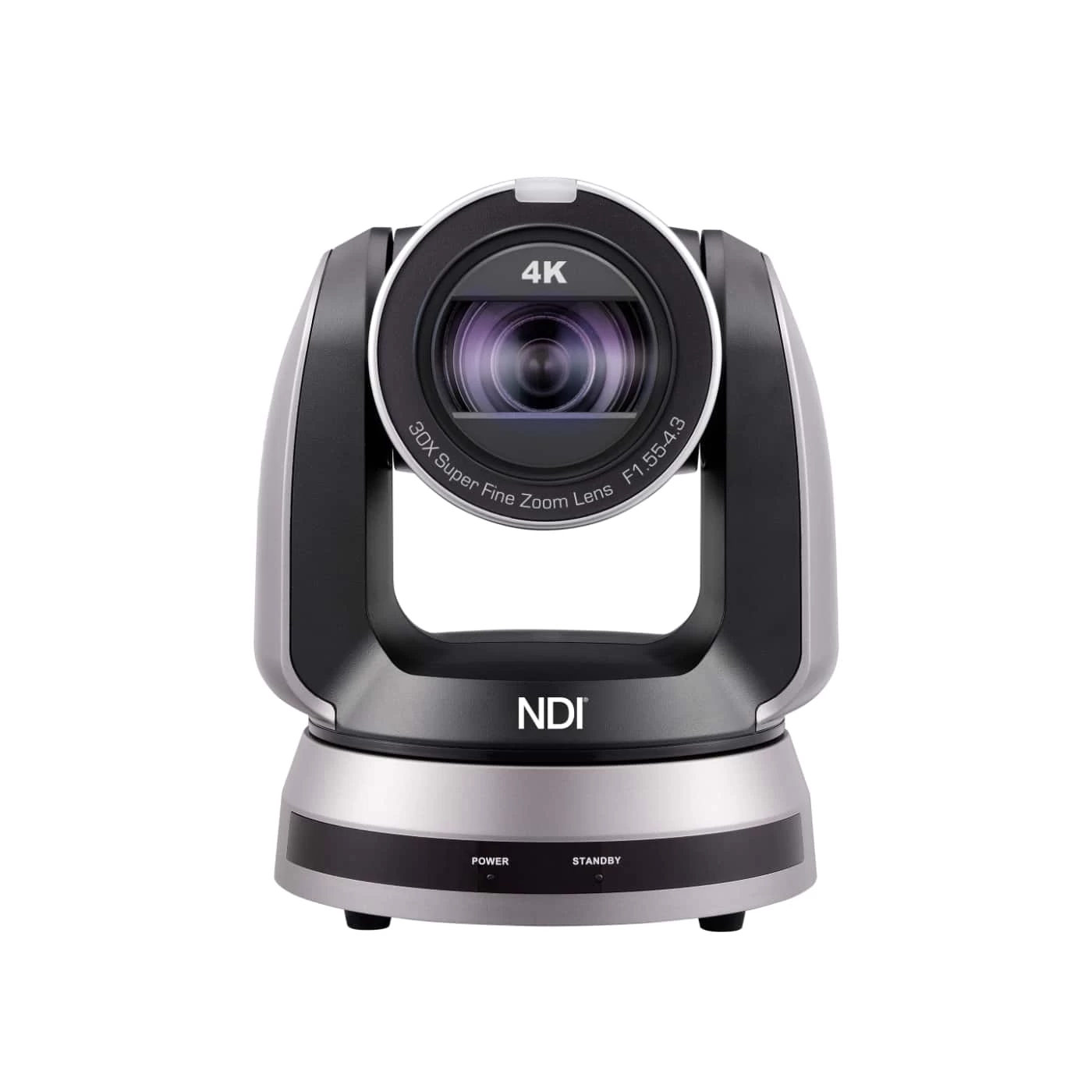

Lumens VC-A71P-HN UHD 4K High Bandwidth NDI PTZ Camera (Black)

With full NDI bandwidth and NDI|HX3 technology, the VC-A71P-HN UHD 4K NDI PTZ Camera from Lumens delivers UHD 4K video with professional color protocols in TV video production, VR/AR, and broadcast applications. The camera’s 1/1.8″ 9.17MP CMOS sensor outputs UHD 4K video via dual 12G & 3G-SDI, HDMI, USB-B, and IP ports. Other features of the camera’s lens include 30x optical and 12x digital zoom.

Control is achieved via the USB-B, Ethernet, RS-232, or RS-422 connections or with the included remote control for flexible installation and intuitive setup. Adjust pan, tilt, and movement speed manually. A 3.5mm audio line input can add a microphone to the camera’s interface. Power can be delivered via the DC input port or via Ethernet using PoE++.

KEY FEATURES

• NDI|HX3 and high-bandwidth NDI simultaneous output support to deliver video with low latency directly to NDI networks
• Dual 12G-SDI/3G-SDI ports and a Genlock connector synchronize broadcast equipment
• BT.2020/Rec.709 color gamut for wide and precise color reproduction
• Supports FreeD protocol for use with VR and AR video production sets without need for additional sensors
• 340° pan, 120° tilt, 300°/sec movement speed, 256 preset positions
• 1/1.8″ 9.17MP CMOS Sensor
• Capture up to UHD 4K Video
• NDI|HX, Genlock Support
• 12G/3G-SDI, HDMI, USB & IP Outputs
• 30x Optical Zoom, 12x Digital Zoom
• FreeD VR/AR Protocol
• IP Interface with PoE++ Power & Control
• BT.2020/Rec.709 Color Gamut
• 3.5mm Audio Input
• RS-232/RS-422 Serial Control

SPECIFICATIONS LUMENS VC-A71P-HN-B

Model	VC-A71P-HN-B
Sensor	1/1.8″ CMOS 9.17 Megapixel
Shutter Speed	1/10000 to 1 Second
Optical Zoom	30x
Max Digital Zoom	12x
External Recording Modes	SDI/BNC / HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 30.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264, H.265, MJPEG, MPEG-TS, NDI, NDI|HX, RTMP, RTMPS, SRT 3840 x 2160 at 59.94p (2.0 to 20.00 Mb/s) 1920 x 1080 at 59.94p (2.0 to 20.00 Mb/s) 640 x 360 at 29.97p (0.5 to 5.0 Mb/s)
Supported Control Protocols	NDI Pelco-D RS-232 RS-422 VISCA

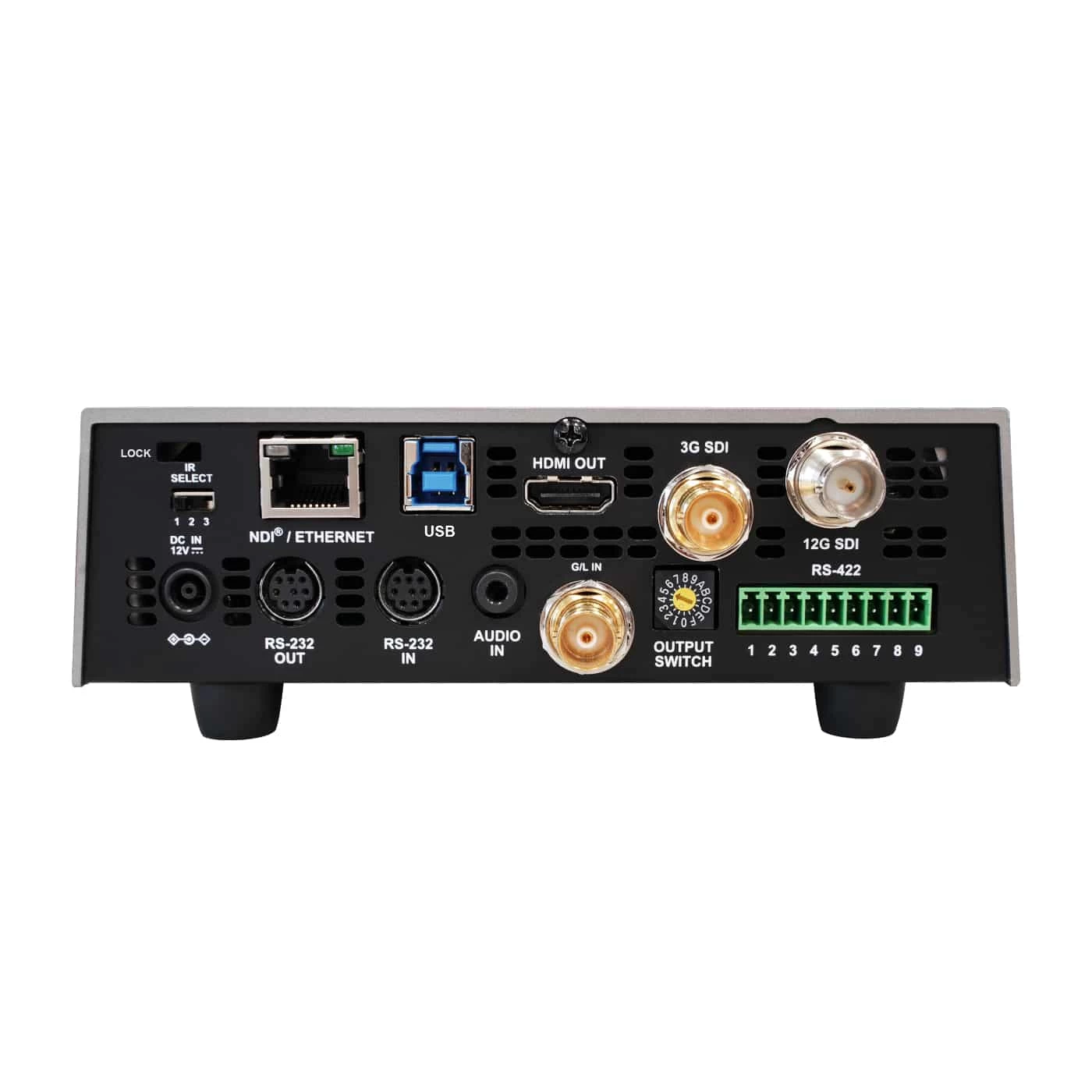

Video I/O	1x HDMI Output 1x BNC (3G-SDI) Output 1x BNC (12G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output 1x RJ45 Input/Output
Other I/O	1x BNC (Genlock) Input 1x DIN 8-Pin (RS-232) Input 1x DIN 8-Pin (RS-232) Output 1x Block 9-Pin (RS-422)
PoE Support	PoE++ 802.3bt
Mounting	1x 1/4″-20 Female for Tripod
Security Lock Support	Kensington Lock Slot
Dimensions (W x H x D)	188 x 232 x 189 mm
Weight	3 kg (Body Only)

INCLUDED BY DEFAULT

• Lumens VC-A71SN-W UHD 4K NDI/12G-SDI PTZ Camera (Black)
• Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• 2 x Metal Plate
• Set of M3 Screws
