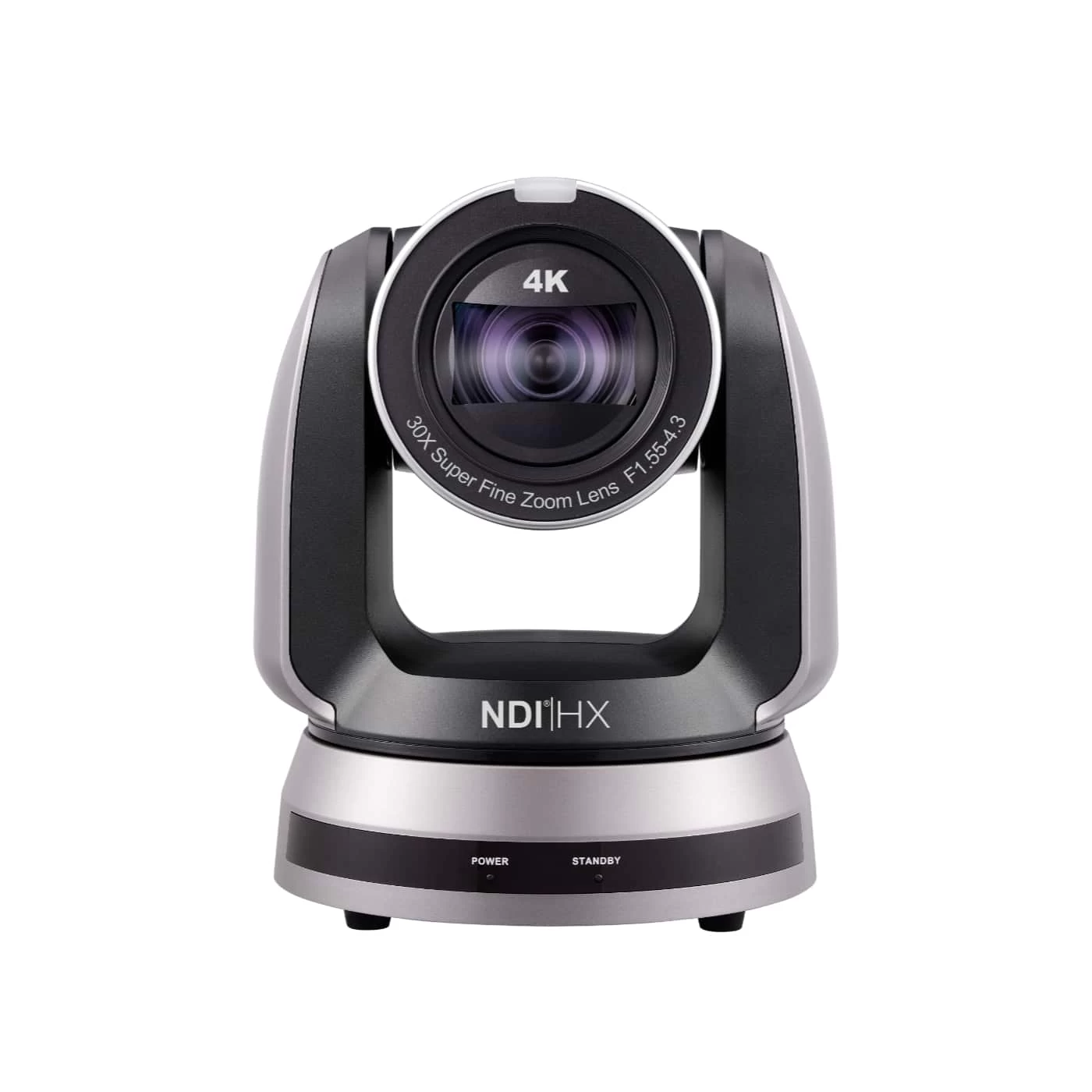

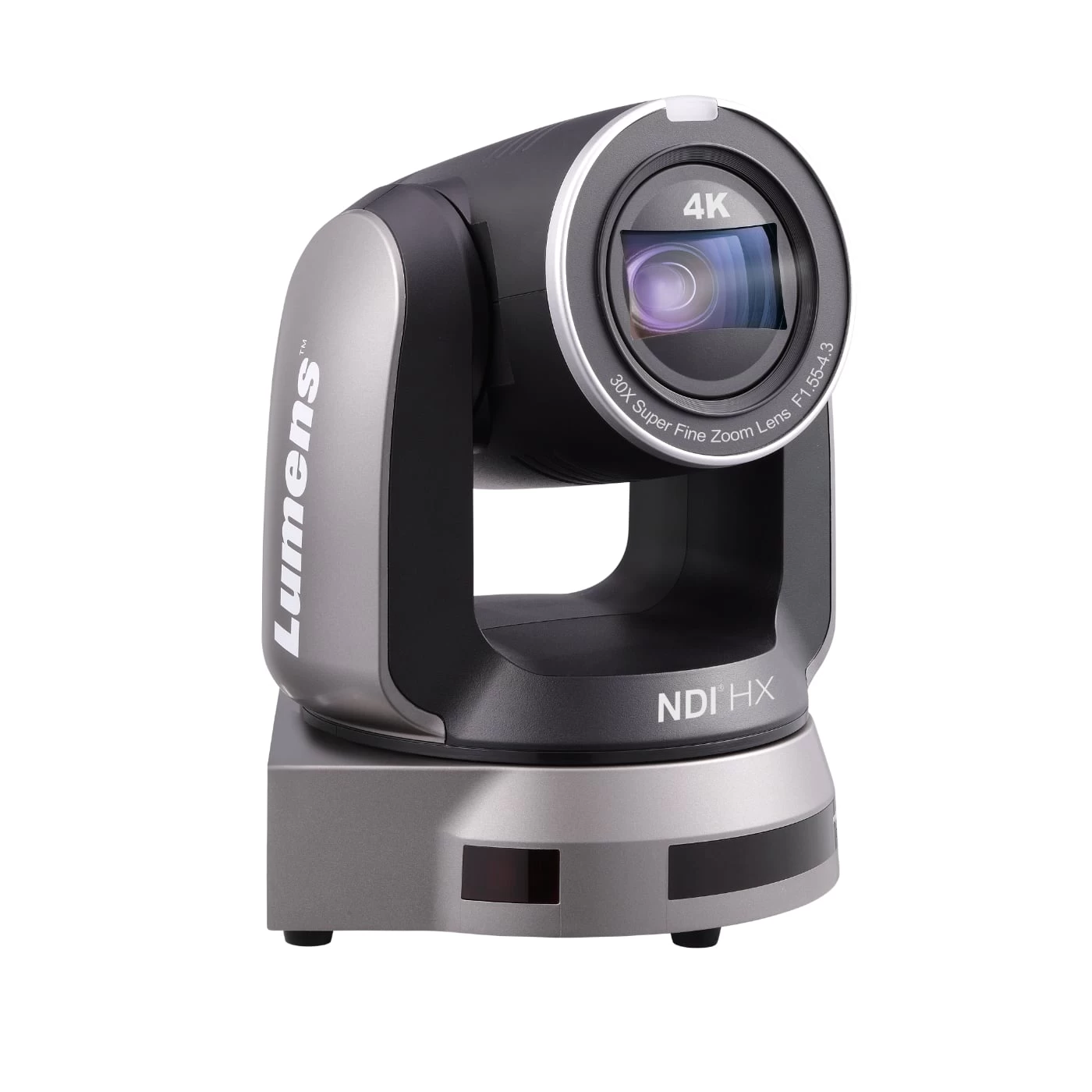

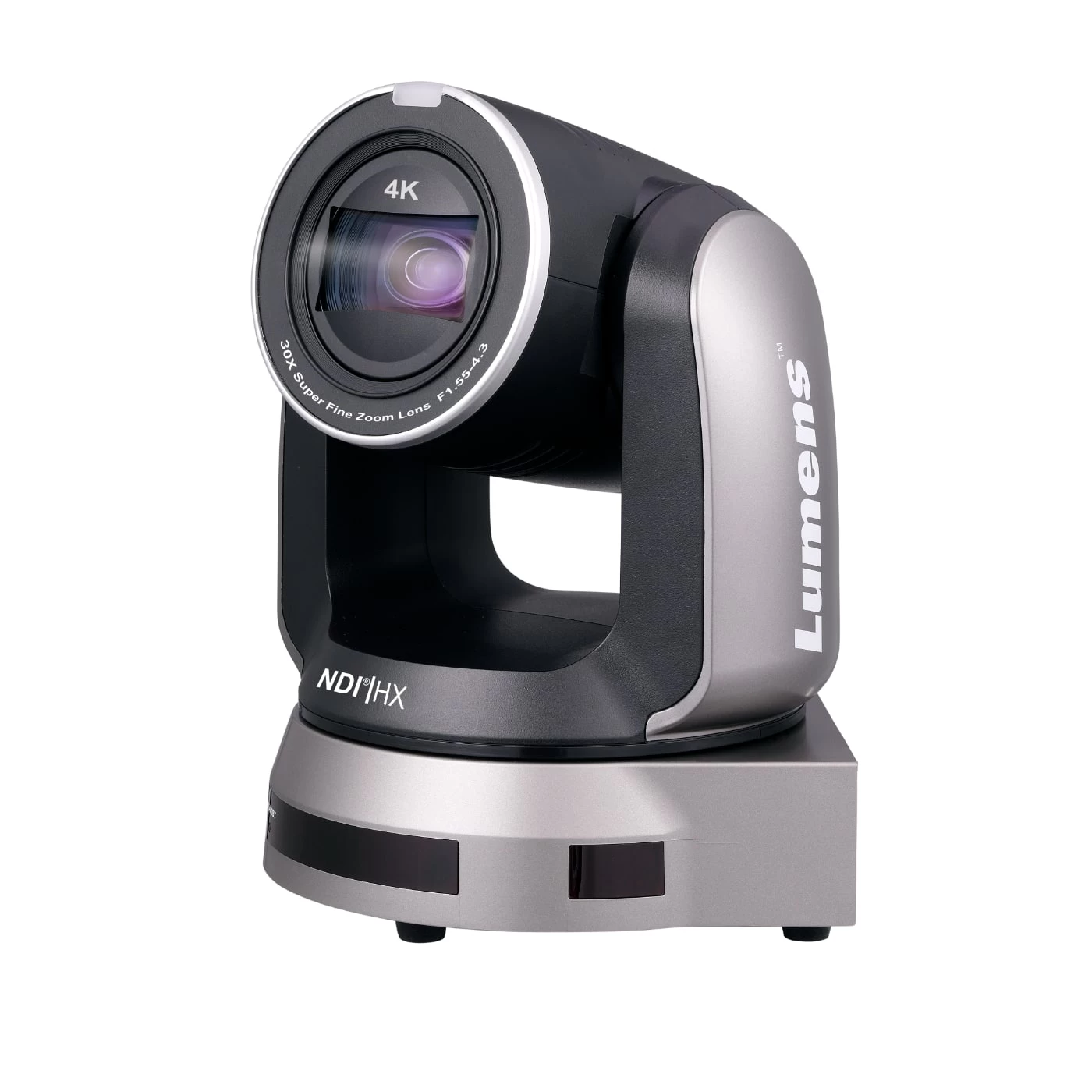

Lumens VC-A71PN 4K60 NDI 30x Optical Zoom PTZ Camera

The Lumens™ VC-A71PN 4K Ultra HD PTZ camera is equipped with a professional 1/1.8-type progressive scan CMOS sensor with 8 megapixels output resolution that delivers a superb clear and vivid live image. The superior 30x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness of a conference room. The camera covers wide shooting angles and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. The VC-A71PN PTZ camera has Ethernet, HDMI 2.0 outputs. It
supports live broadcasting with H.264 / HEVC format. The VC-A71PN is an applicable solution for lecture recording, videoconferencing, and live
broadcasting applications.

The lumens camera can also be used with Skaarhoj PTZ Pro.

KEY FEATURES

• 4K UHD 60fps and 1080p 60fps video signal output format
• 30x optical zoom, 63° horizontal field of view
• NDI®|HX
• HEVC / H.264 format
• HDMI 2.0 / Ethernet
• Up to 256 user defined preset modes to allow ease of use in all
  environments
• Maximum horizontal/vertical speed of rotation: 300° /sec
• Wide Pan/Tilt/Zoom mechanism:
• Horizontal viewing angle: -170° to +170°
• Tilting angle up to 90°, and down to -30°
• Supports Power Over Ethernet (PoE+)

SPECIFICATIONS LUMENS VC-A71PN

Model	VC-A71PN
Sensor	1/1.8″ 9.17MP CMOS
Video Format	Resolution : 4K / 1080p / 720p Frame Rate : 59.94 / 50 / 29.97 / 25
Video Output (HD)	HDMI 2.0 / Ethernet
Optical Zoom	30x
Digital Zoom	12x
Horizontal Viewing Angle	68°
Panning Angle	+170 68°~ 170°
Panning Speed	300°/sec
Tilting Angle	+90 ~ -30°
Tilting Speed	300°/sec
Aperture	F1.6 ~ F4.8
Focal Length	6.5mm ~ 202mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide/Tele)
Video S/N Ratio	> 50dB
Minimum Illumination	0.05 lux (F1.6, 50IRE, 30fps)
Focus System	Auto, Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Multiple Video Stream	HEVC 4K60fps H.264 640×360 30fps * HDMI output 1080i60, NDI streams 1080p60
Audio Compression Format	AAC
Control Interface	RS-232 / RS-422 / Ethernet /
Control Protocol	VISCA / PELCO D / NDI
Tally Light	Yes
PoE	PoE+ (IEEE802.3at)
Video Stream	NDI
Video Compression	HEVC / H.264 / MJPEG
Audio Input	Line In/MIC In , Phone Jack 3.5mm x1
Audio Output	Ethernet / HDMI 2.0
IR pass-through	yes
IR receiver	yes
IR Remote Control	yes
DC In	12V +/- 20%
Power consumption	PoE : 17.5 W DC In : 16 W
Weight	6.6lbs (3 kg)
Dimension	9.1″ x 7.4″ x 7.4″ (232 x 188 x 189 mm)



INCLUDED BY DEFAULT

• Lumens VC-A71PN
• Instruction for installation
• IR Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• Metal plate A + B
• M3 screws
