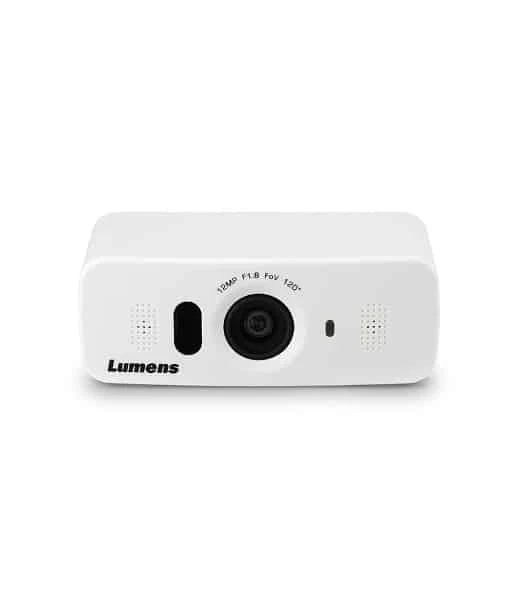

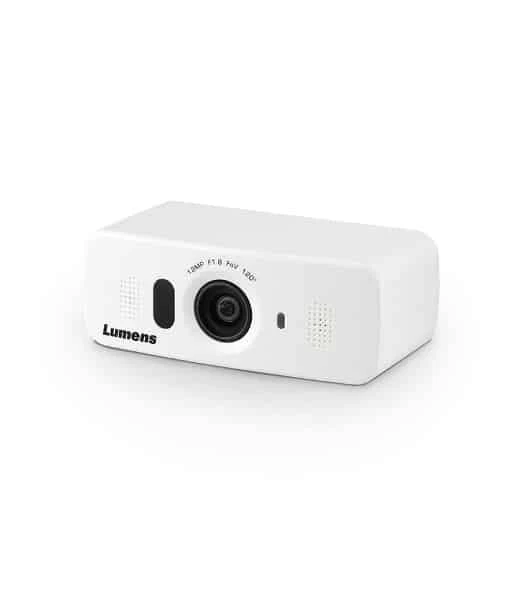

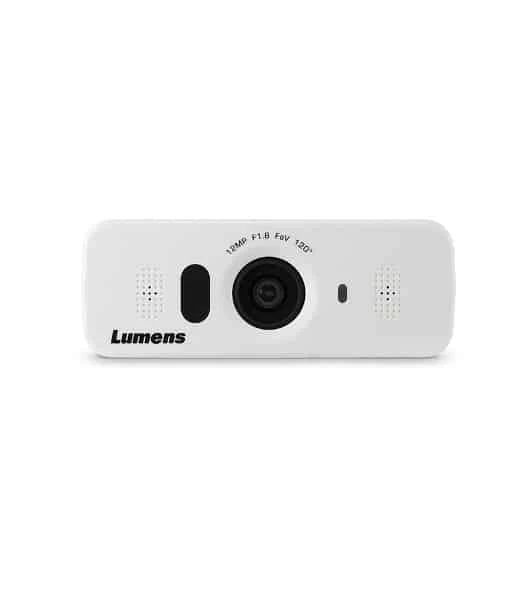

Lumens VC-B10U HD ePTZ Camera

The white Lumens VC-B10U ePTZ Camera is an HD camera well suited for small meeting rooms as well as classrooms and distance learning. It connects to your computer via USB 3.0 (USB 2.0 compatible) and supports UVC and UAC video, which makes it a simple plug-and-play video conference solution. A 120° viewing angle makes it well suited for use in small rooms. If you need to zoom in on an image, the camera offers 2x lossless zoom functionality in 1080p, with an additional 8x digital zoom.

The two built-in microphones provide good pickup of the audio in a room, while alleviating the need to set up external mics. The camera can support up to 64 position presets, and it can be controlled by IR remote or over USB. An included mounting shelf supports the camera so it does not have to sit on top of a table.

Features

• 1920 x 1080 Video up to 30 fps
• USB 3.0 Plug and Play
• 120° Viewing Angle
• 2x Lossless Zoom in 1080p
• 8x Digital Zoom
• Built-In Microphone
• Up to 634 Position Presets
• Control via IR Remote or USB
• Includes Mounting Shelf

Specifications

Sensor	1/2.3” 12 MP CMOS
Video Output	3264×2448 10fps 3264×1836 10fps 1920×1080 30 fps 1280×720 60 / 30 fps 960×540 30 fps 640×480 30 fps 640×360 30 fps
Aperture	F1.8
View Angle	120° (Diagonal), 110° (Horizontal)
Minimum Object Distance	50 cm
Remote Control	Yes
Zoom (Lossless)	2x for 1080p (1920×1080) 3x for 720p (1280×720) 4.8x (640×480)
Digital Zoom	8x
Camera Control Interface	IR remote control / USB
Driver	UVC／UAC
ePTZ	Support
Preset Positions	IR: 6 Sets USB: 64 sets
Video Format	YUV / MJPEG
Video Output (HD) Interface	USB 3.0 (USB 2.0 Compatible)
Microphone	Yes, Built-in
White Balance	Manual / Auto
Exposure Control	Auto
Brightness Control	Yes
Back Light Comp	On / Off
Focus System	Fixed Focus
2D Noise Reduction	Yes
TV Mount	Built-in
Weight	Main Unit : 120g Main Unit & Shelf : 180g
