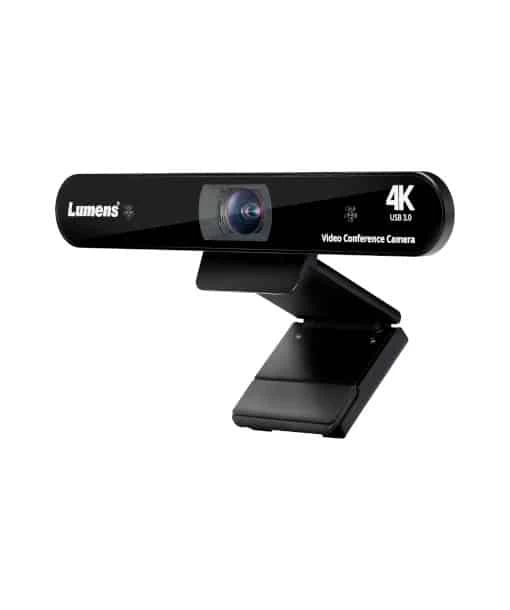

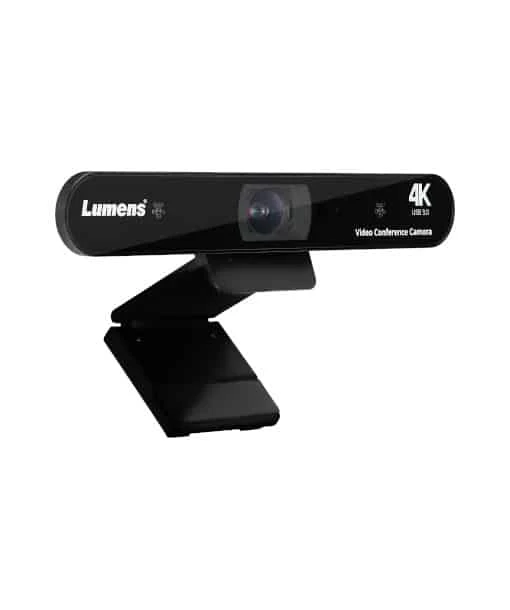

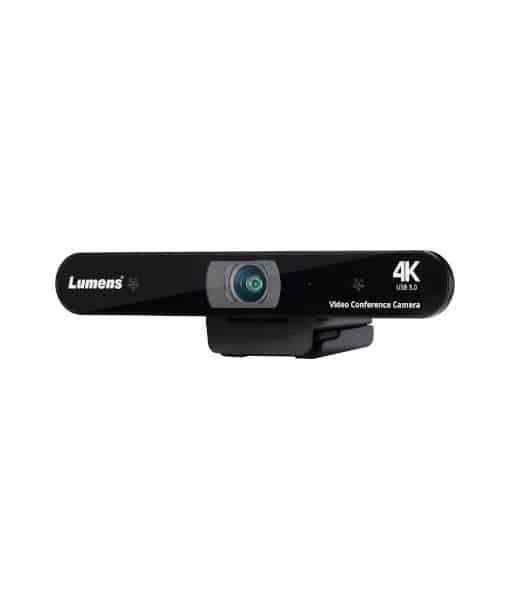

Lumens VC-B11U 4K Video Conference Camera with Built-in Mic and Auto framing

The Lumens® VC-B11U delivers brilliantly sharp and exceptional video with 4K Ultra HD image quality. The VC-B11U’s genius auto framing function can automatically frame all participants in a perfect view. It features
120° field-of-view wide-angle providing an excellent visual collaboration experience. Thanks to its built-in two Omni-directional microphones, it can capture crystal-clear voice. It’s applicable for video conference with 3-10 participants in the small-to-medium size room.

KEY FEATURES

• Clear images with 4K sensor, fixed-lens, and WDR
• Effectively capture human voice up to 5 meters
• Hands-free auto framing to include all participants in a perfect view
• Easily control the camera by a mini remote controller or software

SPECIFICATIONS LUMENS VC-B11U

Model	VC-B11U
Sensor	1/2.8″ 8.57MP CMOS
Video Format	3840×2160 30/25 fps 1920×1080 30/25 fps 1280×720 30/25 fps 640×360 30/25 fps
Video Output (HD)	USB 3.0 Type C (USB 2.0 Compatible)
Pixel Zoom	1080p: 2x / 720p: 3x
Digital Zoom	16x
Horizontal Viewing Angle	120°
PTZ	ePTZ
Auto Framing	Yes (1080p and below)
Auto Framing Maximum Distance	5 meters
Aperture	F 2.2
Focal Length	f=2.1mm
Shutter Speed	1/30 ~ 1/10,000 sec
Minimum Object Distance	500 mm
Video S/N Ratio	> 50dB
Minimum Illumination	10 lux
Gain Control	Auto, manual
White Balance	Auto, manual, one push
Exposure Control	Auto, manual, Shutter Pri
WDR	Yes
3D NR	Yes
2D NR	Yes
Image Flip	Mirror / Flip
Preset Positions	64
Control Interface	USB 3.0
Control Protocol	UVC/UAC
Video Compression	YUY2 / MJPEG / H.264 / NV12
Built-in Mic	2 Omni-directional Mics
Mic Effective Distance	5 Meters
IR receiver	yes
IR Remote Control	yes
Power consumption	<4.5W (5V @0.9A)
Weight	1.1 lbs (0.5kg)
Mounting	Tripod-Ready Universal Clip
Dimension	Without Clip: 1.2”x 8.3”x 1.4”(30 x 210 x 35 mm) With Clip: 1.9”x 8.3”x 2.9”(47.4 x 210 x 73.6 mm )

INCLUDED BY DEFAULT

• VC-B11U
• Instruction for installation
• Remote Control
• USB cable (USB 3.0 Type A to Type C)
