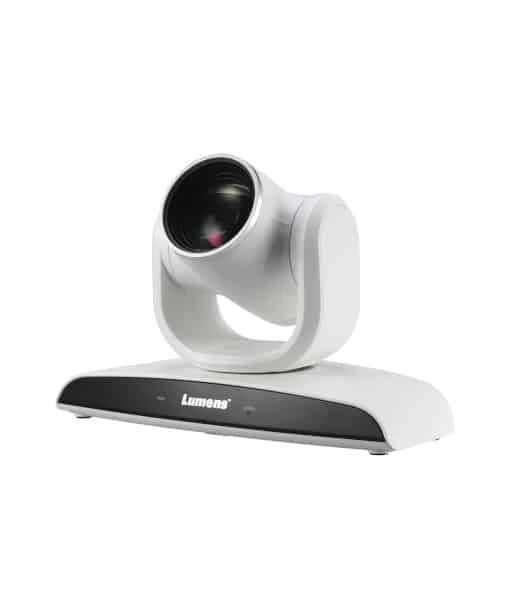

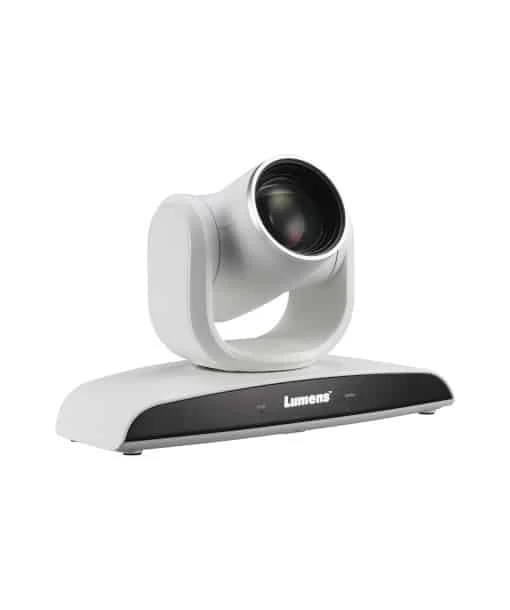

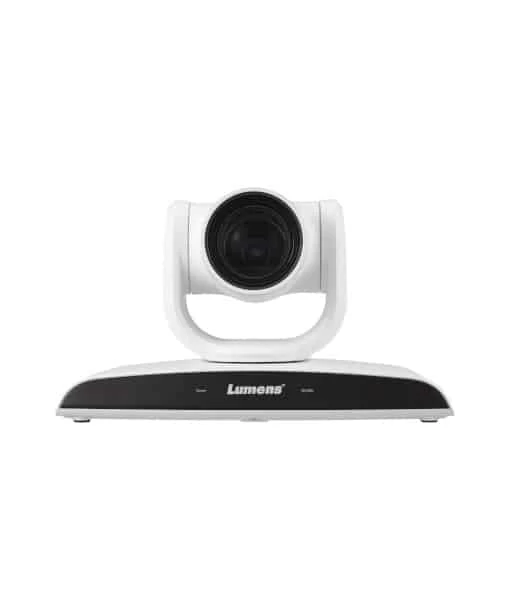

Lumens VC-B30U Full HD USB PTZ Camera



Lumens VC-B30U 12x Optical Zoom Full HD USB PTZ Camera (white)

The Lumens® VC-B30U HD Pan/Tilt/Zoom (PTZ) camera has USB 3.0 and HDMI video output interface. It is equipped with a Sony 1/2.8 inch image sensor with Full HD 1080p output resolution and a high dynamic image of 60 fps. The superior 12x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a conference room.

Easily combine the camera with the VC-AC03

KEY FEATURES

•  Zoom Certified USB camera and HDMI output
•  Equipped with a Sony 1/2.8 inch image sensor
• USB 3.0 and HDMI video output interface
• Full HD 1080p signal output format with a high frame rate of 60 fps
• 12x optical zoom is applicable for a medium size conference room
• Viewing Angle: 72°(H) 80°(D)
• Wide range Pan/ Tilt/Zoom actions: Pan angle from -100° to +100°; tilting angle from -30° to +30°
• Compatible with Barco ClickShare Conference

SPECIFICATIONS LUMENS VC-B30U

Model	VC-B30U White
Sensor	1/2.8″ 2.41MP CMOS
Video Format	HDMI: 1080p 60/50 fps ; 720p 60/50 fps USB: 1080p 30/25 fps ; 720p 30/25 fps

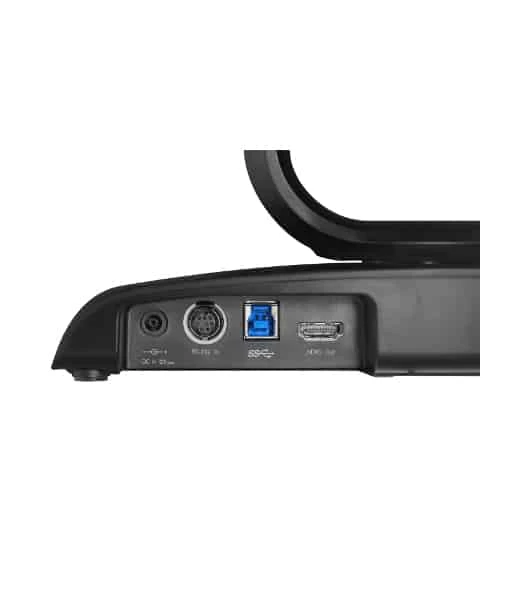

Video Output (HD)	HDMI, USB 3.0
Optical Zoom	12x
Digital Zoom	12x
Viewing Angle	72°(H) 80°(D)
Panning Angle	+100° ~-100°
Panning Speed	100°/sec
Tilting Angle	+30 ~ -30°
Tilting Speed	100°/sec
Aperture	F1.6 ~ F2.8
Focal Length	3.92mm ~ 47.32mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	500(Wide) ~ 1500(Tele) mm
Video S/N Ratio	> 50dB
Minimum Illumination	1.6lux (F1.8, 50IRE, 60fps)
Focus System	Auto, Manual
Gain Control	Auto, manual
White Balance	Auto, one push, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	128
Video Stream	YUV422 / MJPEG
Control Interface	RS-232 In and Out / USB
Control Protocol	VISCA / UVC
IR pass-through	yes
IR receiver	yes
IR Remote Control	yes
DC In	12V +/- 20%
Power consumption	< 13W
Weight	2.9 lbs (1.3 kg)
Dimension	10.6” x 4.8” x 6.2”(267.8 x 123 x 156.1 mm)



INCLUDED BY DEFAULT

• Instruction for installation
• Remote Control
• Power Cord
• Power Adapter
• USB3.0 cable
• HDMI cable
