Lumens VC-BC301P 4K IP POV Camera

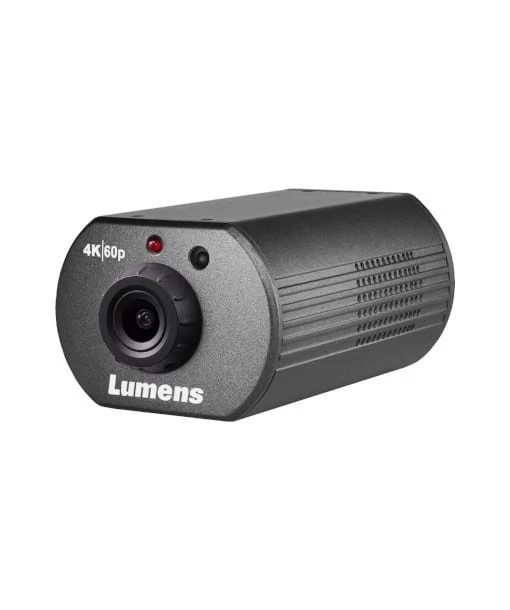

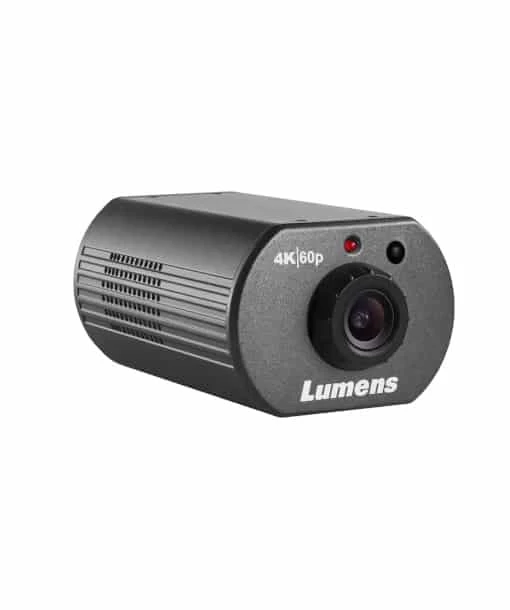

The Lumens® VC-BC301P is a 4K Ultra-HD IP POV camera built with a 1/1.8-inch high sensitive sensor that delivers an ultra-clear and crisp image at 60fps. It supports the following features 102° wide viewing
angle, tally light, and PoE. With its robust and compact design, the VC-BC301P can be integrated into any environment including broadcasting, houses of worship, e-sports, and conference halls.

KEY FEATURES

• High Quality 4K 60fps Images

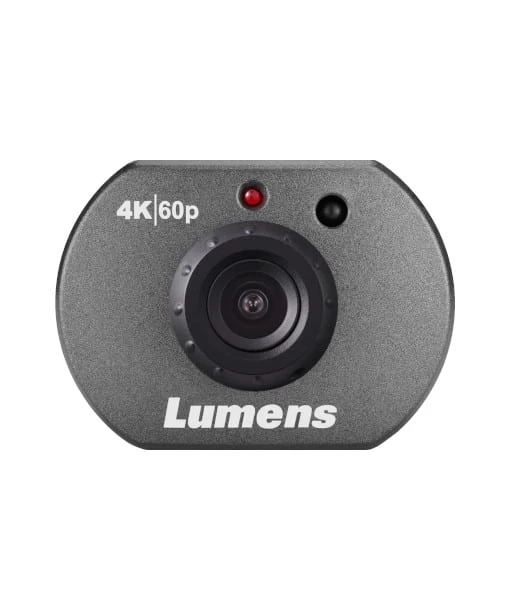

• Compact Design with Tally Light
• 102° Wide Viewing Angle

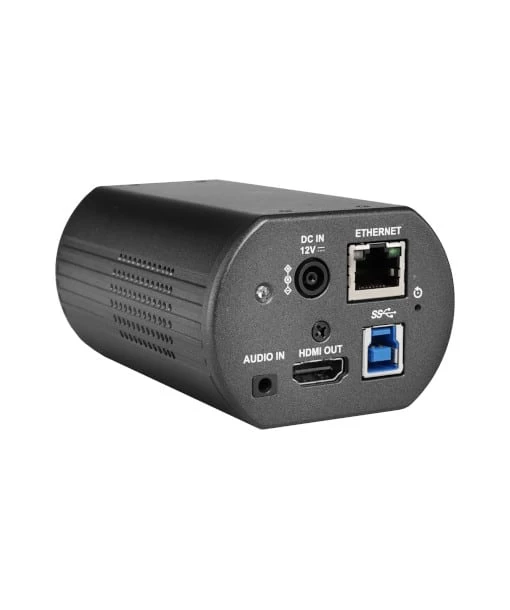

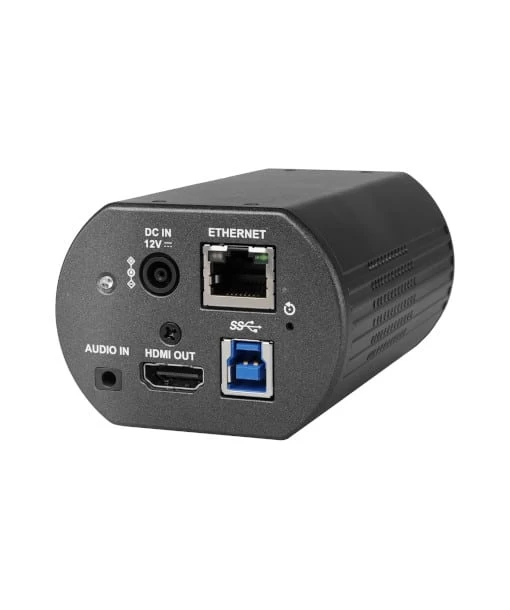

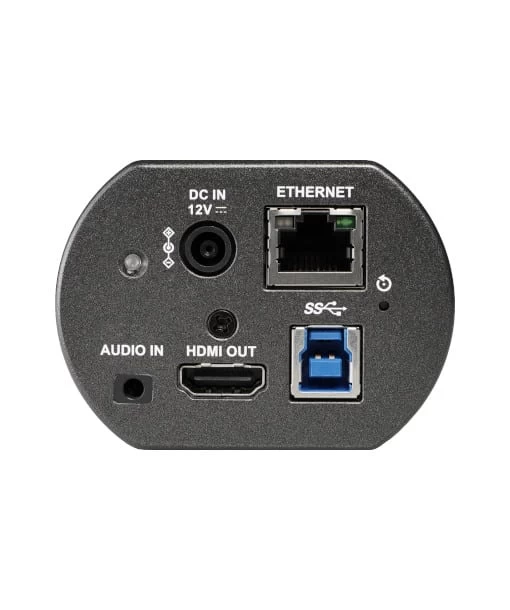

• HDMI, Ethernet, and USB3.0 Video Outputs

SPECIFICATIONS LUMENS VC-BC301P

Model	VC-BC301P
Sensor	1/1.8″ 9.17 MP CMOS
Video Format	Resolution : 4K / 1080p / 720p Frame Rate : 59.94 / 50 / 29.97 / 25
Video Output (HD)	HDMI 2.0, Ethernet, USB 3.0 (USB 2.0 compatible)
Pixel Zoom	1080p: 2x / 720p: 3x
Digital Zoom	12x
Horizontal Viewing Angle	102°
PTZ	ePTZ
Aperture	F 1.6
Focal Length	f=4.57mm
Shutter Speed	1 ~ 1/10,000 sec
Minimum Object Distance	30 cm
Video S/N Ratio	> 50dB
Minimum Illumination	0.05 lux (F1.6, 50IRE, 30fps)
Focus System	Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Multiple Video Stream	HEVC 4K 59.94fps H.264 1080p 59.94fps H.264 640×360 29.97fps
Audio Compression Format	G.711 / AAC
Control Interface	Ethernet / USB
Control Protocol	VISCA over IP / ONVIF / UVC
Video Compression	YUY2 / MJPEG / H.264 / NV12
Tally Light	Yes
PoE	PoE (IEEE802.3af)
Video Stream	RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression	HEVC / H.264 / MJPEG
Audio In	Line In / Mic In (Phone Jack 3.5mm x1)
DC In	12V +/- 20%
Power consumption	PoE: 11W DC In: 10W
Weight	0.77lbs (350g)
Dimension	4.4″ x 2.8″ x 2.0″ (113 x 70 x 51 mm)

INCLUDED BY DEFAULT

• VC-BC301P
• Instruction for installation
• Power Cord
• Power Adapter

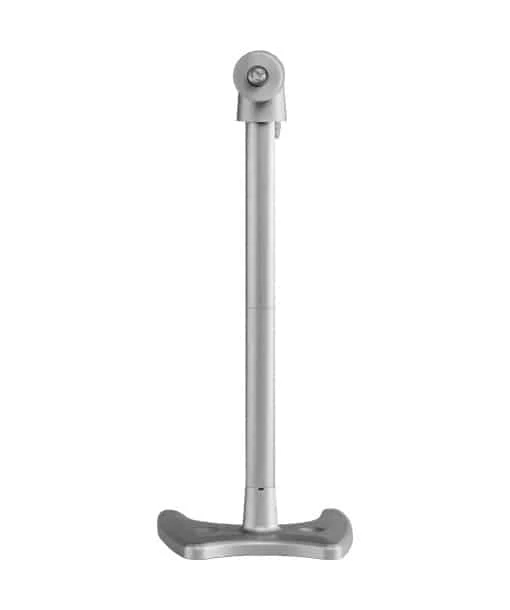

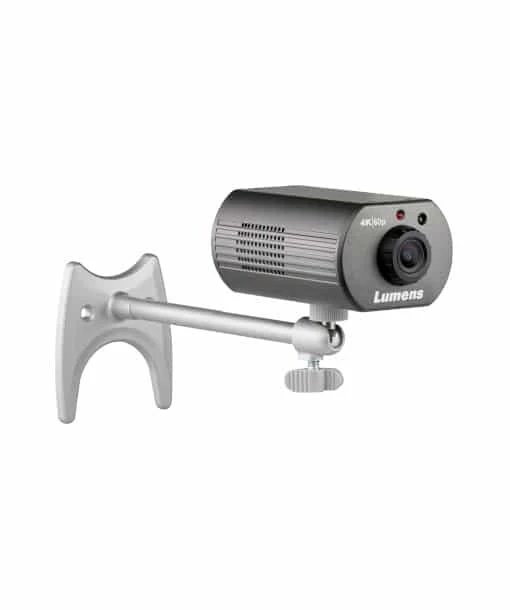

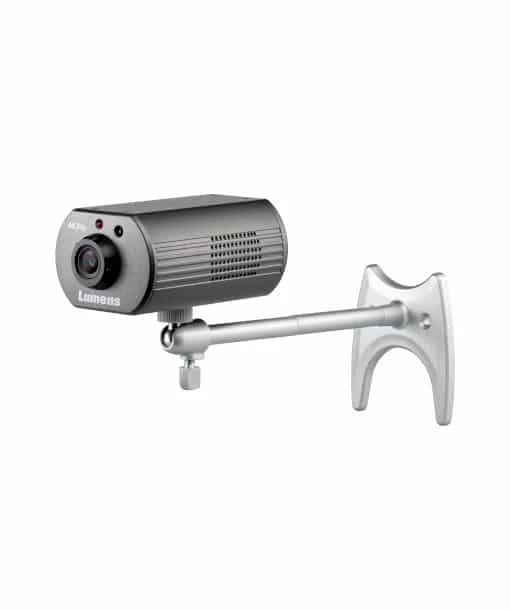

• Bracket Accessory Set
