Lumens VC-BC601P 1080p Box Camera



Lumens VC-BC601P 1080p Box Camera with 30x Optical Zoom

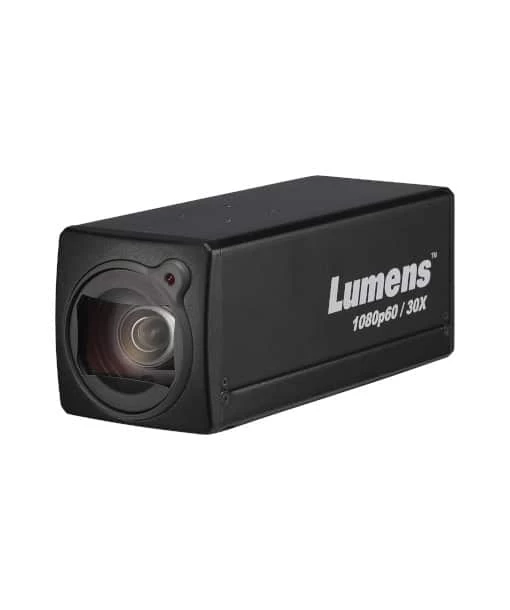

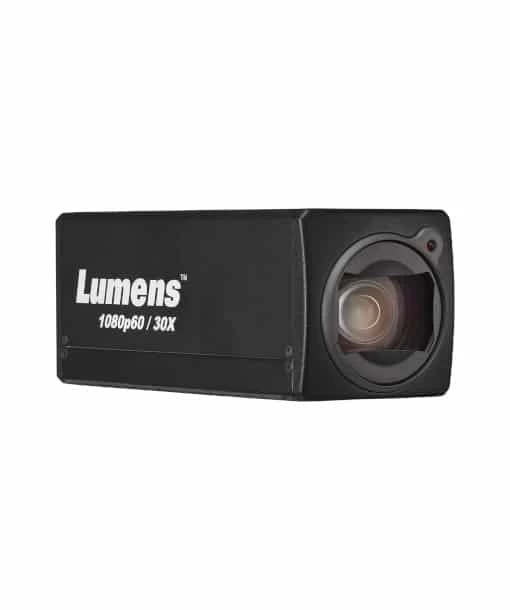

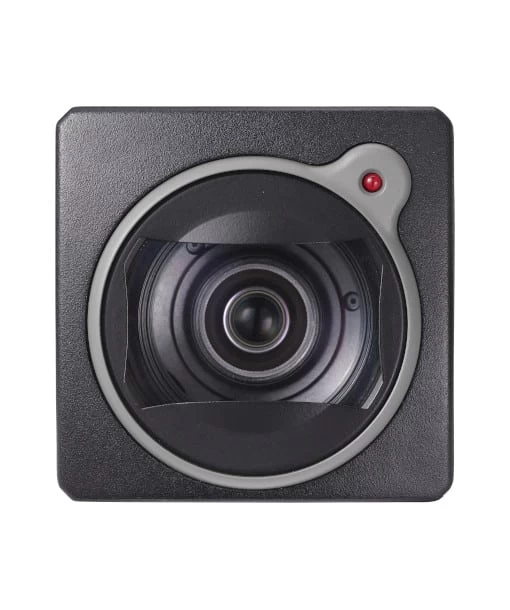

The Lumens® VC-BC601P is a 1080p 60fps and 30x optical zoom High Definition block camera. It contains HDMI 2.0, Ethernet, 3G-SDI output in a compact design and support triple stream and PoE, which is ideal for house of worship, education, sports production, broadcast television, news/weather-casts, corporate video, courtroom capture, live streaming, and a variety of ProAV applications.

KEY FEATURES

• 1080p 60fps
• 30x optical zoom, 68 degrees horizontal
  viewing angle
• HDMI, 3G-SDI and Ethernet video outputs
• Triple stream video, support HEVC / H.264
  format
• Supports RTSP / RTMP / RTMPS / MPEGTS / SRT streaming protocol
• Supports PoE (Power over Ethernet)
• Supports Line/MIC audio input



SPECIFICATIONS LUMENS VC-BC601P

Model	VC-BC601P
Sensor	1/2.5″ 8.57MP CMOS
Video Format	Resolution : 1080p / 720p Frame Rate : 59.94 / 50 / 29.97 / 25

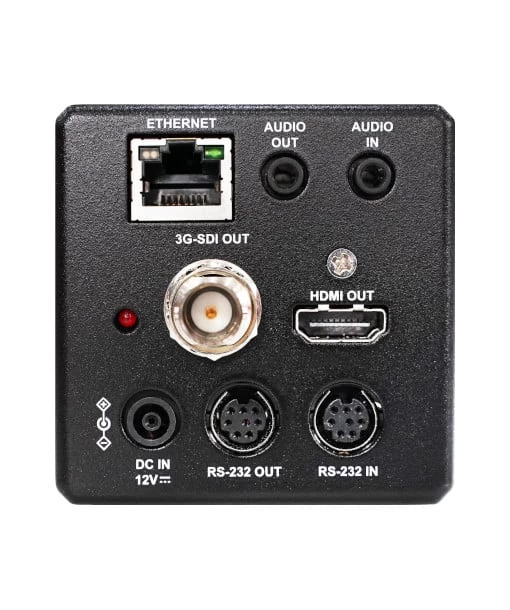

Video Output (HD)	3G-SDI / HDMI / Ethernet
Optical Zoom	30x
Digital Zoom	12x
Horizontal Viewing Angle	68°
Aperture	F1.6 ~ F3.4
Focal Length	4.6mm ~ 135mm
Shutter Speed	1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide/Tele)
Video S/N Ratio	> 50dB
Minimum Illumination	0.1 lux (F1.6, 50IRE, 30fps)
Focus System	Auto, manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Multiple Video Stream	HEVC 1080p 59.94fps H.264 1080p 59.94fps H.264 640×360 29.97fps
Audio Compression Format	G.711 / AAC
Control Interface	RS-232 / Ethernet
Control Protocol	VISCA / PELCO D / ONVIF
Tally Light	Yes
PoE	PoE (IEEE802.3af)
Video Stream	RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression	HEVC / H.264
Audio In	Line In / Mic In (Phone Jack 3.5mm x1)
Audio Out	Line Out (Phone Jack 3.5mm x1) Ethernet / SDI / HDMI
DC In	12V +/- 20%
Power consumption	PoE : 10.5W DC In : 9.5W
Weight	2.2lbs (1 kg)
Dimension	6.7″ x 2.6″ x 2.6″ (170 x 67 x 67 mm)



INCLUDED BY DEFAULT

• VC-BC601P
• Instruction for installation
• Power Adapter
