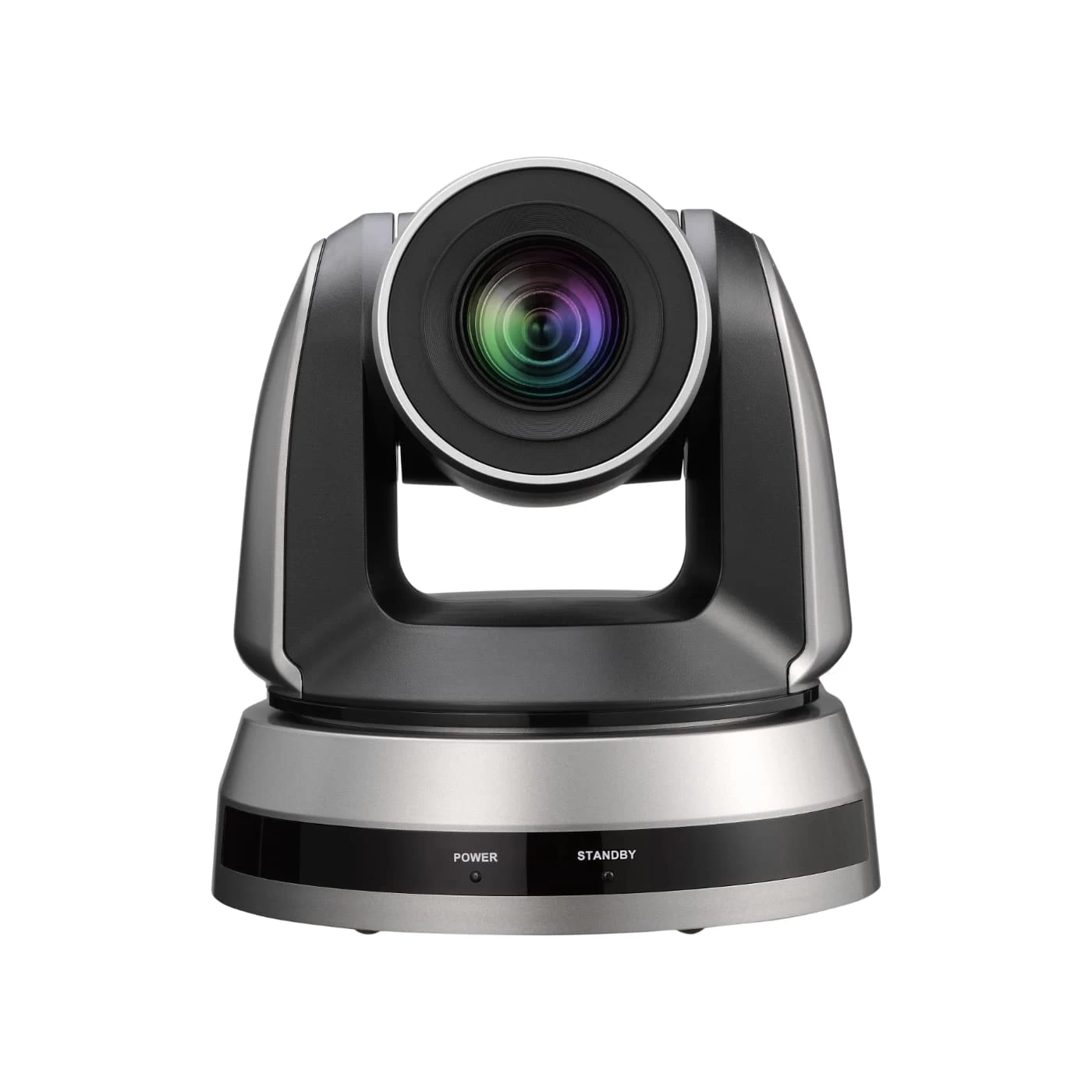

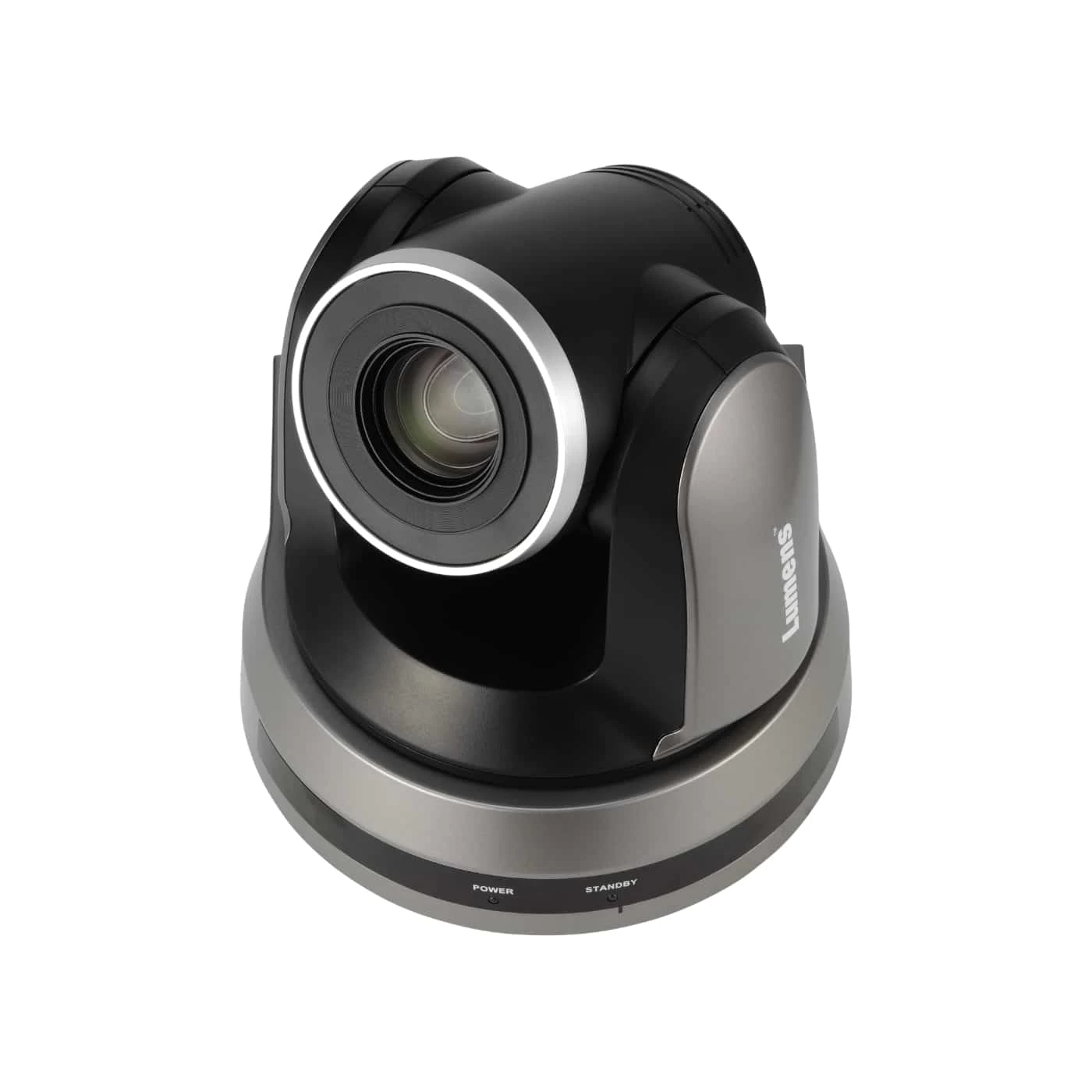

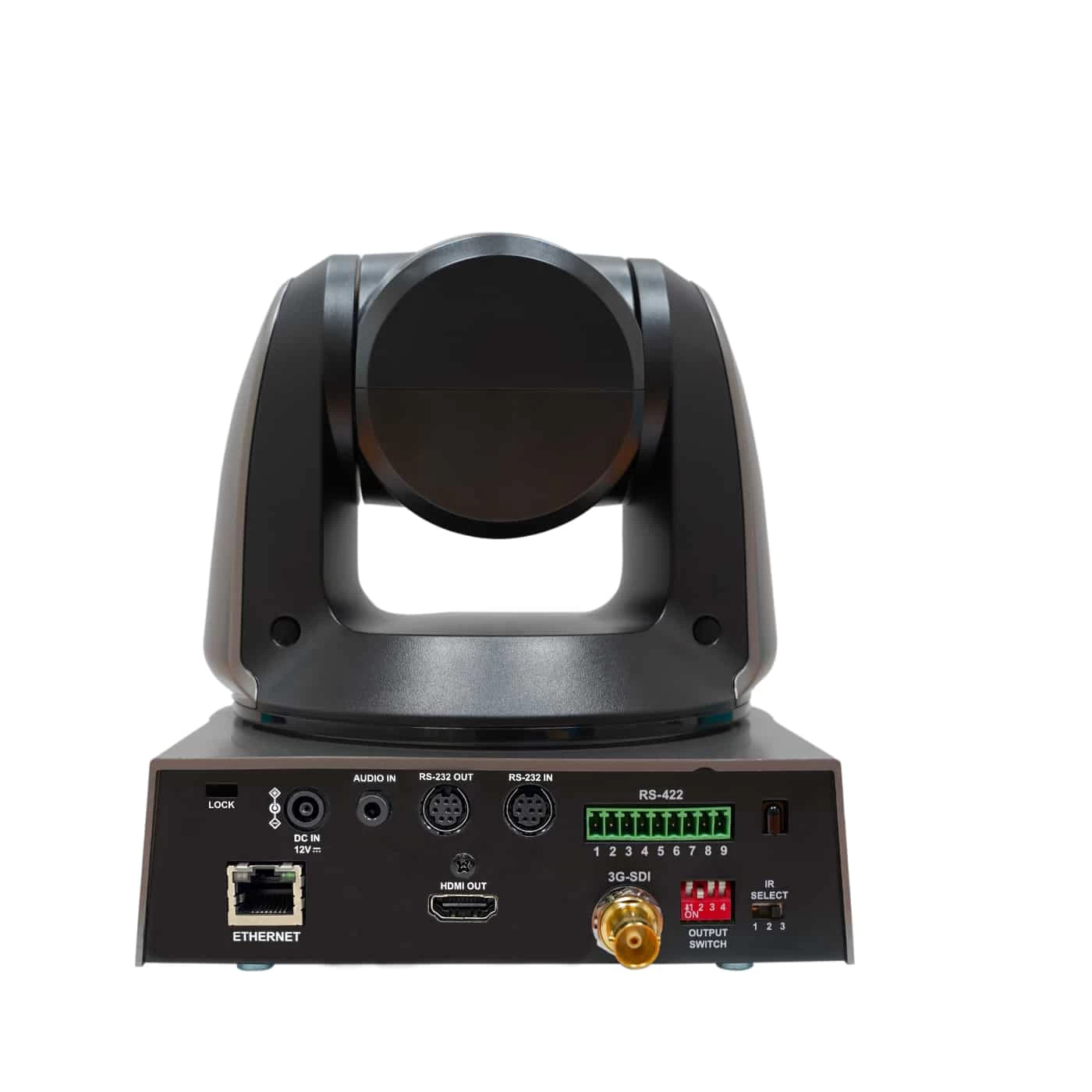

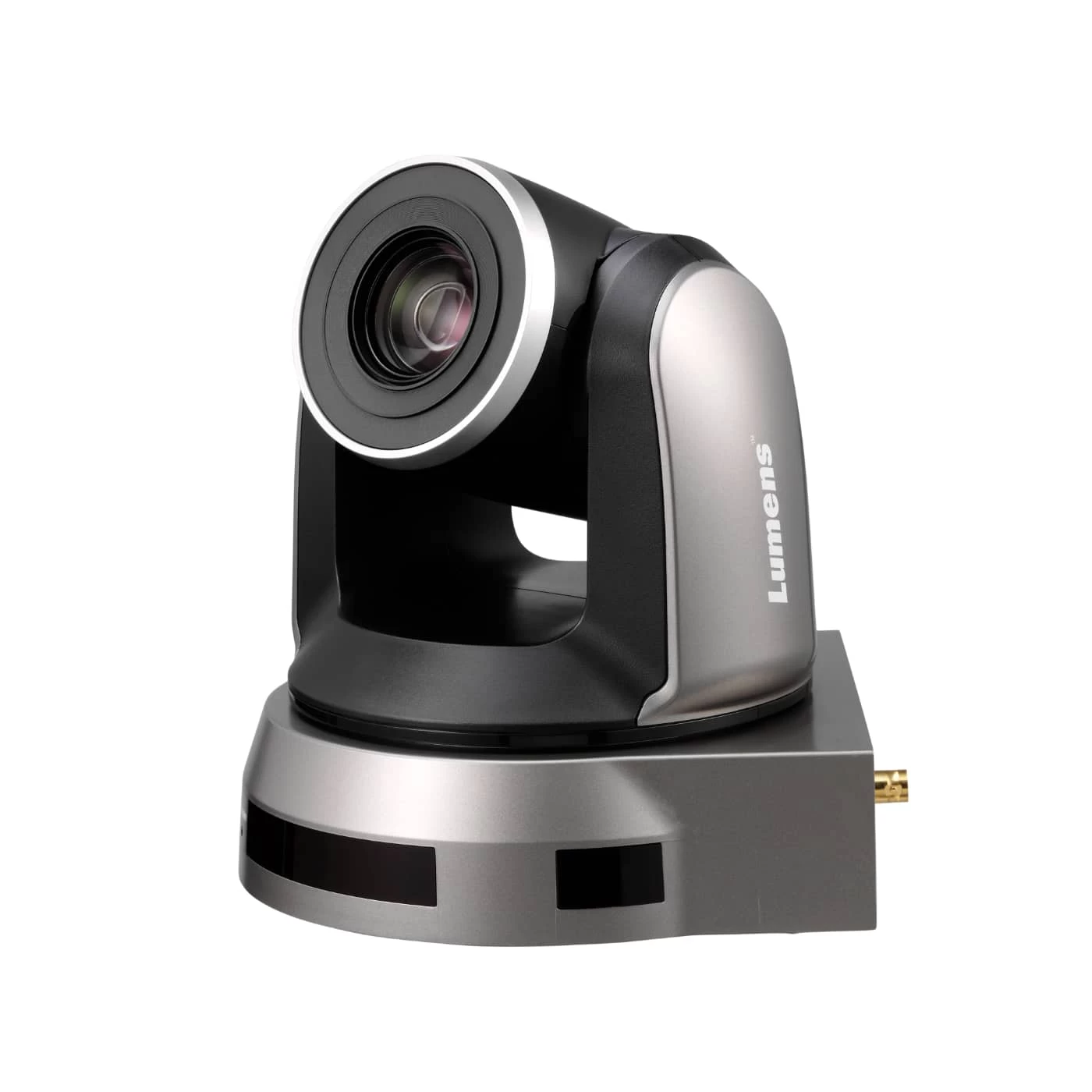

Lumens VC-TA50 AI Auto-Tracking PTZ Camera

The Lumens® VC-TA50 is a single lens auto-tracking camera. With its AI-powered tracking, the VC-TA50 can follow a subject smoothly and reliably, making it ideal for use in presentations, studios and classrooms. Programmable tracking modes give users the flexibility to allow the camera to track a subject automatically or only within specified zones. The camera also supports user-defined preset positions for instant switching between camera angles.

KEY FEATURES

• AI-Powered Human Face Recognition
• Three Tracking modes with auto framing
• Smooth Pan-Tilt-Zoom Movement
• Smart AF (The Smart AF feature keeps the presenter’s face in sharp focus even when they move across a stage. This advanced feature delivers fast, reliable, and accurate focusing performance)
• 1080P 60fps with 20x Optical Zoom
• HDMI, SDI, and Ethernet simultaneous output
• Supports RTSP / RTMP / RTMPS / SRT
• 5-year warranty*

TRACKING MODES

Everywhere Tracking Mode

The camera will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface.

Partition Tracking Mode

When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Stage Tracking Mode

When inside the Tracking Area, the camera follows the presenter with only a pan (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops following.



SPECIFICATIONS LUMENS VC-TA50

Camera
Model	VC-TA50
Sensor	1/2.8″ 2.16MP CMOS
Video Format	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50
Video Output (HD) Interface	3G-SDI / HDMI / Ethernet
Optical Zoom	20x
Viewing Angle	57° (H) / 32.1° (V) / 65.4° (D)
Aperture	F1.6 ~ F3.8
Focal Length	5.33mm ~ 110mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide / Tele
Video S/N Ratio	> 50dB
Minimum Illumination	1.0 lux (F1.6, 50IRE, 30fps)
Focus System	Auto / Manual / Smart AF
Gain Control	Auto / Manual
White Balance	Auto / Manual
Exposure Control	Auto / Manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
AR / VR Systems	FreeD
Tally Light	Yes
Auto-Tracking	Everywhere / Stage / Partition
Auto Framing	Yes
Network
IP Protocol	RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE	PoE+ (IEEE802.3at)
Pan & Tilt
Panning Angle	+170° ~ -170°
Panning Speed	300° / sec
Tilting Angle	+90° ~ -30°
Tilting Speed	300° / sec
Preset Positions	128
Output
HDMI / 3G-SDI	1080p60
IP Stream	First: H.264 1080p 60fps Second: H.264 / MJPEG D1 30fps
IP Compression	H.264 / MJPEG
Audio
Input	Lin-in / Mic-in
Output	Ethernet / SDI / HDMI
Compression Format	G.711
Camera Control
Interface	RS-232 / RS-422 / Ethernet
Protocol	VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
General
DC In	12V +/- 20%
Power Consumption	PoE: 18.5W DC In: 17W
Weight	4.4 lbs (2 kg)
Dimensions (W x H x D)	6.9″ x 7.3″ x 7.3″ (174 x 186 x 187 mm)



INCLUDED BY DEFAULT

• Lumens VC-VC-TA50 ( BLACK)
• Quick Installation Guide
• RS-232/RS-422 Connection Instruction
• IR Remote Control
• Power Cord
• Power Adapter
• RS-422 Connector
• Metal plate A + B
• M3 screws
