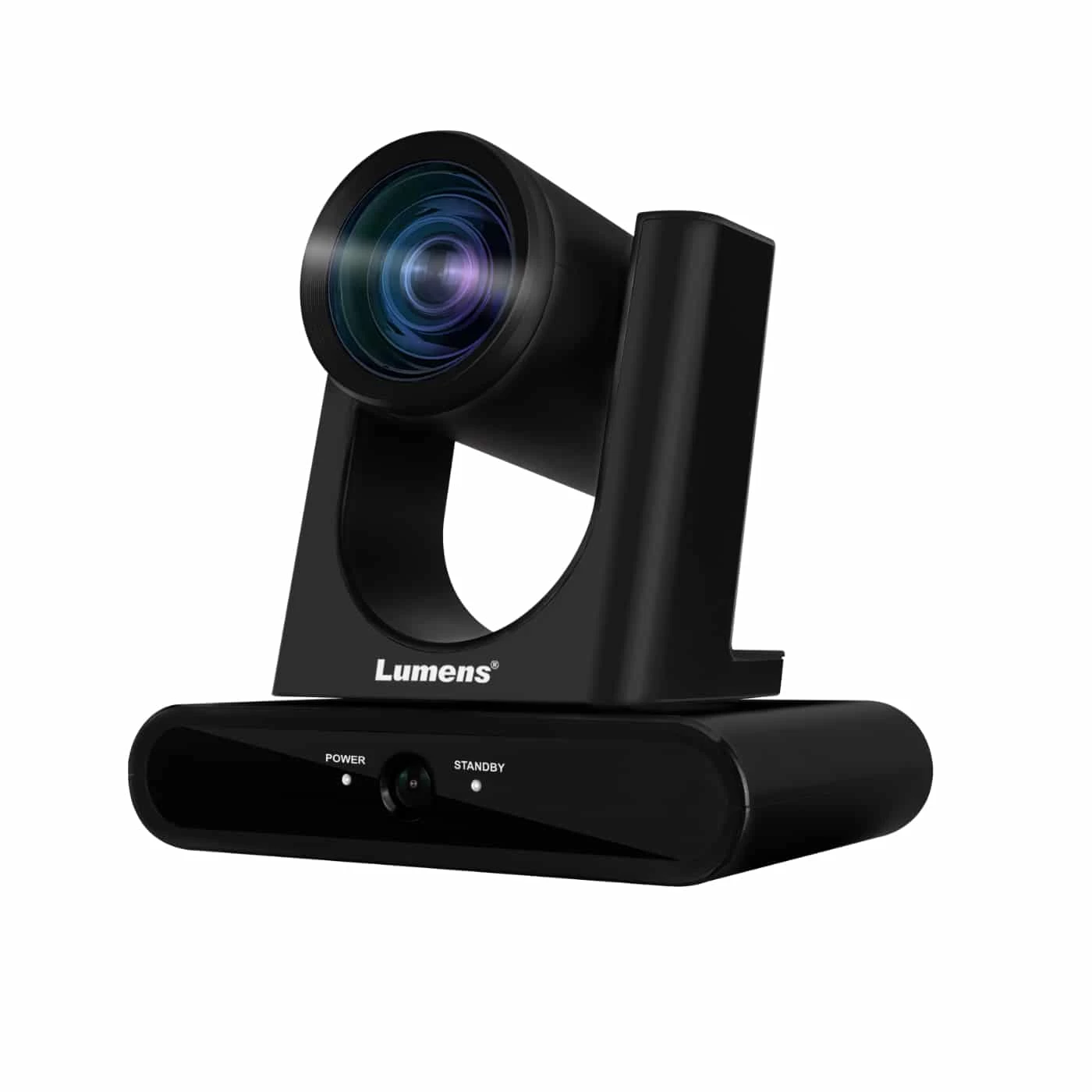

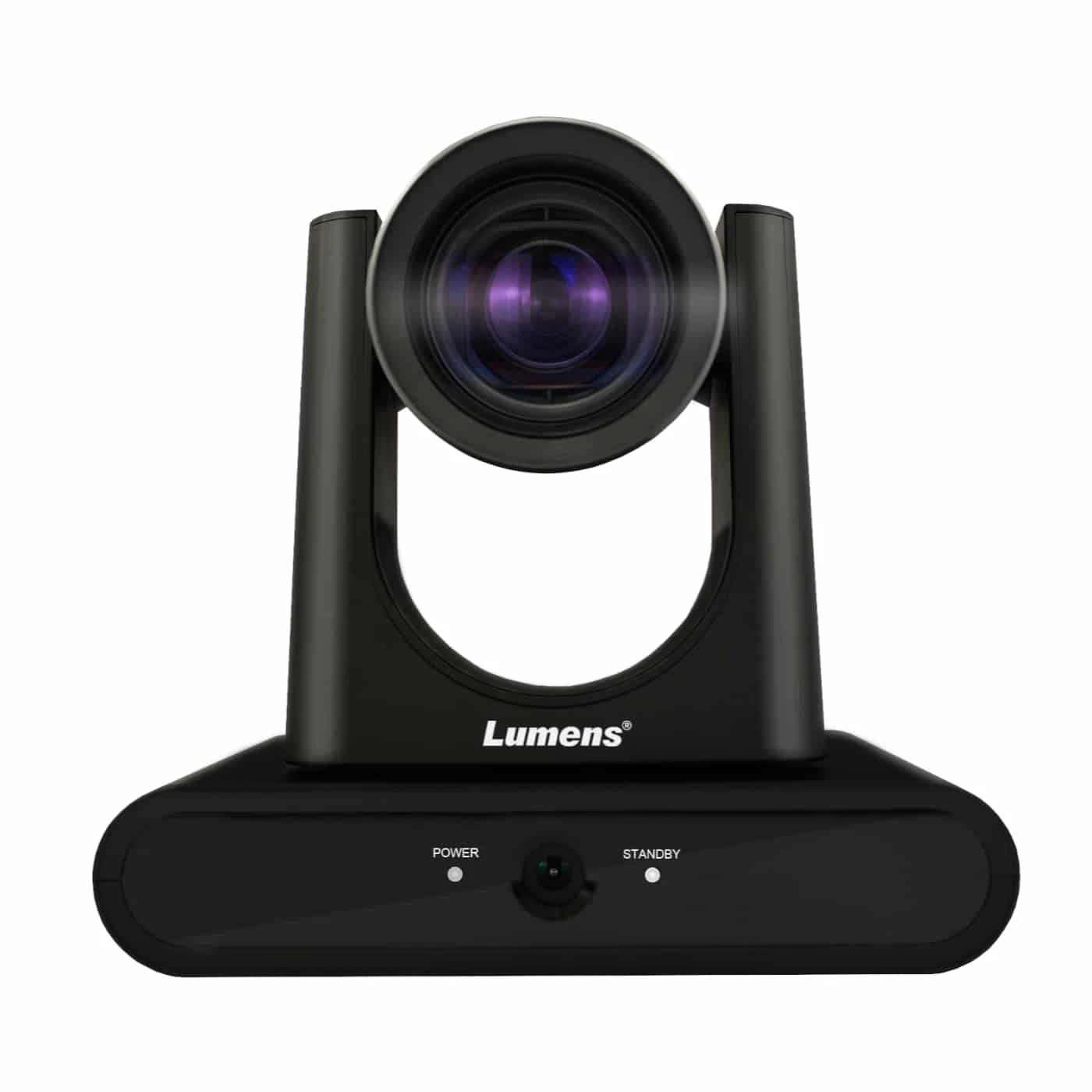

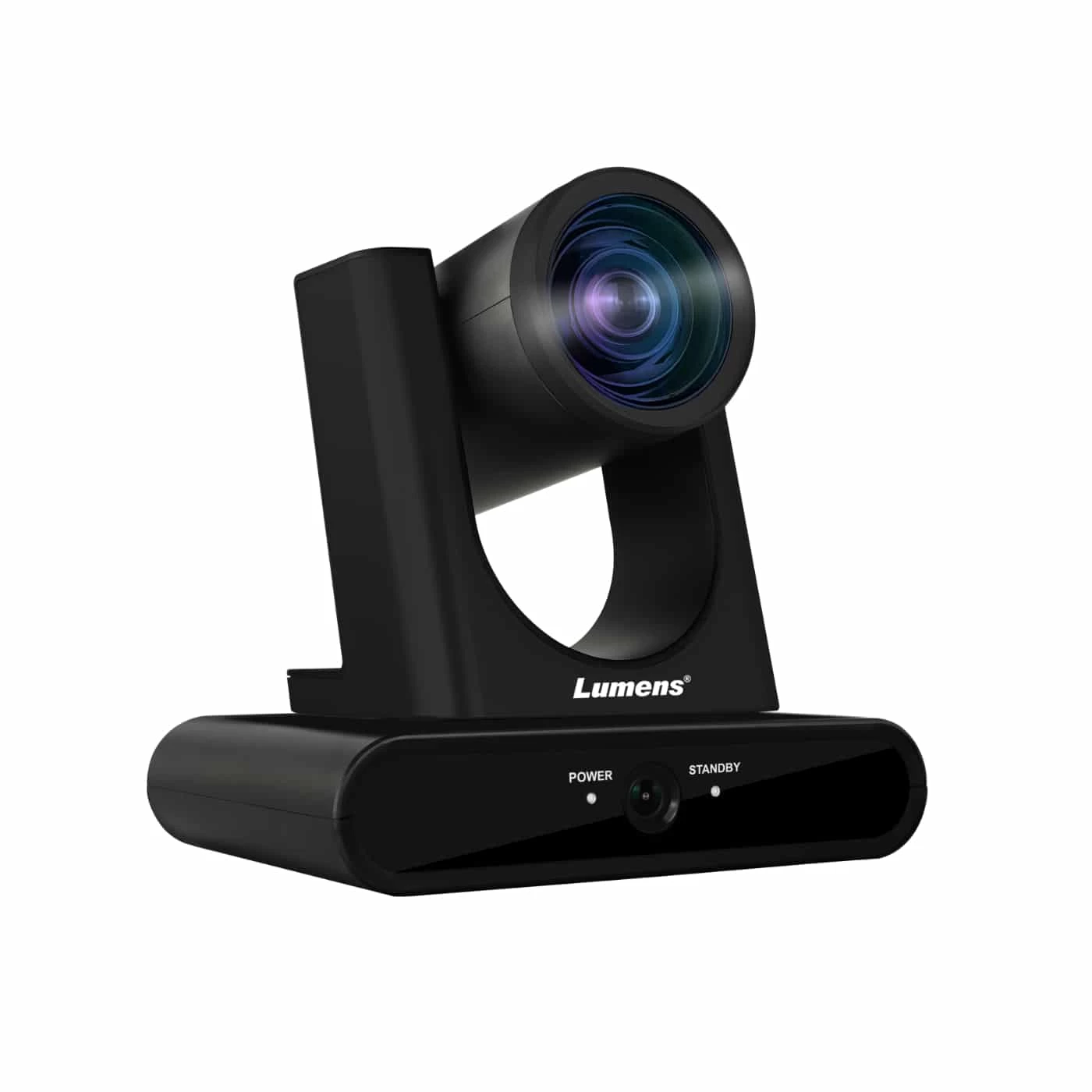

Lumens VC-TR30 AI Auto-Tracking Camera with 12x Optical Zoom (Black)

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the VCTR30 AI Auto-Tracking Camera with 12x Optical Zoom from Lumens. The compact camera features a 12x optical zoom lens, 12x digital zoom, and outputs simultaneously via HDMI, USB-B, or IP streaming, and it supports up to 1080p60 resolution. You can embed audio into your streams using the 3.5mm stereo analog audio input.

Automated Production

VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around those in the meeting room.

Flexible Lens

The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces, or presentations. It works in partnership with the high-sensitivity sensor to deliver high-quality video in all lighting conditions.

Gesture Control

The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Single Cable Installation

The VC-TR30’s Ethernet connection is multi-purpose. When connected to a PoE-enabled switch, the network cable can transport video, power, and control signals. This makes installation extremely quick and cost-effective.

KEY FEATURES

• Sony 1/2.8″ 2.16MP CMOS Sensor
• 1080p60 via HDMI, USB-B, IP Output
• 12x Optical Zoom, 12x Digital Zoom
• Streaming Video Output via Ethernet
• IP/VISCA/ONVIF/UVC/UAC Control
• Power-over-Ethernet (PoE) Support
• Up to 256 Presets, 3.5mm Audio Input

SPECIFICATIONS LUMENS VC-TR30

Power I/O1x Barrel (12VDC) Input

Camera
Model	VC-TR30
Sensor	1/2.8″-Type CMOS
Sensor Resolution	Effective: 2.16 Megapixel (1920 x 1080)
Shutter Speed	1/10000 to 25 Second
Optical Zoom	12x
External Recording Modes	HDMI / RJ45 / USB 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps
IP Streaming	H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 30p, 60p
Control Protocols	IP IR Pelco-D Pelco-P RS-232 VISCA
PoE Support	PoE 802.3af
Mounting	1x 1/4″-20 Female for Tripod
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 3000 to 8000K Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto
Focal Length	3.9 to 46.8mm
Field of View	Horizontal: 72.5° Vertical: 40.8° Diagonal: 83.2°
Maximum Aperture	f/1.6 to 2.8
Minimum Focus Distance	Telephoto: 4.9′ / 150.0 cm Wide: 3.3′ / 100.0 cm
Embedded Audio	HDMI/LAN (RJ45)/USB
IP Streaming	H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 30p, 60p
IP Multi-Stream Support	Simultaneous MP4: 720p at 30p
Presets	256 via IP, IR, RS-232, VISCA
Tally Light	Yes

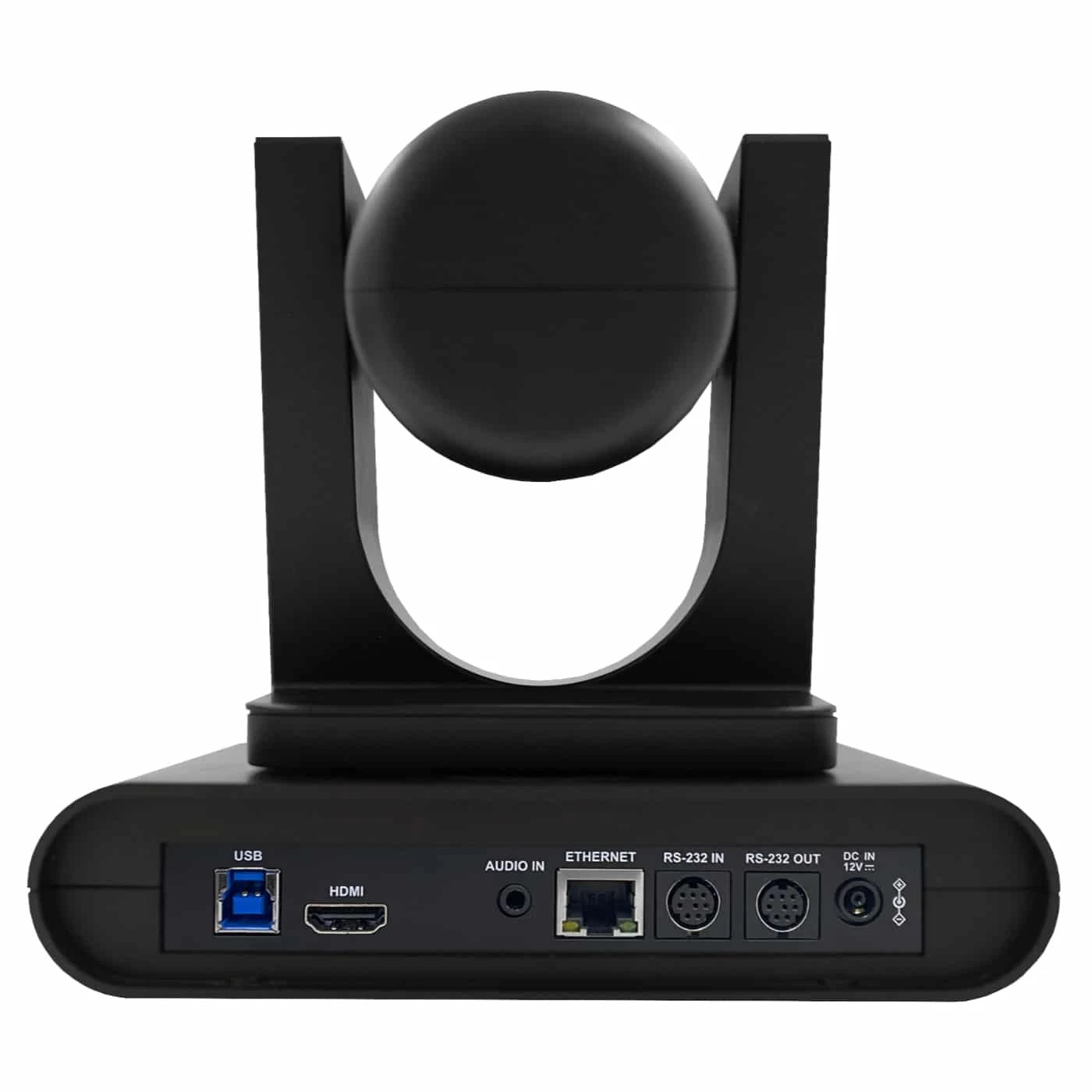

Video I/O	1x HDMI (Unspecified Signal) Output 1x USB-B 2.0 Output 1x RJ45 LAN Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input
Other I/O	1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1x RJ45 (LAN) Input/Output
PoE	PoE+ (IEEE802.3at)
Power Consumption	Device: 12 VDC 10 W PoE: 11 W
Weight	1.5 kg (Body Only)
Dimensions (W x H x D)	19 x 18.5 x 13.8 cm

INCLUDED BY DEFAULT

• Lumens VCTR30 AI Auto-Tracking Camera with 12x Optical Zoom (Black)
• Remote Control
• Power Adapter
• Power Cable
• USB-B to USB-A Cable (6.6′)
