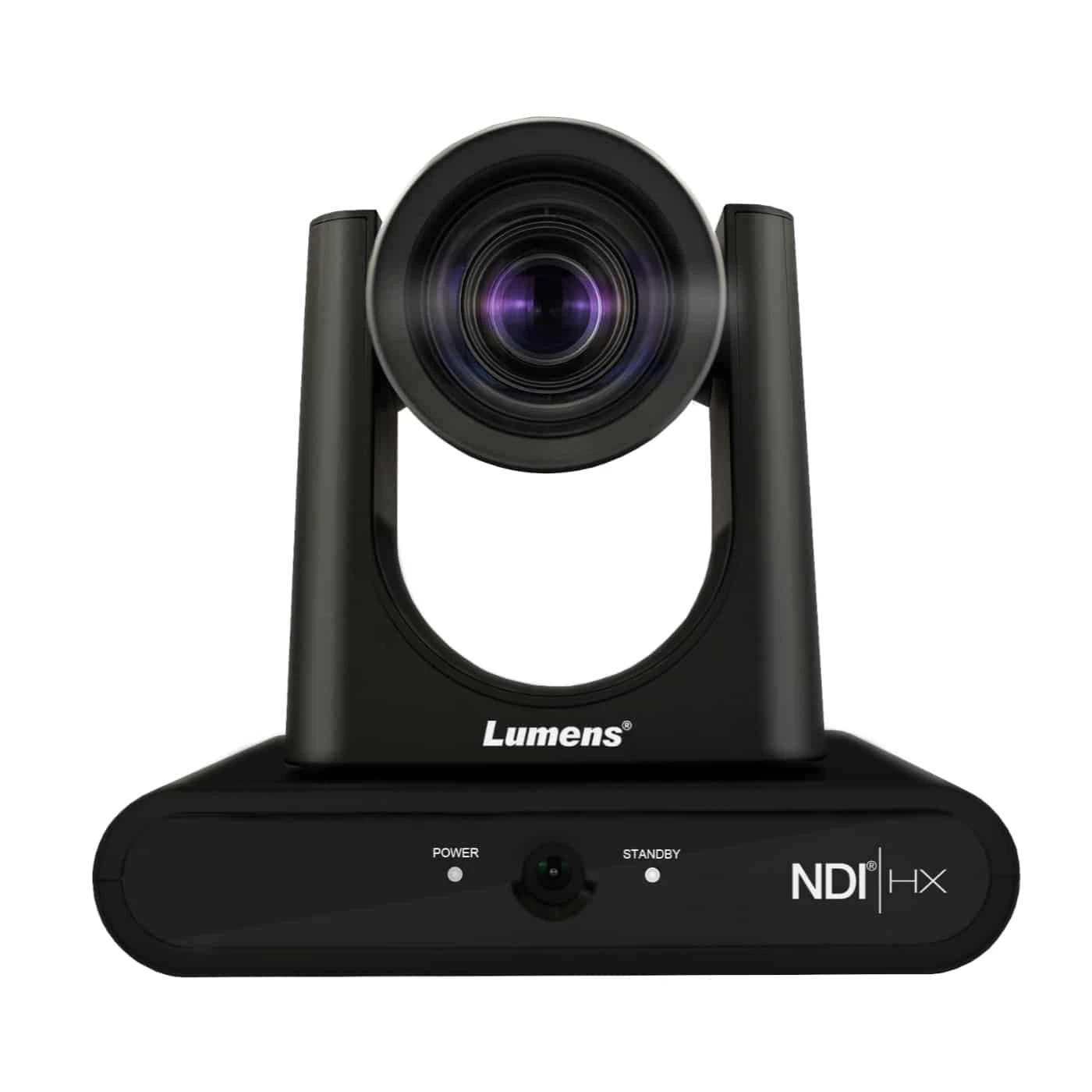

Lumens VC-TR40N Dual-Lens AI Auto-Tracking Full HD NDI Camera with 20x Optical Zoom (Black)

The VC-TR40N Dual-Lens AI Auto-Tracking Full HD NDI|HX2 Camera from Lumens boasts both PTZ and panoramic camera functionality in a single camera for conference space or lecture hall applications. AI-tracking and framing modes with facial recognition technology make automatic adjustments to better bridge the gap between in-person and remote participants. Simultaneously view the entire view with the 720p panoramic lens with 111° horizontal FOV and the individual presenter with the 1080p PTZ lens with 58.7° horizontal FOV.

The camera can output up to 1080p video via HDMI, 3G-SDI, USB-B, and IP ports using its NDI capabilities for flexible connectivity with your preexisting configuration. Both lenses feature 1/2.8″ 2MP CMOS sensors, 20x optical zoom, and 12x digital zoom. A 3.5mm audio line input can add a microphone to the camera’s interface. Various forms of control make remote adjustment intuitive and efficient. Power can be delivered via the DC input port or PoE via the Ethernet port.

AI-Powered Tracking Modes

• Stage Tracking Mode: the camera pans left and right to follow a presenter within a defined area
• Everywhere Tracking Mode: the camera continuously tracks the presenter’s movement side-to-side and forwards and backwards
• Partition Tracking Mode: create a pre-defined partition area that the camera can switch to when the presenter enters inside
• Gesture Tracking Mode: raising your hands causes the camera to automatically track you, manually change the tracked subject by selecting the individual via IP interface

Framing Modes

• Auto-Framing Mode: the camera will automatically adjust to capture all participants
• Partition-Framing Mode: the camera will adjust to a preset position when the presenter walks in to frame and default to auto-framing when they exit

Flexible Mounting and Control

• Position upright or suspend from the ceiling thanks to its inverted capabilities which reorient the image and flip the controls
• Control over the camera’s movements and modes can be achieved via the serial RS-232 connections
• IP via Ethernet port follows VISCA, Pelco-D, and ONVIF protocols
• Included remote control

KEY FEATURES

• Dual 1/2.8″ 2MP CMOS Sensors
• Panoramic and PTZ Camera
• 1080p via HDMI, 3G-SDI, USB, IP & NDI
• AI Auto-Tracking, Face Recognition
• 20x Optical Zoom, 12x Digital Zoom
• IP Interface with PoE and Control
• Wide Angle of View. 3.5mm Audio Input
• RS-232 Serial Control

SPECIFICATIONS LUMENS VC-TR40N-PB

Camera
Model	VC-TR40N-PB
Sensor	1/2.8″-Type CMOS
Sensor Resolution	Effective: 2 Megapixel
Shutter Speed	1/10000 to 1/25 Second
Optical Zoom	20x
External Recording Modes	SDI/BNC / HDMI / USB 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps
IP Streaming	H.264, NDI, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p (2.0 to 20.00 Mb/s) 1280 x 720 at 60p (2.0 to 20.00 Mb/s)
Control Protocols	NDI Pelco-D RS-232 VISCA
PoE Support	PoE 802.3af
Mounting	1x 1/4″-20 Female for Tripod
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 1700 to 10,000K Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto
Focal Length	4.9 to 94mm
Field of View	Horizontal: 58.7° Vertical: 33° Diagonal: 67.3°
Maximum Aperture	f/1.6 to 2.8
Minimum Focus Distance	19.7″ / 50.0 cm
Embedded Audio	HDMI/LAN (RJ45)/SDI/USB
IP Streaming	H.264, NDI, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p (2.0 to 20.00 Mb/s) 1280 x 720 at 60p (2.0 to 20.00 Mb/s)
Presets	256
Tally Light	Yes

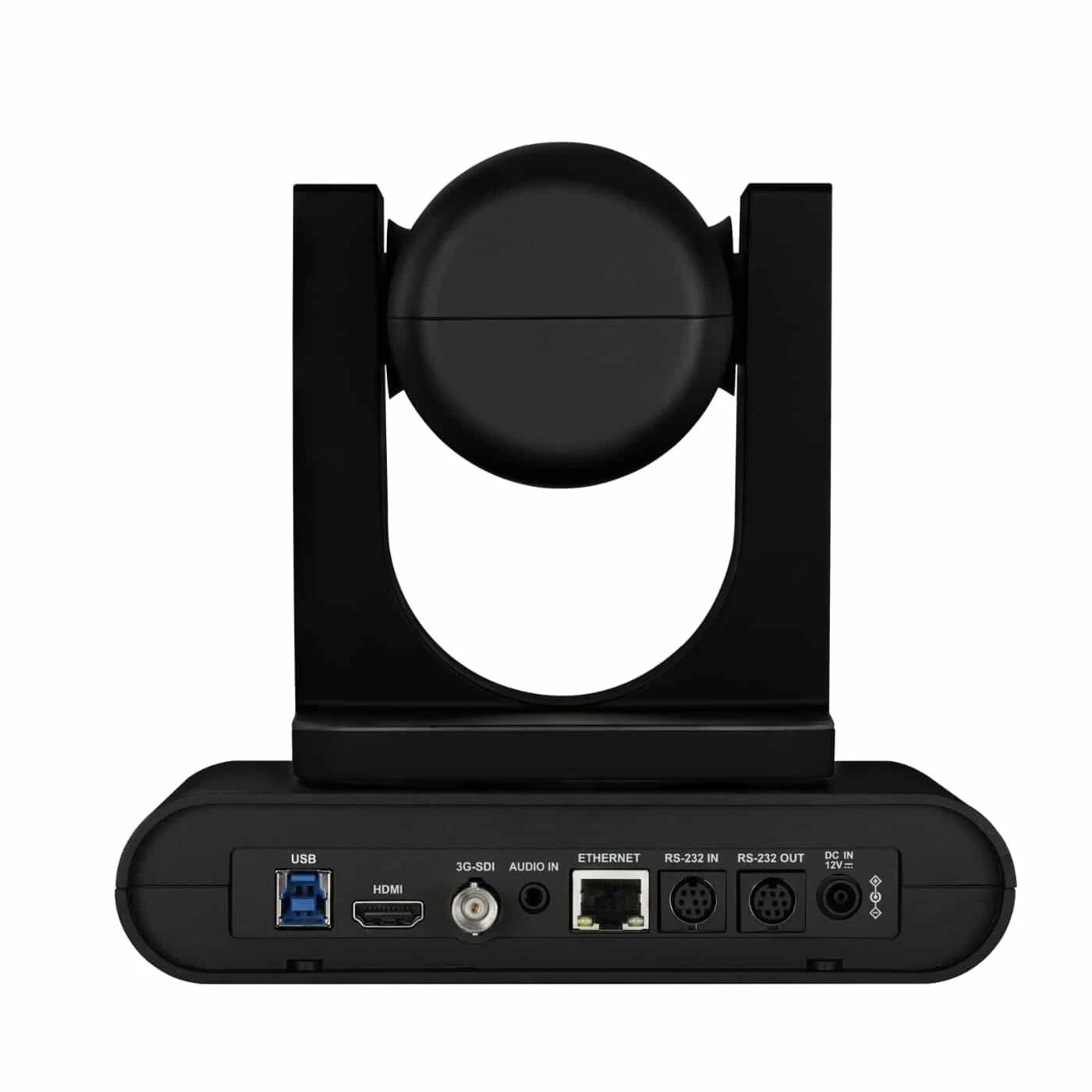

Video I/O	1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output 1x RJ45 Input/Output
Other I/O	1x DIN 8-Pin (RS-232) Input 1x DIN 8-Pin (RS-232) Output
PoE	PoE+ (IEEE802.3at)
Power Consumption	PoE: 11 W Power Supply: 10 W
Weight	1.5 kg (Body Only)
Dimensions (W x H x D)	190 x 185 x 138 mm

INCLUDED BY DEFAULT

• Lumens VC-TR40N Dual-Lens AI Auto-Tracking Full HD NDI Camera with 20x Optical Zoom (Black)
• Remote Control
• USB-B to USB-A 3.0 Cable (6.6′)
• HDMI Cable (4.9′)
• Power Cord
• Power Adapter
