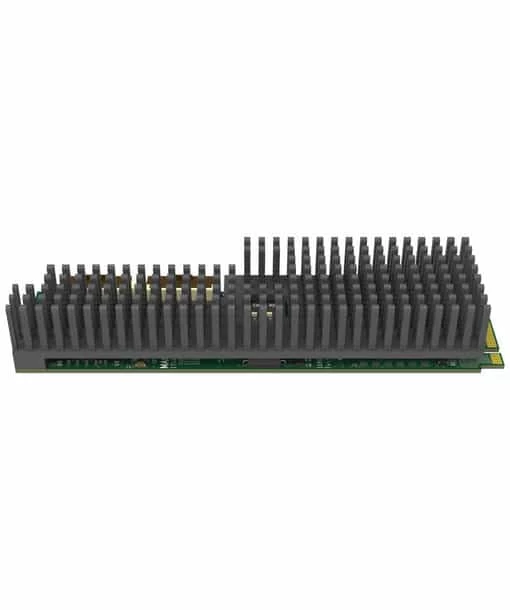

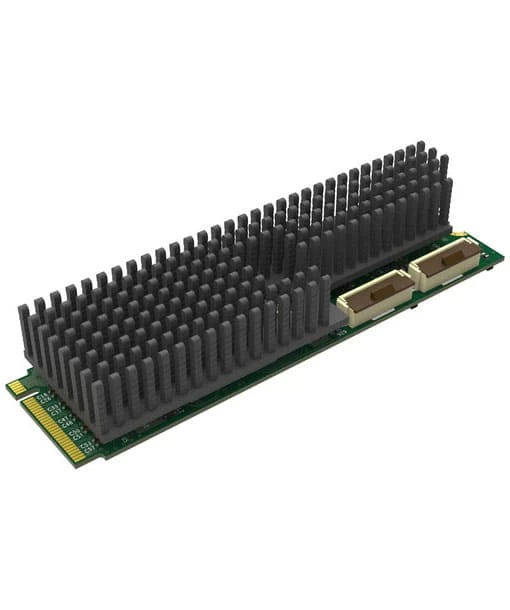

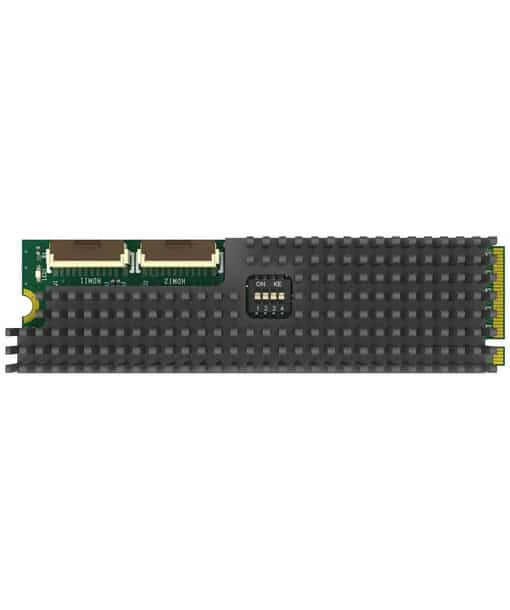

Magewell Eco Capture Dual HDMI M.2 FPC Socket

Magewell Eco Capture Dual HDMI M.2 Two-Channel 2K Capture Card FPC socket

The Magewell Eco Capture Dual HDMI M.2 captures two channels of 2K video plus embedded audio. This capture card is compatible with video formats up to 2048×2160.

The Eco Capture Quad Dual M.2 Capture Card is compatible with Windows and Linux systems. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion.

KEY FEATURES

• 2-Ch HDMI 2K Capture Card for PC/Linux
• Up to 2048 x 2160 Resolution Per Input
• Small Form Factor M.2/PCIe Gen2 x4 Interface
• 2x FPC 20-Pin socket (DVI 1.0, HDMI 1.4a)
• Capable of 24/7 Operation
• Resolution Scaling, Time Stamp
• High-Fidelity Processing Pipeline
• Various Output Color Spaces
• LED Status Indicator

INTERFACE

SPECIFICATIONS

Host Connection

M.2(PCIe Gen2 x4)

Input

Video Input Connectors	HDMI x2 2x FPC 20-Pin socket
Input Video Format	2048×2160 pixels
Audio Input Connectors	None
Embedded Audio Input	HDMI

Hardware

OS Compatibility	WindowsWindows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) LinuxUbuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10/18.04 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64)
Power Consumption	Max current at 3.3V: ~ 1.25 A Max power consumption: ~ 4.17 W

General

Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Operating Humidity	5 to 90%

INCLUDED BY DEFAULT

• Magewell Eco Capture Dual HDMI M.2 Capture Card
• 2 x FPC to HDMI type A adapters
• 2 x FPC ribbon cables (10 cm)
