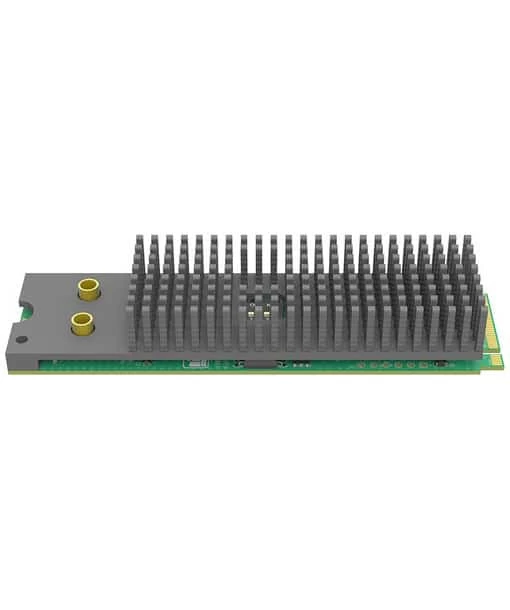

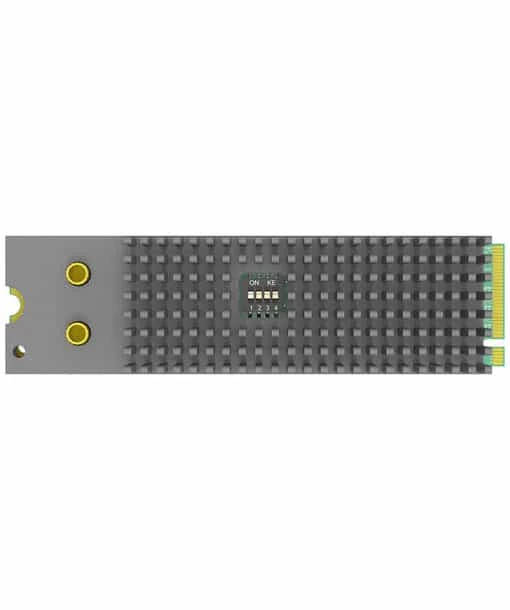

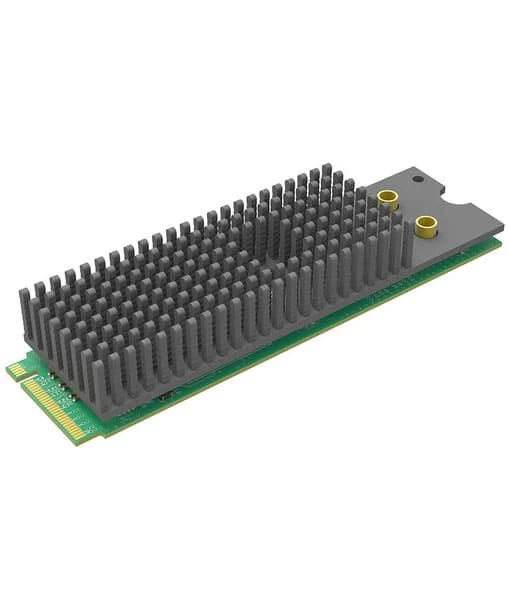

Magewell Eco Capture Dual SDI M.2 Card
The Magewell Eco Capture Dual SDI M.2 Card supports two SDI input sources simultaneously and allows you to capture up to 2048 x 1080 resolution (via 2K/3G/HD/SD-SDI) with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It’s compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week while an LED indicator confirms the working state of the input. The card features two native MMCX input connectors and comes with MMCX-to-BNC adapter cables for connecting your SDI signals.
KEY FEATURES
- 2-Ch SDI 2K Capture Card for PC/Linux
- Up to 2048 x 2160 Resolution Per Input
- 2K/3G/HD/SD-SDI Signal Support
- Small Form Factor M.2/PCIe 2.0 Interface
- Capable of 24/7 Operation
- MMCX Connectors / MMCX-to-BNC Cables
- Resolution Scaling, Time Stamp
- High-Fidelity Processing Pipeline
- Various Output Color Spaces
- LED Status Indicator
INTERFACE
SPECIFICATIONS
| Supported Operating Systems | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64) Linux (based on V4L2, support for x86, x64, and ARM architecture) |
| Supported Resolution | Up to 2048 x 1080 |
| Supported APIs | Windows: DirectShow DirectKS Wave API/DirectSound/WASAPILinux: V4L2 ALSA |
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software |
| Input Interfaces | 2 x MMCX inputs supporting included MMCX to SDI adapter cables |
| Host Interface | M.2 2280 standard size |
| Power Consumption | Max Current at 3.3 V: 1.00 A Max Power Consumption: 3.38 W |
| Operating Temperature | 0 to 40°C |
INCLUDED BY DEFAULT
- Magewell Eco Capture Dual SDI M.2 Card
- 2 x MMCX to BNC Adapter Cables
