Magewell Eco Capture Quad SDI M.2

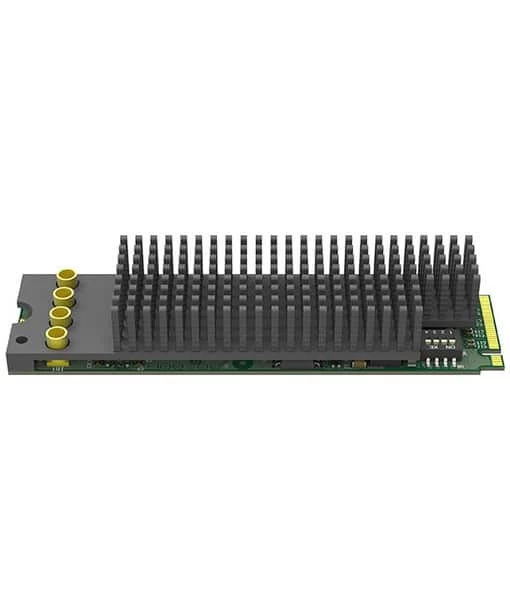

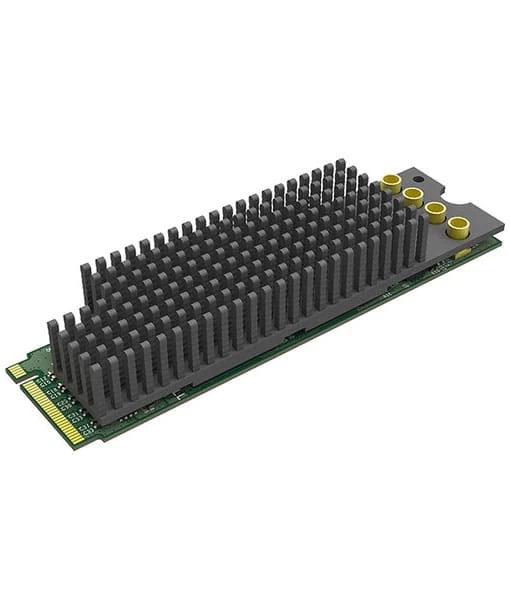

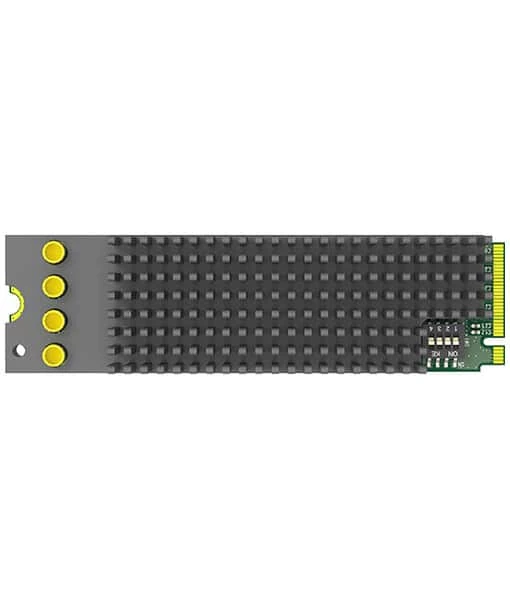

Magewell Eco Capture Quad SDI M.2 Capture Card

The Magewell Eco Capture Quad SDI M.2 captures four channels of SD/HD/3G/2K-SDI video plus embedded audio. This M.2 2280 capture card is compatible with video formats up to 2048 x 1080, and features four MMCX ports that support SD/HD/3G/2K-SDI input via the four included MMCX to BNC cables. Capture uncompressed video from a camera or switcher’s SDI output on your computer for recording, editing, or streaming.

The Eco Capture Quad SDI M.2 Capture Card is compatible with Windows and Linux systems. Extraction of audio-formation and channel-status data is supported, as are closed caption and multiple color spaces in 8-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11540 cards can be used and numbered in one system.

KEY FEATURES

• 4 x MMCX SD/HD/3G/2K-SDI Inputs
• M.2 2280 Type M Interface (PCIe x4 )
• Supports up to 2048 x 1080 Video Input
• 10-Bit 4:4:4 Video Processing
• Multiple Color-Space Support
• Cropping, Scaling, De-Interlacing
• Frame-Rate & Aspect-Ratio Conversion
• Windows and Linux Compatible
• DirectShow, DirectKS, V4L2 Compatible
• 4 x MMCX to BNC Cables Included

INTERFACE

SPECIFICATIONS

Host Connection

M.2 2280 (PCIe 2.0)

Input

Video Input Connectors	4 x BNC (3G-SDI) Female
Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 2K
Audio Input Connectors	None
Embedded Audio Input	SDI

Hardware

OS Compatibility	Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7.2 Linux 25 Linux 26 Linux 6.5
Power Consumption	7.16 W

General

Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Operating Humidity	5 to 90%

INCLUDED BY DEFAULT

• Magewell Eco Capture Quad SDI M.2 Capture Card
• 4 x MMCX to SDI Breakout Cable
