The Magewell Pro Capture Dual SDI 4K Plus is a two-Channel 4K Capture Card that allows you to capture up to two channels 12-G SDI , four channels 6G-SDI or 8 channels 3G-SDI. Capture two 12G-SDI signals in one of the following connecting methods:
- Single-link 12G-SDI (2x)
- Dual-link 6G-SDI (4x)
- Quad-link 3G-SDI (8x)
IMPORTANT: This card can not capture 8x 3G-SDI or 4x 6G-SDI signals separately for it is a two channel card. It only captures up to 2x 12G-SDI but it gives you the possibility to offer this 2x 12G-SDI signal in the 3 different ways as described above.
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

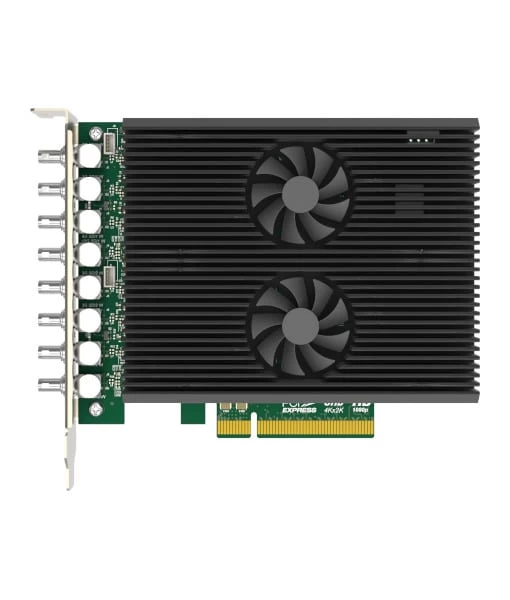

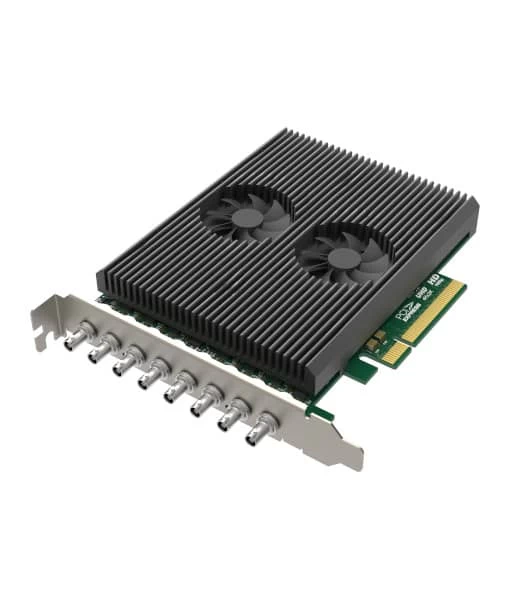

Magewell Pro Capture Dual SDI 4K Plus
The Magewell Pro Capture Dual SDI 4K Plus allows you to capture two 12G-SDI signals in single-link 12G-SDI, dual-link 6G-SDI, or quad-link 3G-SDI, with low-latency processing of only 64 video lines. The PCIe Gen2 x8 capture card supports up to DCI 4K resolution and is compatible with Mac, Windows, and Linux operating systems, as well as popular applications such as OBS and vMix.
Multiple of these low-profile cards can be plugged into a single host, with an on-board rotary switch allowing you to set the card number. Video engine features include 10-bit video processing, deinterlacing, cropping, color adjustment, hardware timestamp, color space conversion, up/down conversion, aspect ratio conversion, OSD, and SG-DMA transmission mode. The card can be run continuously for 24 hours a day, seven days a week.
KEY FEATURES
- PCIe Gen2 x8 2-Ch DCI 4K Capture Card
- 12G, Dual-Link 6G, or Quad-Link 3G-SDI
- Low Latency of Only 64 Video Lines
- 24/7 operation
- Mac, Windows, and Linux Compatible
- Multiple Units Supported on Single Host
- On-Board Rotary Switch
- 10-Bit Video Processing, Timestamp
- Deinterlace, Cropping, Color Adjustment
- Color Space Conversion and More

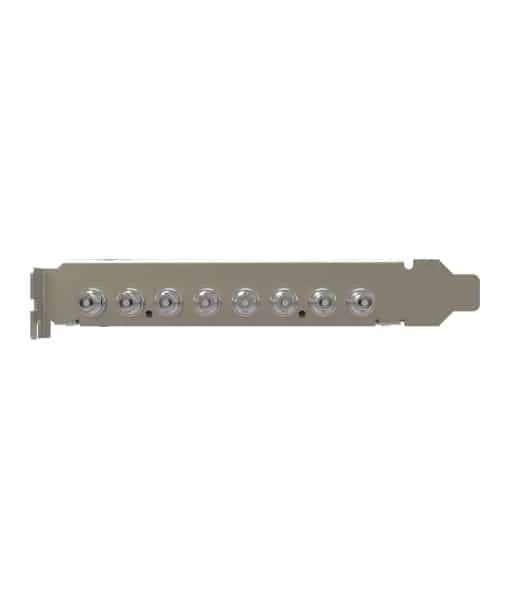

INTERFACE
SPECIFICATIONS
Interface
- SD/HD/3G/2K/6G/12G SDI x1
- SD/HD/3G/2K/6G SDI x1
- SD/HD/3G/2K/SDI x2
- Support input resolution up to 4096×2160 pixels
Host Interface - PCIe Gen2 x8
Video Engine
- 10-bit video processing
- Deinterlace
- Cropping
- Color Adjustment
- Hardware Timestamp
- Color Space Conversion
- Up/down Conversion
- Aspect Ratio Conversion
- OSD
- SG-DMA Transmission mode
Signal Detection & Support
- Auto Detection of Input Signal Format
- Time Code
- Closed Caption
Software Environment
OS
Windows, Linux, Mac
Driver and Firmware
Universal Driver, Updatable Firmware
Included Software
Capture Express
INCLUDED BY DEFAULT
- Magewell Pro Capture Dual SDI 4K Plus
- 8 x HD-BNC to BNC Cable
| Brand | Magewell |
|---|---|
| MPN | 11270 |
| UPC | 814395021188 |
| EAN | 6936572401188 |
| SKU | MA-112700000 |
