Capture 4K resolution video using the low-profile Pro Capture HDMI 4K Plus LT Loop-Through Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features HDMI 2.0 input and loop-through ports.
- HDMI 2.0 Input / Loop Through
- DVI-D 1.0 Input with Optional Adapter
- PCIe x4 Interface
- Supports up to 4096 x 2160 DCI 4K Video
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

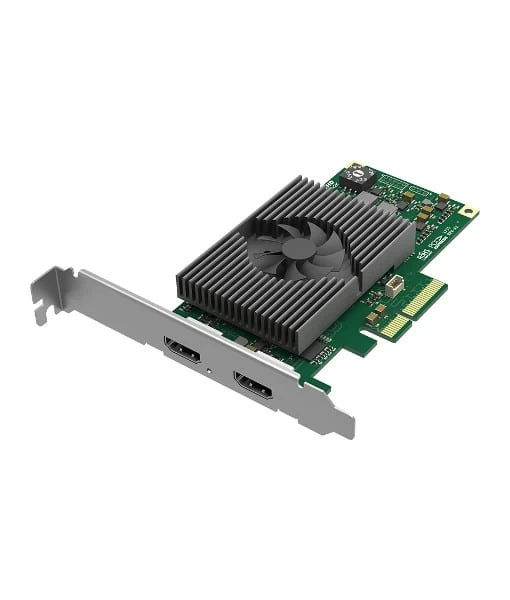

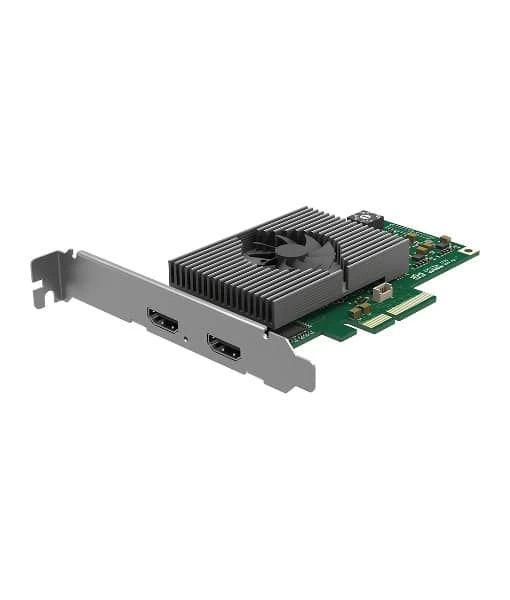

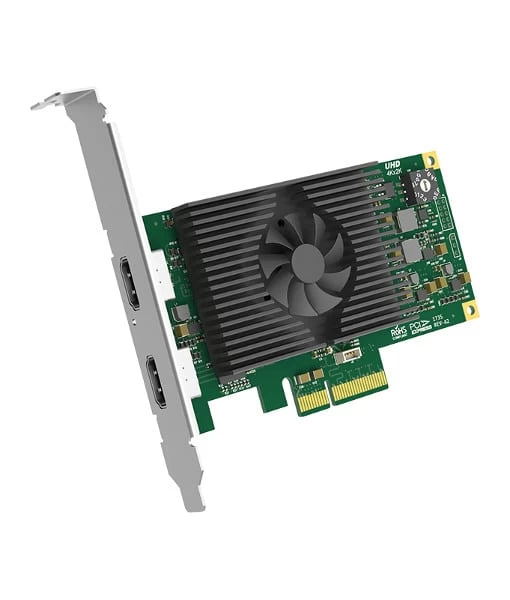

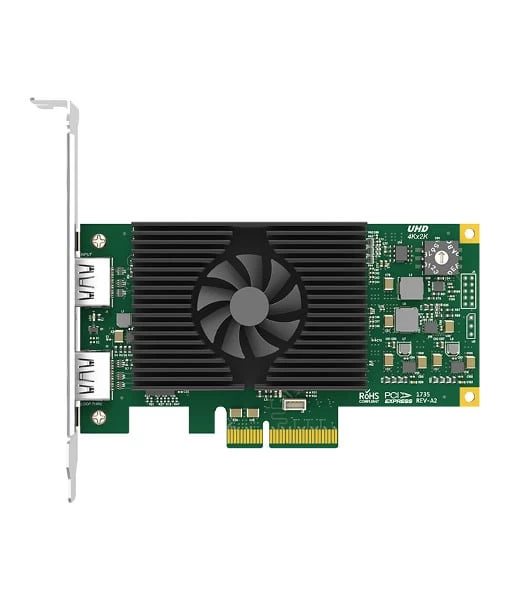

Magewell Pro Capture HDMI 4K Plus Loop-Through Capture Card
Capture 4K resolution video using the low-profile Pro Capture HDMI 4K Plus LT Loop-Through Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features HDMI 2.0 input and loop-through ports. Use an optional HDMI 2.0 to DVI-D 1.0 adapter (not included) to input via DVI-D. Capture uncompressed video from a camera or switcher’s HDMI 2.0 or DVI-D 1.0 output on your computer for recording, editing, or streaming.
The Magewell Pro Capture HDMI 4K Plus Loop-Through is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11152 cards can be used and numbered in one system.
INTERFACE
KEY FEATURES
- HDMI 2.0 Input / Loop Through
- DVI-D 1.0 Input with Optional Adapter
- PCIe x4 Interface
- Supports up to 4096 x 2160 DCI 4K Video
- 10-Bit / 8-Bit Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- macOS, Windows, and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
SPECIFICATIONS
| Supported OS | · Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
· Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) · OS X 10.9–10.11 · macOS 10.12 |
| Supported APIs | · Windows
o DirectShow o DirectKS o Wave API/DirectSound/WASAPI |
| Supported Software | · VLC
· VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder · Any other DirectShow/V4L2 encoding/streaming software |
| Input Interfaces | · HDMI
o DVI-D 1.0 o HDMI 2.0 |
| Host Interfaces | · PCIe Gen2 x4 |
| Loop-through Interface | · HDMI
o DVI-D 1.0 o HDMI 2.0 |
| Input Features | · Support for input video resolutions up to 4096×2160 pixels |
| HDMI Specific Features |
|
| Video Capture Formats | · Support for capture image resolutions up to 4096×2160 pixels
· Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) · Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 · Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY · Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 · Support for 4:4:4 10-bit capture formats: V410, Y410 · More capture formats are supported via Pro Capture SDK for DirectKS |
| Video Processing Features | · Two video processing pipelines with ~720Mpixels/s processing bandwidth
· Full 10-bit video processing · Video cropping · Video scaling · Video de-interlacing o Weave o Blend top & bottom field o Top field only o Bottom field only · Video aspect ratio conversion o Auto or manual selection of input aspect ratio o Auto or manual selection of capture aspect ratio o Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) · Video color format conversion o Auto or manual selection of input color format & quantization range o Auto or manual selection of capture color format, quantization range & saturation range o Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats o Support for Limited or Full quantization range o Support for Limited, Full & ‘Extended gamut’ saturation range · Video frame rate conversion · Video OSD composition o Support for PNG OSD image (up to 4096×2160) o Support for dynamic loading of RGBA OSD image via SDK |
| Multiple Cards per System | · Support for multiple cards plugged to one system
· On-board rotary switch to set card number, with 16 positions from 0 to F · System hardware device tree will display “01: Pro Capture HDMI 4K+ LT” when rotary switch is set to 1, and so on · The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | · Unlimited capture streams for any one input channel
· Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | · Latency of 64 video lines
· Partial notification mode in SDK |
| Timestamp &A/V Synchronization | · Hardware based 100ns high resolution clock
· Audio frames (192 audio samples) & video frames are stamped with hardware clock · Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | · ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
· ~800MB/s per channel DMA bandwidth in PCIe 1.x system · Support for auto detection of Intel tiled GPU surface · Support for DirectGMA for AMD video adapter chipsets · Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | · Pro Capture SDK for DirectShow for easy integration (Windows)
· Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows) |
| Windows Driver Tweaks | · All options can be controled by three levels of registry key: global level, product level and device level
· Video,Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | · Multiple cards in one system can be upgraded simultaneously
· Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) |
| LED Indicator | · Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed. |
| Form Factor | · Low profile PCIe x4 Add-on Card
· 140mm x 68.88mm (without PCI bracket) |
| Power Consumption | · Max current at 12V: ~ 0.48 A
· Max current at 3.3V: ~ 0.82 A · Max power consumption: ~ 8.08 W |
| Working Environment | · Operating temperature: 0 to 40 deg C
· Storage temperature: –20 to 70 deg C · Relative Humidity: 5% to 90% non-condensing |
INCLUDED BY DEFAULT
- Magewell Pro Capture HDMI 4K Plus Loop-Through Capture Card
- Low-Profile Bracket
| Brand | Magewell |
|---|---|
| MPN | 11152 |
| UPC | 0814395021034 |
| EAN | 6936572401034 |
| SKU | MA-111520000 |
