Magewell Pro Capture Hexa CVBS

Magewell 6-Channel Pro Capture Hexa CVBS Capture Card

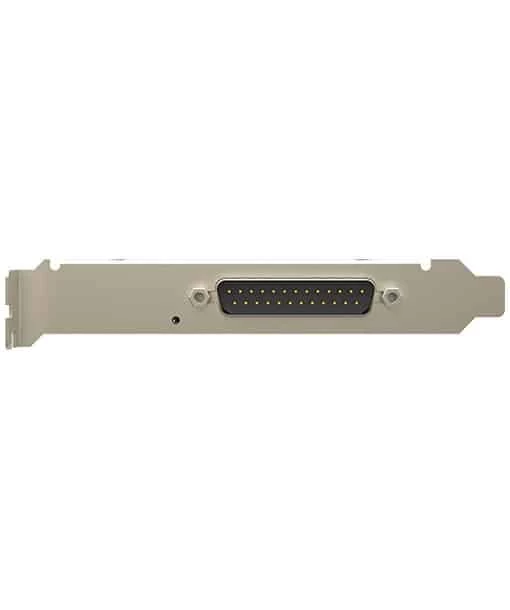

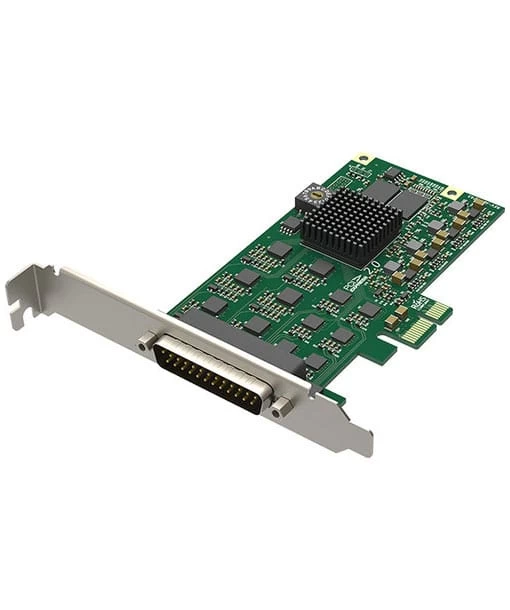

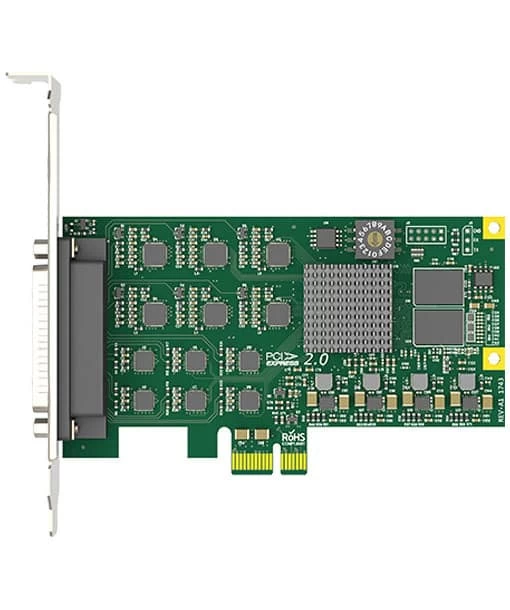

Capture up to six channels of composite A/V with the low-profile 6-Channel Pro Capture Hexa CVBS Capture Card from Magewell. This PCI Express x1 capture card is compatible with composite video formats up to 720 x 576. It is equipped with a 25-pin Sub D port for connecting the included breakout cable.

The 6-Channel Pro Capture Hexa CVBS Capture Card is compatible with Windows and Linux systems. Multiple color spaces in 8-bit formats are supported. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11250 cards can be used and numbered in one system.

KEY FEATURES

• 6 x Composite A/V Input Channels
• PCIe x1 Interface
• Supports up to 720 x 576 Resolution
• 8-Bit Processing
• Multiple Capture Streams
• Cropping, Scaling, De-Interlacing
• Frame-Rate & Aspect-Ratio Conversion
• Windows and Linux Compatible
• DirectShow, DirectKS, V4L2 Compatible
• LP Bracket & Breakout Cable Included

INTERFACE

SPECIFICATIONS

Host Connection

PCIe x1 (PCIe 2.0)

Input

Video Input Connectors	1 x DB-25 (Composite) Male
Input Video Format	Composite (8-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) 576p
Audio Input Connectors	None

Hardware

OS Compatibility	Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7 Linux 25 Linux 26 Linux 27 Linux 6.5 Linux 2.6.35
Power Consumption	6.12 W



Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Operating Humidity	5 to 90%

General

Dimensions

118.16 x 68.88 mm

INCLUDED BY DEFAULT

• Magewell 6-Channel Pro Capture Hexa CVBS Capture Card
• DB-25 to 6 A/V Cable
• Low-Profile Bracket
