Magewell Pro Capture Mini HDMI LH

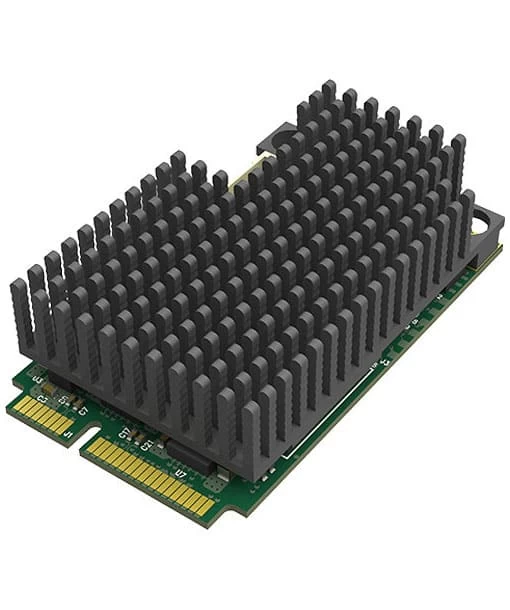

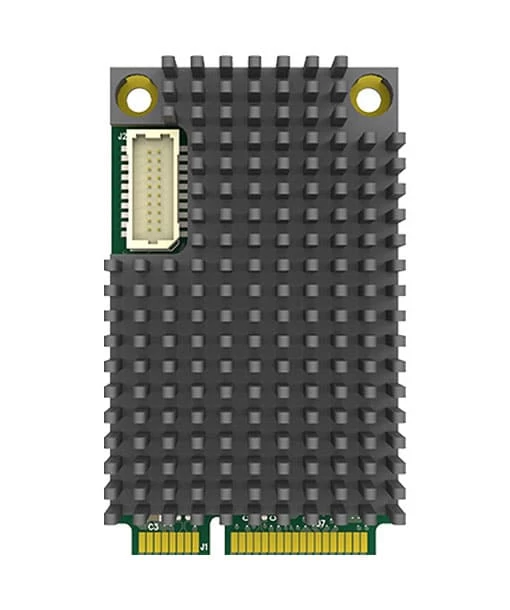

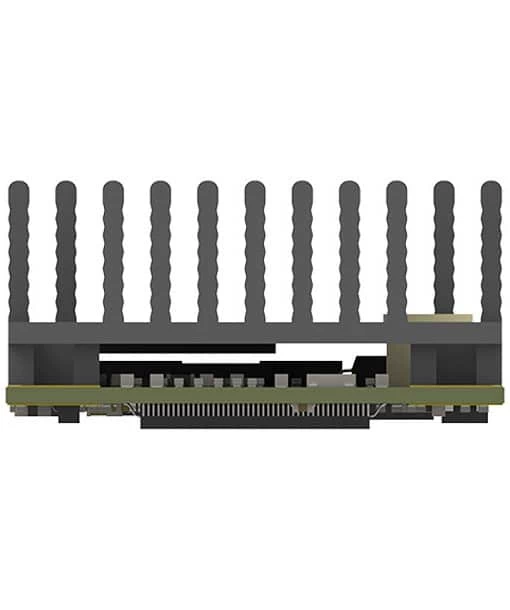

Magewell Pro Capture Mini HDMI with Large Heat Sink

The Magewell Pro Capture Mini HDMI with Large Heat Sink is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface.

KEY FEATURES

• Single-Channel HDMI Capture Card
• 2048 x 2048 Video & Embedded Audio
• Compatible with Windows and Linux
• JST Input Interface & HDMI Adapter
• PCIe Gen2 Host Interface
• 10-Bit Video Processing
• Cropping, Scaling, De-Interlacing
• Frame Rate and Aspect Ratio Conversion

INTERFACE

SPECIFICATIONS

Host Interface	PCIe Gen2 30 x 51 mm
Input Interface	JST SHD 20-Pin Connector Supporting an Included HDMI Adapter
Supported OS	Windows 7, 8, 8.1, 10, 2008, 2008 R2, 2012 (x86 and x64) Linux (Based on V4L2, Supports x86, x64 and Arm Architecture)
HDMI Support	HDMI 1.4a, up to 1080p60 Resolution, 36-Bit Deep Color Video LPCM Audio225 MHz HDMI Receiver Adaptive HDMI Equalizer Support for Cable Lengths up to 98′ / 30 m Customized EDID Extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut Info Frames Full Colorimetry Support 8/10/12-Bit Color Depths RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Sampling Up to 8-Channel IEC60958/IEC61937 Audio Streams Extraction of Audio Formation Information and Channel Status Data Extraction of Video Timing Information Extraction of 3D Format Information Extraction of Sony/Canon DSLR Timecode
Display Formats	Resolutions up to 1080p60 Pixels Frame Rates up to 120 fps (Actual Display Frame Rate Can Be Limited by PCIe Bandwidth, and at Higher Image Resolutions — Above 1280 x 1024 — by the Pixel Clock of the On-Board Video Processing Hardware. For Example, Max Frame Rate at 1920 x 1080 = ~80 fps) 4:2:0 8-Bit Display Formats: NV12, I420, YV12 4:2:2 8-Bit Display Formats: YUY2, YUYV, UYVY 4:4:4 8-Bit Display Formats: V308, IYU2, V408, BGR24, BGR32 4:4:4 10-Bit Display Formats: V410, Y410 More Display Formats Are Supported via Pro Capture SDK for DirectKS
Supported APIs	Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI Linux: V4L2, ALSA
Supported Software	VLC, VirtualDub, OBS, xSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any Other DirectShow/V4L2 Encoding/Streaming Software
Latency	64 Video Lines Partial Notification Mode in SDK
Time Stamp	Hardware-Based 100 ns High-Resolution Clock Audio Frames (192 Audio Samples) and Video Frames Are Stamped with Hardware Clock Hardware Clock Can Be Synchronized Across Cards (via SDK)
Video Display SG-DMA	400 MB/s per Channel DMA Bandwidth in PCIe 2.0 System 200 MB/s per Channel DMA Bandwidth in PCIe 1.0 System Support for Auto Detection of Intel Tiled GPU Surface Support for DirectGMA for AMD Video Adapter Chipsets Support for GPUDirect for NVIDIA Video Adapter Chipsets
Power Consumption	Max Current at 3.3 V, 1.2 A 4 W Max Power Consumption
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Relative Humidity	5 – 90% Non-Condensing
Dimensions	30 x 51 mm

INCLUDED BY DEFAULT

• Magewell Pro Capture Mini HDMI with Large Heat Sink
• HDMI Adapter
