Magewell Pro Capture Mini SDI (no Heat Sink)

Magewell Pro Capture Mini SDI SH Capture Card with No Heat Sink

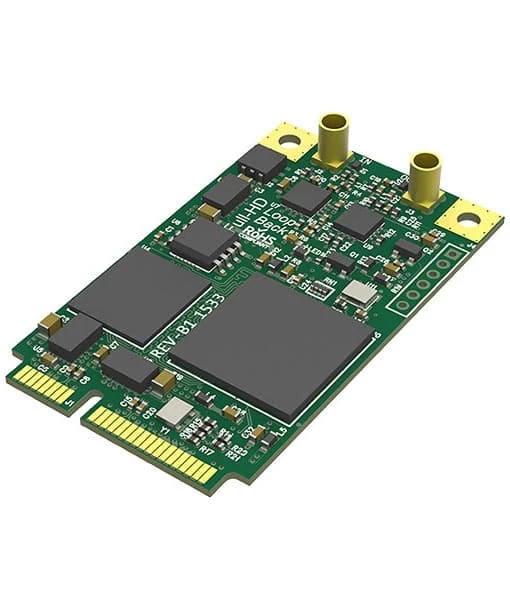

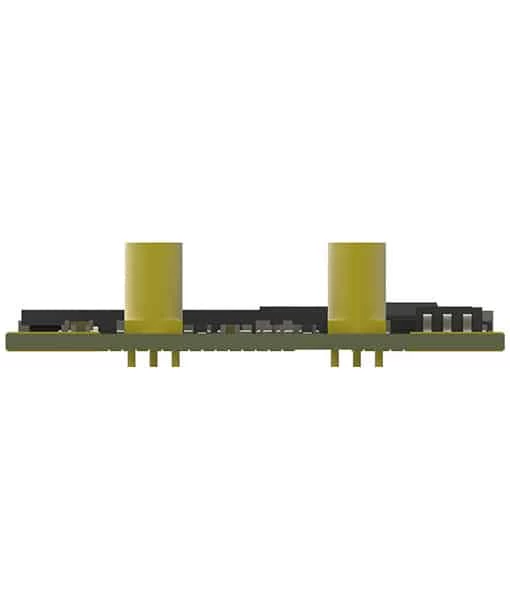

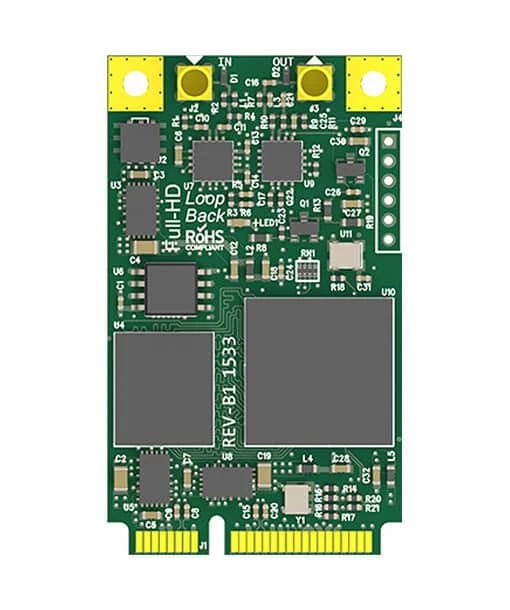

The Pro Capture Mini SDI SH Capture Card with No Heat Sink from Magewell is a mini PCIe add-on card that allows for capturing a single channel of SD/HD/3G-SDI and SD/HD/3G-SDI loopback. The card supports extraction of SMPTE 352 payload identifier and is capable of performing various video processing features, including cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

KEY FEATURES

• Single-Channel SDI Capture Card
• 2048 x 1080 Video & Embedded Audio
• Compatible with Windows, Mac & Linux
• PCIe Gen2 x1 Host Interface
• 10-Bit Video Processing
• Cropping, Scaling, De-Interlacing
• Frame Rate and Aspect Ratio Conversion

INTERFACE

SPECIFICATIONS

Input Interface	MMCX (SD/HD/3G SDI)
Output Interface	PCIe Gen2 x1 MMCX (SDI Loopback)
Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (Based on V4L2, Supports x86, x64, and Arm Architecture) macOS X
Supported APIs	Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI Linux: V4L2, ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any Other DirectShow/V4L2 Encoding/Streaming Software
Video Output Format	Supports up to 2048 x 2048 Output Resolutions Supports Output Frame Rates up to 144 fps (Actual Output Frame Rate Can Be Limited by PCIe Bandwidth and Image Resolution) Supports 4:2:0 8-Bit Output Formats (NV12, I420, YV12) Supports 4:2:2 8-Bit Output Formats (YUY2, YUYV, UYVY) Supports 4:4:4 8-Bit Output Formats (V308, IYU2, V408, BGR24, BGR32) Supports 4:4:4 10-Bit Output Formats (V410, Y410) More Output Formats Are Supported via Pro Capture SDK for DirectKS
Video Output SG-DMA	400 MB/s per Channel DMA Bandwidth in PCIe 2.0 System 200 MB/s per Channel DMA Bandwidth in PCIe 1.0 System
LED Indicator	Status LEDs Indicate the Working State of Each Channel; Idle, Input Signal Locked, Memory Failed, or FPGA Configuration Failed
Power Consumption	Max Current at 3.3 V: Approximately 1 A Max Power Consumption: Approximately 3.3 W
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Relative Humidity	5 to 90% Non-Condensing
Form Factor	Mini PCIe Add-On Card 3.0 x 5.1 cm

INCLUDED BY DEFAULT

• Magewell Pro Capture Mini SDI SH Capture Card with No Heat Sink
• 2 x MMCX to BNC Breakout Cable
