Oorspronkelijke prijs was: 342,00 €.95,99 €Huidige prijs is: 95,99 €.
The Magewell Pro Capture SDI 4K Plus is a single channel 12G-SDI capture device that allows you to capture one 12G-SDI signal in one of the following connecting methods:
- Single-link 12G-SDI
- Dual-link 6G-SDI
- Quad-link 3G-SDI
IMPORTANT: This card can not capture 4x 3G-SDI or 2x 6G-SDI signals separately for it is only an one channel capture card. It gives you the possibility to offer a 12G-SDI signal in the 3 different ways as described above.
Please see product below for 4 channel 3G-SDI Capture card:
https://www.streamingvalley.nl/product/magewell-quad-sdi-pro-capture-card/
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren
Magewell Pro Capture SDI 4K Plus
The Magewell Pro Capture SDI 4K Plus captures 4K resolution video using the low-profile PCI Express x4 capture card. The Capture Card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features four high-definition BNC ports out of which two support SDI formats up to 3G-SDI, one up to 6G-SDI, and one up to 12G-SDI. Capture uncompressed video from a camera or switcher’s SDI output on your computer for recording, editing, or streaming.
The Magewell Pro Capture SDI 4K Plus is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data is supported as are closed caption and multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11180 cards can be used and numbered in one system.
KEY FEATURES
- 2x 3G-SDI, 1x 6G-SDI & 1x 12G-SDI Inputs
- PCIe x4 Interface
- Supports up to 4096 x 2160 DCI 4K Video
- 10-Bit / 8-Bit Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- macOS, Windows, and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
- LP Bracket & 4 x BNC Cables Included
INTERFACE
SPECIFICATIONS MAGEWELL Pro Capture SDI 4K Plus
| Supported OS | · Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
· Linux (based on V4L2，supports x86, x64 & ARM architecture) · OS X 10.9–10.11 · macOS 10.12 |
| Supported APIs | · Windows
o DirectShow o DirectKS o Wave API/DirectSound/WASAPI · Linux o V4L2 o ALSA |
| Supported Software | · VLC
· VirtualDub · OBS · xSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder · Any other DirectShow/V4L2 encoding/streaming software |

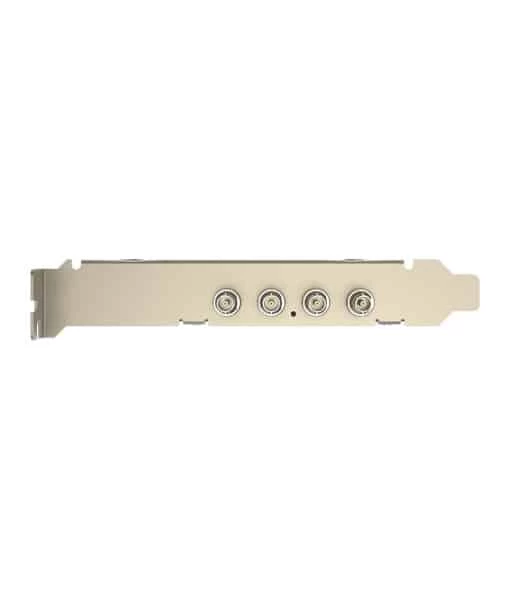

| Input Interfaces | · HD-BNC x4
o Two connectors are compatible with SD/HD/3G SDI o One connecter is compatible with SD/HD/3G/6G SDI o One connecter is compatible with SD/HD/3G/6G/12G SDI o Support for input of Single Link, Dual Link, Quad Link |
| Host Interfaces | · PCIe Gen2 x4 |
| Input Features | · Support for input video resolutions up to 4096×2160 pixels
· Auto detection of Single Link, Dual Link, Quad Link |
| SDI Specific Features | · Integrated cable equalizer supporting cable lengths up to 230M for HD signals
· Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G · Support for 2K (2048×1080) & 4K (4096×2160) mode · Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling · Support for 10/12-bit color depth · Support for extraction of SMPTE 352 payload identifier · Support for up to 8 (mono) audio channels at 48KHz · Support for extraction of audio formation information & channel status data |
| Video Capture Formats | · Support for capture image resolutions up to 4096×2160 pixels
· Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) · Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 · Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY · Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 · Support for 4:4:4 10-bit capture formats: V410, Y410 · More capture formats are supported via Pro Capture SDK for DirectKS |
| Video Processing Features | · Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one
· Full 10-bit video processing · Video cropping · Video scaling · Video de-interlacing o Weave o Blend top & bottom field o Top field only o Bottom field only · Video aspect ratio conversion o Auto or manual selection of input aspect ratio o Auto or manual selection of capture aspect ratio o Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) · Video color format conversion o Auto or manual selection of input color format & quantization range o Auto or manual selection of capture color format, quantization range & saturation range o Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats o Support for Limited or Full quantization range o Support for Limited, Full & ‘Extended gamut’ saturation range · Video frame rate conversion · Video OSD composition o Support for PNG OSD image (up to 4096×2160) o Support for dynamic loading of RGBA OSD image via SDK |
| Multiple Cards per System | · Support for multiple cards plugged to one system
· On-board rotary switch to set card number, with 16 positions from 0 to F · System hardware device tree will display “01: Pro Capture SDI 4K+” when rotary switch is set to 1, and so on · The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | · Unlimited capture streams for any one input channel
· Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | · Latency of 64 video lines
· Partial notification mode in SDK |
| Timestamp & A/V Synchronization | · Hardware based 100ns high resolution clock
· Audio frames (192 audio samples) & video frames are stamped with hardware clock · Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | · ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
· ~800MB/s per channel DMA bandwidth in PCIe 1.x system · Support for auto detection of Intel tiled GPU surface · Support for DirectGMA for AMD video adapter chipsets · Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | · Pro Capture SDK for DirectShow for easy integration (Windows)
· Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows) |
| Windows Driver Tweaks | · All options can be controled by three levels of registry key: global level, product level and device level
· Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | · Multiple cards in one system can be upgraded simultaneously
· Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) · Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | · Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed. |
| Form Factor | · Low profile PCIe x4 Add-on Card
· 140mm x 68.88mm (without PCI bracket) |
| Power Consumption | · Max current at 12V: TBD
· Max current at 3.3V: TBD · Max power consumption: TBD |
| Working Environment | · Operating temperature: 0 to 40 deg C
· Storage temperature: –20 to 70 deg C · Relative Humidity: 5% to 90% non-condensing |
INCLUDED BY DEFAULT
- Magewell Pro Capture SDI 4K Plus Capture Card
- 4 x HD-BNC to BNC Cable
- Low-Profile Bracket
| Brand | Magewell |
|---|---|
| MPN | 11180 |
| UPC | 814395020945 |
| EAN | 6936572400945 |
| SKU | MA-111800000 |
