The Magewell Ultra Encode AIO is an Advanced single-channel encoder for Streaming and Recording.
- HDMI/SDI inputs with Loop-through
- Picture-in-picture or side-by-side output
- H.264/H.265
- SRT, NDI|HX3, HLS & more
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

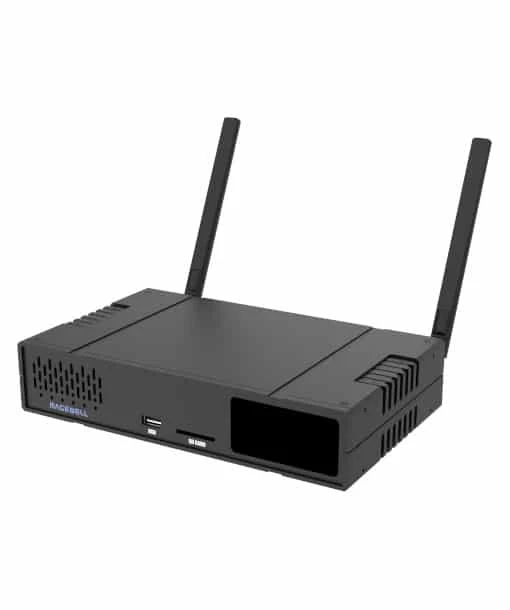

Magewell Ultra Encode AIO
The Magewell Ultra Encode AIO is an Advanced single-channel encoder for Streaming and Recording. This encoder is able to encode and stream one live HDMI 4K 30fps input or Full HD 3G-SDI 60fps input. The picture-in-picture and other overlay options allow users to merge both HDMI and SDI inputs for a combined output.
This powerful encoder offers sumltaneous multi-protocol streaming up to eight channels at a bitrate of 32Mbps per stream. Users can choose from a wide variety of formats such as, H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. Delivery protocols include RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.
KEY FEATURES
- Mixes video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output.
- Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session.
- Variable bitrate control (VBR) – set different bit rates to different streams
- High-efficiency, low-bandwidth NDI®|HX 3 supported.
- Supports streaming and recording schedule.
- Rack-mountable form factor.
INTERFACE
SPECIFICATIONS ULTRA ENCODE AIO
Input Features
- HDMI supported input & loop-through signals include:
- 4096×2160 30fps 4:4:4/4:2:2
- 4096×2160 60fps 4:2:0
- 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720×576 25p/50i (PAL SD)
- 720×480 29.97p/59.94i (NTSC SD)
- SDI supported input & loop-through signals include:
- 2048×1080 60fps 4:2:2
- 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720×576 25p/50i (PAL SD)
- 720×480 29.97p/59.94i (NTSC SD)
- Custom EDID
- 8/10/12-bit color
- Input & loopthrough 16-Channel SDI embedded audio
- Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
- Input Audio from 3.5 mm LINE IN
- SD/HD/3G BNC input & loopthrough
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
- HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
- Dual stream encoding: main stream and sub stream
- Max bitrate: 32Mbps
- HDMI supported resolutions include:
- 4096x2160p/3840x2160p/2560x1440p30
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
- SDI supported resolutions include:
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
- H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
- H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions
- Converting video aspect ratio of dual streams
- Encoding 8-channel AAC
- Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
- Extracting audio from input signal and output through LINE OUT
- Encoding videos after de-interlacing
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
Streaming Features
- Natively support Facebook, Twitch and YouTube
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols, containing 1 session of HLS, RTSP, NDI®|HX2, or NDI®|HX 3 (if included)
- Specify main stream or sub stream for each streaming session
- Support for streaming scheduler for each destination
Recording Features
- Support for normal recording and loop recording
- Record to external SD card and external USB storage
- Record the main or sub stream
- Download recorded files via webUI
- Support for recording schedule
- Video recordings in MP4 or MOV format
- Share recorded files with NFS/CIFS/SMB
Configuration Management
- Real-time LCD monitor for system status and input signal
- Register with Magewell Cloud
- Remote control via WebUI and Magewell Cloud
- Access WebUI via PC and smartphone
- Provide comprehensive information regarding the system information of device and working status in real-time via WebUI
- Video thumbnail preview via WebUI
- Add up to 8 overlays, including text, picture, and clock
- Check RTSP, SRT Caller, and SRT Listener status
- Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time via WebUI
- Function as a WiFi Access Point and a WiFi station simultaneously
- Update firmware
- Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network Connections
- Wired Ethernet network: 10/100/1000Mbps
- IEEE 802.3af PoE
- Wi-Fi 802.11 a/b/g/n/ac
- 4G/5G USB mobile broadband Modem (not included)
- USB Net

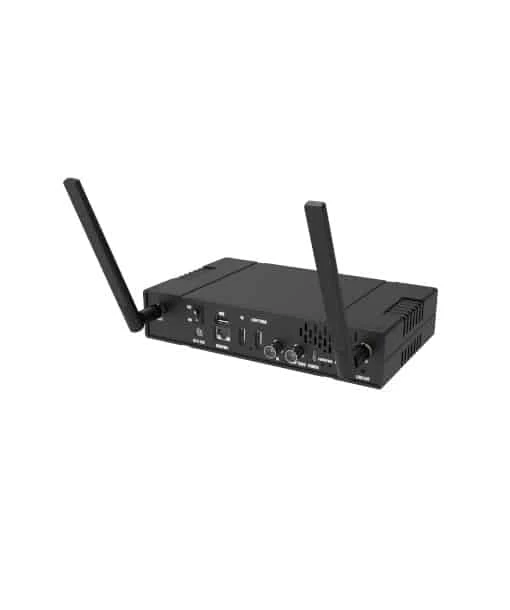

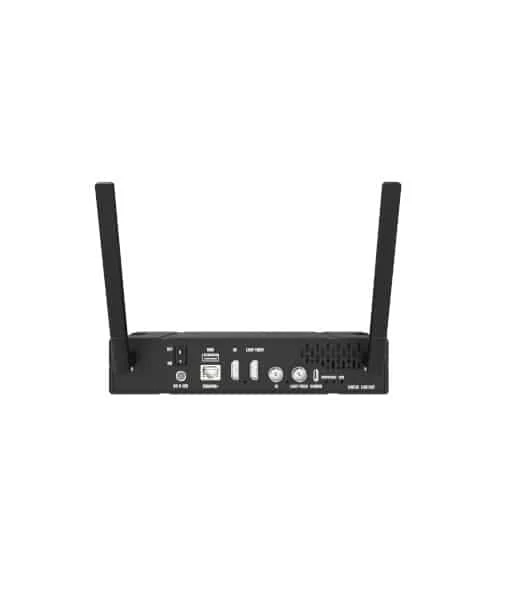

Input/Output Interfaces
- SD/HD/3G BNC input and loop-through interfaces
- HDMI input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT
- USB Type-C (config)
- SD card slot
- 2 x USB Type-A

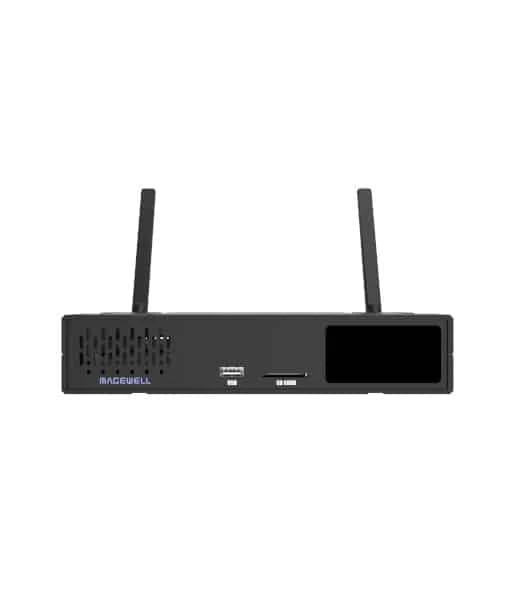

LCD Display & LED Indicators
- 1.9 inch LCD display with 320×170 resolution enabling real-time system status monitoring
- LEDs indicators show the status of power, input signal, recording and streaming
Power Supply and Consumption
- DC 9 ~ 18 V
- Max power consumption: TBD
Form Factor
- 214.9mm x 128.2mm x 44.55mm

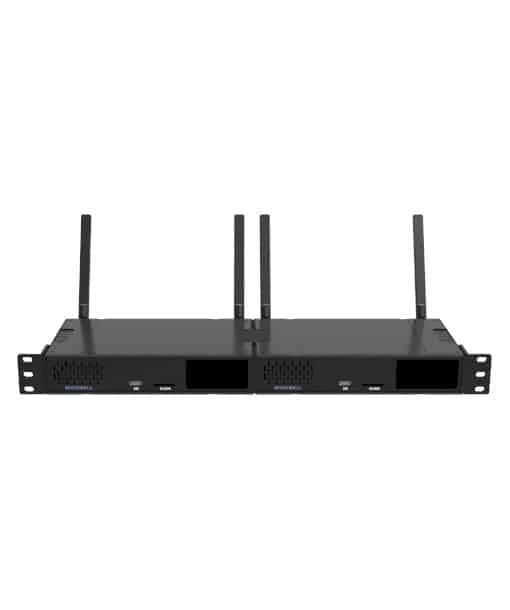

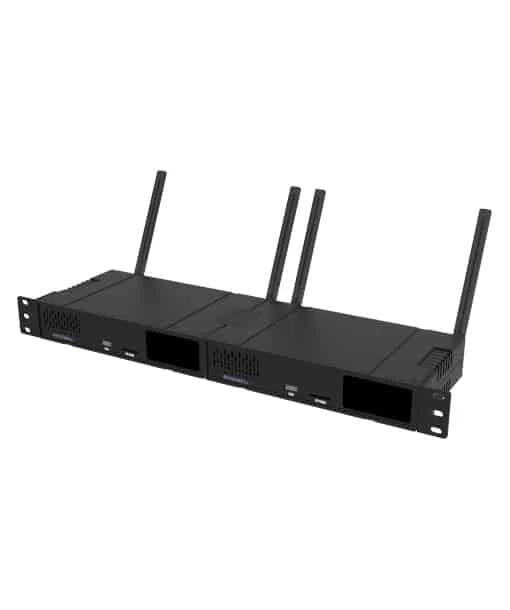

- Support to mount onto a standard 1U rack with provided rack-mount kit
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
INCLUDED BY DEFAULT
- Magewell Ultra Encode AIO
- 1 x Screw locking DC power adapter
- 2 x Wi-Fi antenna
- 1 x HDMI cable
- 7 x M2.5 screws
- 1 x Retainer plate
- 1 x 1U short rack ear
- 2 x 1U long rack ears
| Brand | Magewell |
|---|---|
| MPN | 53130 |
| EAN | 6936572401423 |
| UPC | 814395021423 |
| SKU | MA-531300000 |
