The Magewell Ultra Encode HDMI is ideal for broadcasting your Full HD video and audio to Facebook, YouTube or Twitch, as well as your own site, with multiplatform distribution. The Web UI gives you access to device work status, preview window and tabs for streaming settings, analytics, and stream health monitoring.

HDMI 1.4 input/Loop
H.264/H.265
SRT, NDI|HX, HLS & more

Artikelnummer: MA-531100000 Categorieën: Encoders for Live Streaming, Live Streaming, Small Form Factor Encoders

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

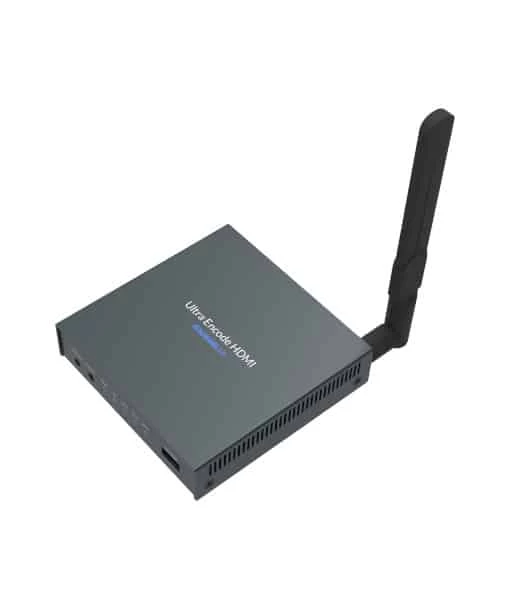

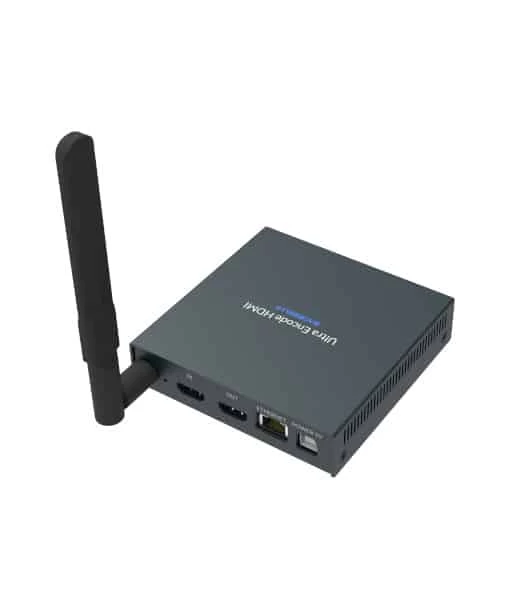

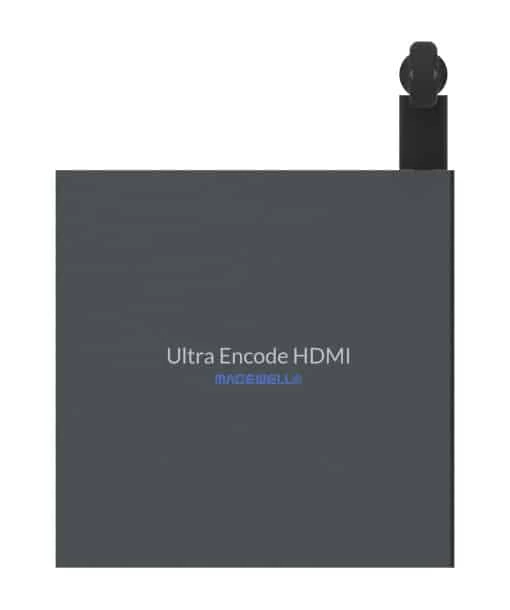

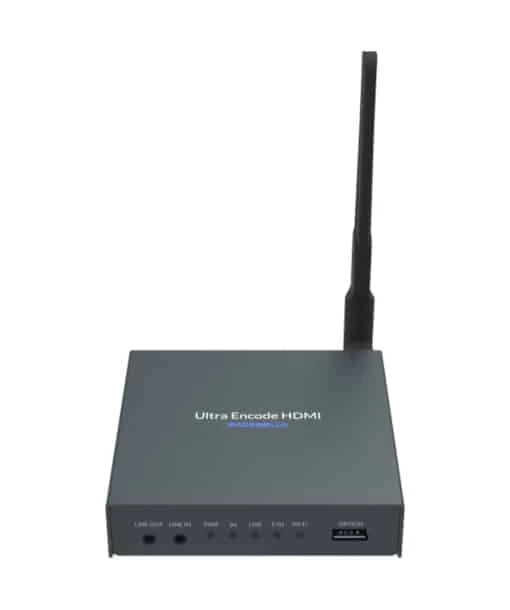

Magewell Ultra Encode HDMI

The Magewell Ultra Encode HDMI offers integrators, streaming professionals an easy to use encoding, recording live streaming, AV over IP, remote contribution, IP production workflows and much more. The Ultra Encode HDMI supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity. The encoder converts input signal to custom format, using H.264/H.265 video encoders and AAC audio encoder. It can push multiple streams to RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS(push)/TS over UDP/TS over RTP video servers simultaneously that you have access to.

KEY FEATURES

Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS
(push)/TS over UDP/TS over RTP streaming protocols
Dual stream encoding
Multi-streaming to various video platforms simultaneously
Video encoders – H.264 and H.265 (HEVC)
Audio encoder – AAC
Web UI – a remote network management system

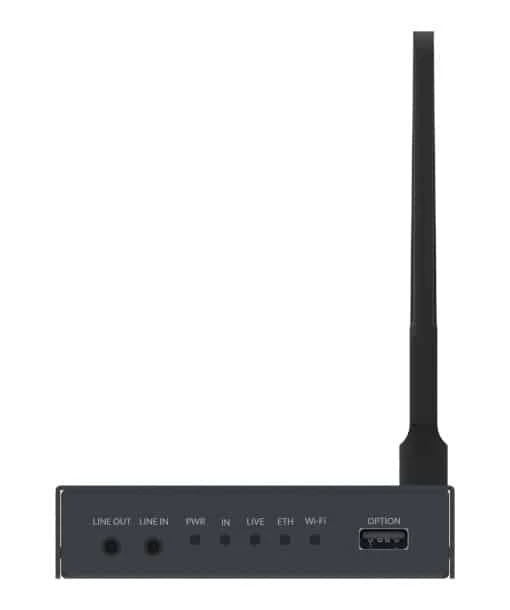

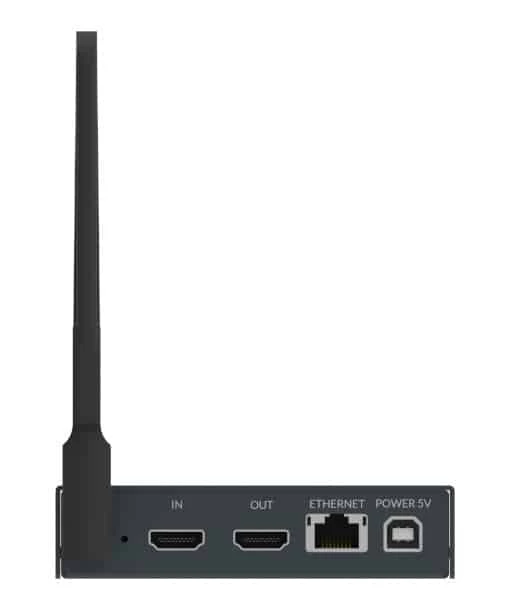

INTERFACE ULTRA ENCODE HDMI

SPECIFICATIONS ULTRA ENCODE HDMI

Model	Ultra Encode HDMI
Input Features	Max HDMI input & loop-through signals: o 4096×2160 60fps 4:2:0 o 4096×2160 30fps 4:4:4/4:2:2 Supported inputs include: o 4096×2160/3840x2160p 23.98/24/25/29.97/30/59.94/60 o 2560x1080p 23.98/24/25/29.97/30/50/59.94/60 o 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 o 1920x1080i 25/29.97/30/50/59.94/60 o 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144 o 720x576p 50/100/144 o 720x576i 25/50 o 720x480p 59.94/60/144 o 720x480i 29.97/30 8/10/12-bit color Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate Input audio from 3.5 mm LINE IN HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features	Dual stream encoding: main stream and sub stream Max bitrates: o Main Stream – 16Mbps o Sub Stream – 2Mbps Support resolutions: o HD: 1920×1080, 1600×1200, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768 o SD: 960×540, 800×600, 768×576, 720×576, 720×540, 640×480, 640×360, 480×360, 480×270 Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps H.264/H.265(HEVC) video encoders Encoding 2-channel AAC at 48kHz, 16-bit Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps Extracting audio from input signal and output through LINE OUT
Streaming Features	Natively support Facebook, Twitch and YouTube Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI\|HX2/HLS (push)/TS over UDP/TS over RTP Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows. o Up to 6 sessions of TS over RTP and TS over UDP simultaneously o Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously) o Up to 6 sessions of RTMP and RTMPS simultaneously Stream only 1 session of HLS (push), RTSP, or NDI\|HX2 Total bitrates for different network connection types: o 24Mbps for all streams is recommended for a wired network connection o 16Mbps for all streams is recommended for a wireless network connection Specify streaming main stream or sub stream for each session
Web UI Management	· Provide comprehensive information regarding the system information of device and working status in real-time · Video thumbnail preview · Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection · Update firmware · Export configuration profiles of the device · Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers · Provide HTTP APIs
Network Interfaces	Wired Ethernet network: 10/100/1000Mbps · Wi-Fi 802.11 a/b/g/n/ac · 3G/4G USB mobile broadband Modem (not included)
Input/Output Interfaces	HDMI 1.4a input and loop-through interfaces · 3.5mm LINE IN 3.5mm LINE OUT
LED Indicators	LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption	DC 5V/2A Max power consumption: ~7.6 W
Form Factor	106.6mm x 106.2mm x 25mm
Accessories	AC adapter Wi-Fi antenna USB 2.0 Type B cable T-bracket
Screw Mounting Hole	2 x M3 threaded hole A standard 1/4″-20 socket provided by T-bracket
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing
