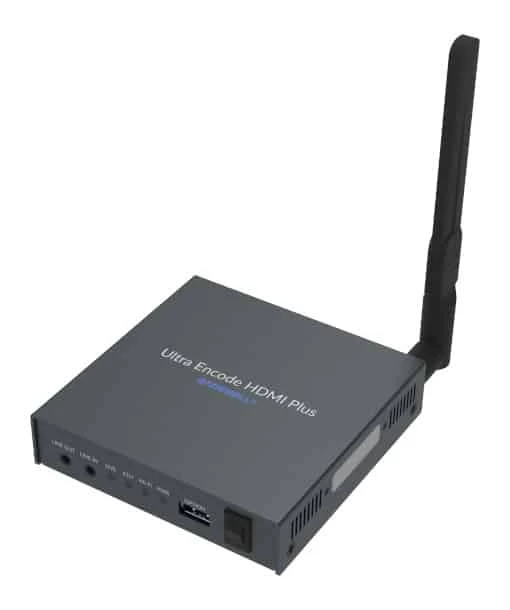

Magewell Ultra Encode HDMI Plus Universal 4K Encoder

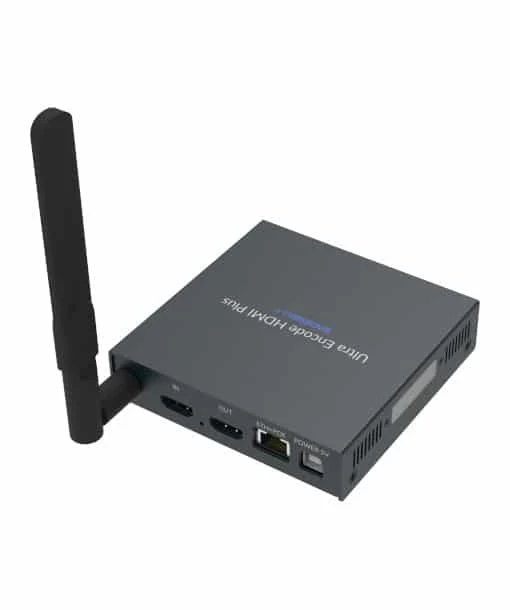

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 2

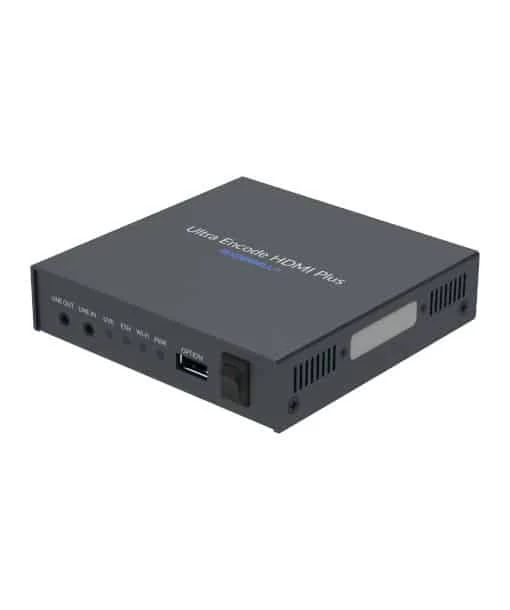

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 3

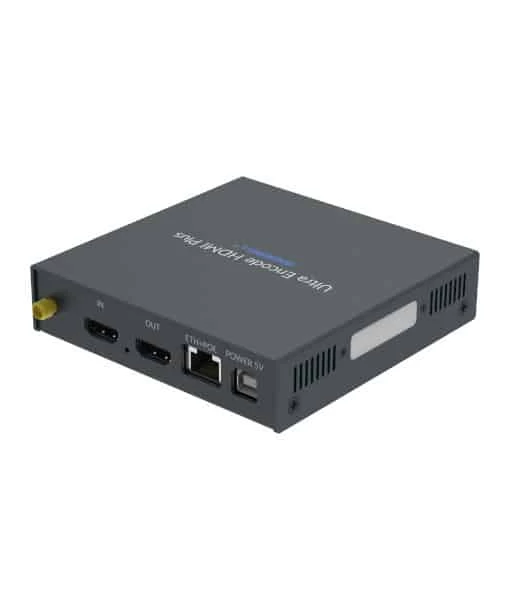

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 4

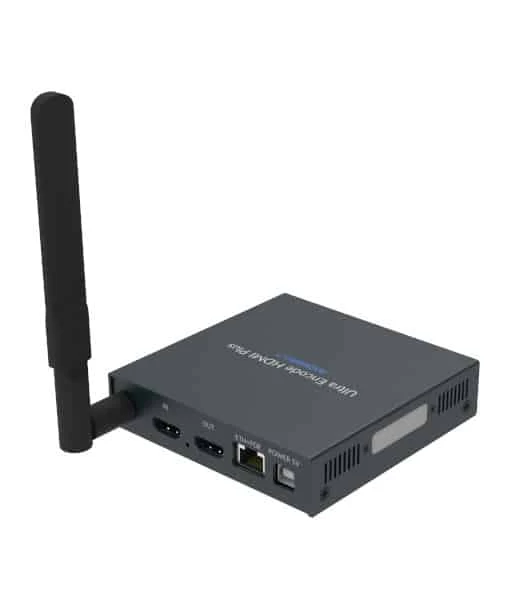

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 5

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 6

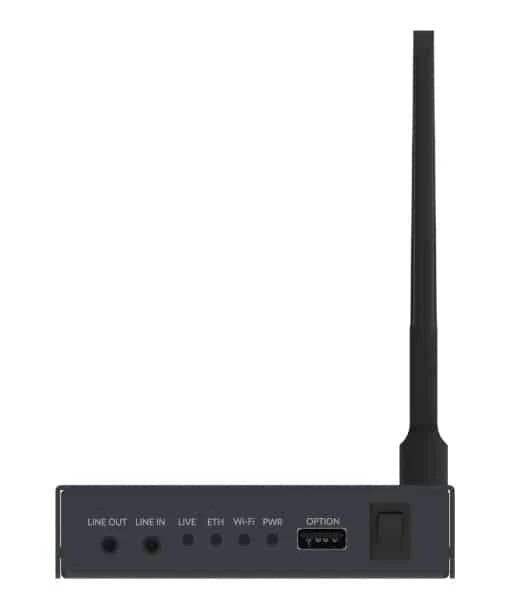

Magewell Ultra Encode HDMI Plus Universal 4K Encoder - Afbeelding 7

Oorspronkelijke prijs was: 336,00 €.Huidige prijs is: 98,99 €.

The Magewell The Ultra Encode HDMI Plus can encode at resolutions up to 4096×2160 to NDI|HX2, NDI|HX3, and H.264/H.265, and live streaming via Wi-Fi or Ethernet.

Live Streaming & Recording Encoder
HDMI Input & Loop-Through
Support for H.264/H.265, NDI|HX2/NDI|HX3
Supports up to DCI 4K60 4:2:0

Artikelnummer: MA-531500000 Categorieën: Encoders for Live Streaming, Live Streaming, Small Form Factor Encoders

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Magewell Ultra Encode HDMI Plus Universal 4K Encoder

Stream up to DCI 4K video from your HDMI source device with the Ultra Encode HDMI Plus Universal 4K Encoder from Magewell.

The compact encoder supports input resolutions up to DCI 4K60 with a 4:2:0 color space and DCI 4K30 with 4:4:4 or 4:2:2, encoded to NDI|HX2, NDI|HX3, and H.264/H.265, and live streamed via Wi-Fi or Ethernet to a wide range of IP destinations, including Facebook Live, Twitch, and YouTube.

The unit offers an HDMI input and respective loop-through output as well as two USB-A ports that enable you to add optional modems to facilitate 4G/5G streaming worldwide. Supported streaming protocols include various flavors of NDI, RTMP, RTMPS, SRT, and HLS. The unit can be remotely controlled via a web browser on a computer or smartphone and powered via PoE (Power over Ethernet), and it can be mounted using the included T-bracket.

KEY FEATURES

HDMI input and loop output
Gigabit Ethernet and Wi-Fi 802.11 a/b/g/n/ac
Support RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, NDI|HX3, HLS, TS over UDP, and TS over RTP/TVU ISSP streaming protocols
Dual stream encoding with main stream and sub-stream
Eight overlays for both main and sub-streams
Specify main stream or sub-stream for each streaming session
H.264 and H.265 (HEVC) video codecs
AAC audio encoder with 3.5mm analog input and output
A Web UI remote network management system provides webpage configuration and device functions
Optional USB 4G/5G mobile broadband modem

INTERFACE ULTRA ENCODE HDMI Plus

SPECIFICATIONS ULTRA ENCODE HDMI Plus

Model	Ultra Encode HDMI Plus
Input Features	Video Supports HDMI 1.4a, DVI-D Typical resolution/frame rate: 4096×2160 30fps 4:4:4/4:2:2 4096×2160 60fps 4:2:0 2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720×576 25p/50i (PAL SD) 720×480 29.97p/59.94i (NTSC SD) Color depth: 8/10/12-bit Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Custom EDID Audio HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
Encoding Features	Video Bitrate: NDI® HX3: up to 62.0Mbps, down to 1.5Mbps Others: up to 32.0Mbps, down to 256kpbs Dual-stream encoding: main stream and sub stream Main stream Resolution/frame rate: 4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 Sub stream Supports enabling/disabling sub stream Resolution/frame rate: 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 264/H.265 (HEVC) Codec: System timecode or RP–188 standard timecode for SEI Message setting 265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Image rotation: 0°, 90°, 180°, 270° Cropping Output 3D video Audio Encode up to 4 audio streams Supports up to 8 source channels Supports mapping between source channels and encoded audio channels Contains 1 x 8-channel stream and 3 x 2-channel streams Bitrate: 256/192/128/96/64/48/32/16 kbps Output source embedded audio and line in through LINE OUT
Streaming Features	Natively supports streaming to: Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event. Supports streaming protocols: RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI®\|HX2/NDI® HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®\|HX2 sessions (if included) Supports 1 NDI® HX3 sessions exclusively Supports specifying a video stream and an audio stream for each streaming session Supports live stream scheduler
Recording Features	Supports setting and managing recording function and tasks Supports recording to local storage Supports format and performance test Automatically upload files to remote file storage platforms including FTP server, Google Drive, and Dropbox Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording Supports saving recording files in MP4, MOV or TS format Supports specifying a video stream and an audio stream for each recording task Supports customizing recording file name and prefix Supports splitting recording files by time MP4, MOV: up to 4 hours TS: no limit Supports exporting or downloading files through Web UI Supports recording scheduler
Web UI Management	Access Web UI via PC and smartphone View real-time device status Preview encoded video Set input sources Customize encoding parameters Manage streaming destinations, start/stop streaming, view streaming status Manage recording tasks and recorded files Set up to 8 overlays for each stream, including text, picture, and clock Update firmware Supports registering Magewell Control Hub for centralized management Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
API	Provides APIs for 3rd party control system
Network Interfaces	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T IEEE 802.3af PoE Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported 4G/5G USB modem (not supplied) USB Net
Input/Output Interfaces	2 x HDMI ports 1 x Input 1 x Loop-through 1 x 3.5mm LINE IN 1 x 3.5mm LINE OUT 2 x USB Type-A
Storage	USB flash drive (not supplied): FAT32, NTFS, exFAT NAS (not supplied): NFS/CIFS
LED Indicators	LEDs indicating the status of power, input signal, streaming, Ethernet, Wi-Fi connection NDI tally lights (preview-green, program-red)
Power Supply and Consumption	DC 5V/3A Max power consumption: ~8.68W
Form Factor	106.6mm x 106.2mm x 25mm
Screw Mounting Hole	2 x M3 threaded hole A standard 1/4″-20 socket provided by T-bracket
Working Environment	Operating temperature: 0 to 50 deg C Storage temperature: –20 to 60 deg C Relative humidity: 5% to 90% non-condensing
