Oorspronkelijke prijs was: 394,00 €.95,99 €Huidige prijs is: 95,99 €.
The Magewell Ultra Encode SDI is ideal for broadcasting your Full HD video and audio to Facebook, YouTube or Twitch, as well as your own site, with multiplatform distribution. The Web UI gives you access to device work status, preview window and tabs for streaming settings, analytics, and stream health monitoring.
- SDI input/Loop
- H.264/H.265
- SRT, NDI|HX, HLS & more
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

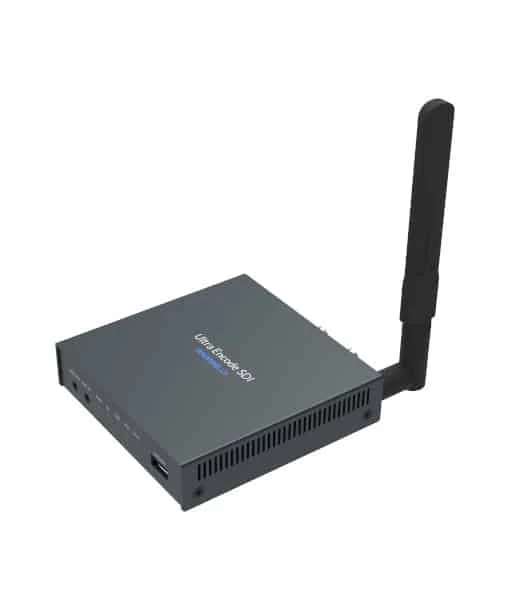

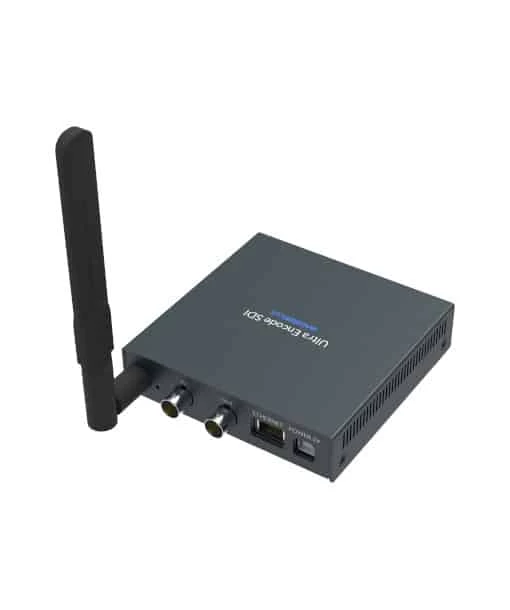

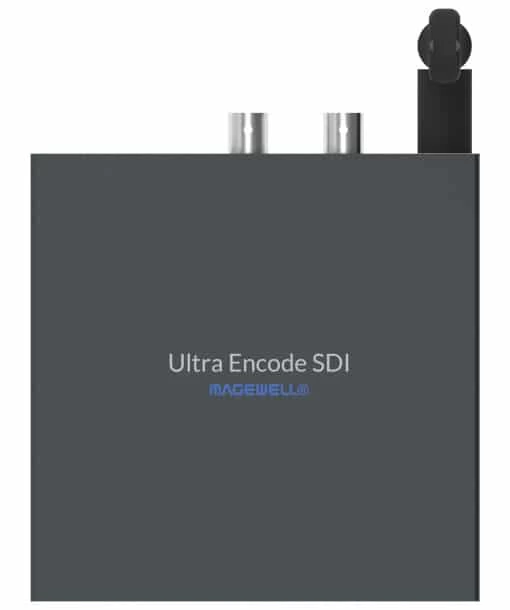

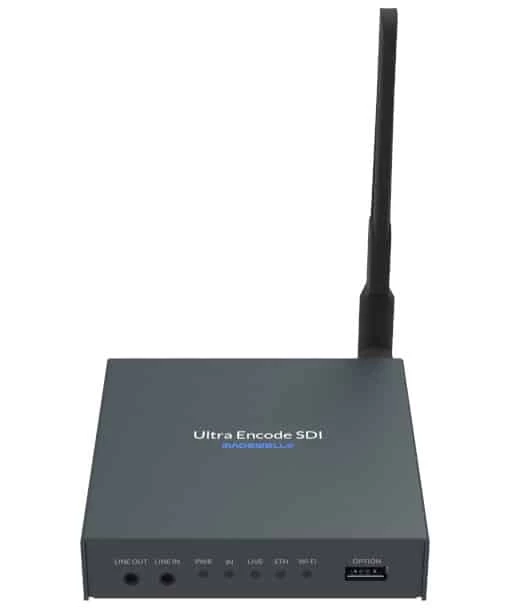

Magewell Ultra Encode SDI
The Magewell Ultra Encode SDI offers integrators, streaming professionals an easy to use encoding, recording live streaming, AV over IP, remote contribution, IP production workflows and much more. The Ultra Encode SDI supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity. The encoder converts input signal to custom format, using H.264/H.265 video encoders and AAC audio encoder. It can push multiple streams to RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS(push)/TS over UDP/TS over RTP video servers simultaneously that you have access to.
KEY FEATURES
- Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS
(push)/TS over UDP/TS over RTP streaming protocols - Dual stream encoding
- Multi-streaming to various video platforms simultaneously
- Video encoders – H.264 and H.265 (HEVC)
- Audio encoder – AAC
- Web UI – a remote network management system

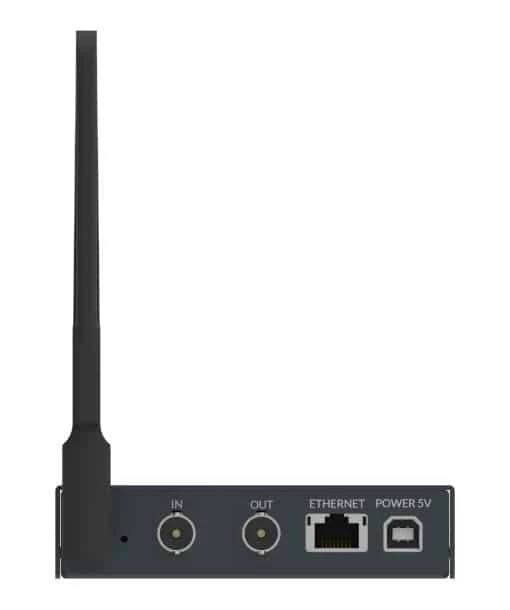

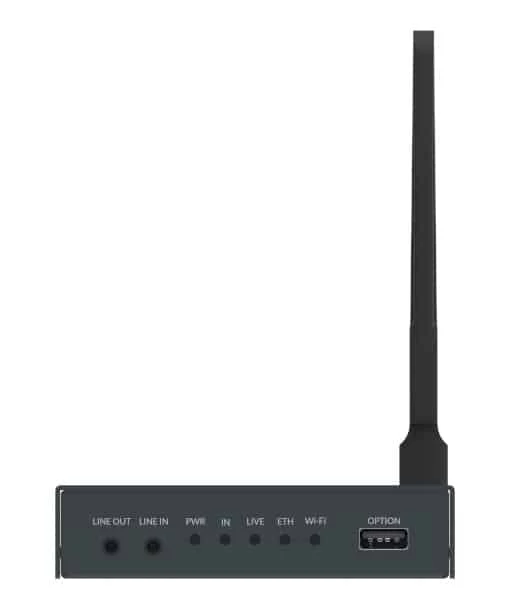

INTERFACE ULTRA ENCODE SDI
SPECIFICATIONS ULTRA ENCODE SDI
| Model | Ultra Encode SDI |
| Input Features | Max input & loop-through signal: 2048×1080 60fps
Supported inputs include: 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720×576 25p/50i (PAL SD) 720×480 29.97p/59.94i (NTSC SD)
8/10/12-bit color
Input & loopthrough 16-Channel SDI embedded
Audio: Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough: SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards |
| Encoding Features | Dual stream encoding: main stream and sub stream
Max bitrates: Main Stream – 16Mbps Sub Stream – 2Mbps
Supported resolutions: HD: 1920×1080, 1600×1200, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768 SD: 960×540, 800×600, 768×576, 720×576, 720×540, 640×480, 640×360, 480×360, 480×270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC audio at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT |
| Streaming Features | Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP Allow simultaneous sessions over the same streaming protocol.
Streaming protocols are as follows: · Up to 6 sessions of TS over RTP and TS over UDP simultaneously
· Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
· Up to 6 sessions of RTMP and RTMPS simultaneously · Stream only 1 session of HLS (push), RTSP, or NDI|HX2
Total bitrates for different network connection types: · 24Mbps for all streams is recommended for a wired network connection
· 16Mbps for all streams is recommended for a wireless network connection
Specify streaming main stream or sub stream for each session |
| Web UI Management | · Provide comprehensive information regarding the system information of device and working status in real-time
· Video thumbnail preview · Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection · Update firmware · Export configuration profiles of the device · Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers · Provide HTTP APIs |
| Network Interfaces | · Wired Ethernet network: 10/100/1000Mbps
· Wi-Fi 802.11 a/b/g/n/ac · 3G/4G USB mobile broadband Modem (not included) |
| Input/Output Interfaces |
|
| LED Indicators | LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection |
| Power Supply and Consumption | DC 5V/2A
Max power consumption: ~7.6 W |
| Form Factor | 106.6mm x 106.2mm x 25mm |
| Accessories | AC adapter
Wi-Fi antenna USB 2.0 Type B cable T-bracket |
| Screw Mounting Hole | 2 x M3 threaded hole
A standard 1/4″-20 socket provided by T-bracket |
| Working Environment | Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing |
INCLUDED BY DEFAULT
- Magewell Ultra Encode SDI
- 1x Power Adapter (KR) x1
- 1x USB 2.0 Type B cable x1
- 1x Wi-Fi Antenna
- T-bracket
| Brand | Magewell |
|---|---|
| MPN | 53050 |
| EAN | 6936572401379 |
| UPC | 0814395021379 |
| SKU | MA-530500000 |
