The Magewell USB Capture HDMI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via an HDMI 2.0 input. It allows you to capture from cameras, game consoles, and various other devices directly to your Windows, Mac, Linux, or Chrome computer.
- Capture up to DCI 4K to Your Computer
- Capture from Cameras/Game Consoles/Etc.
- Supports RGB 4:4:4, YCbCr 4:4:4 & 4:2:2

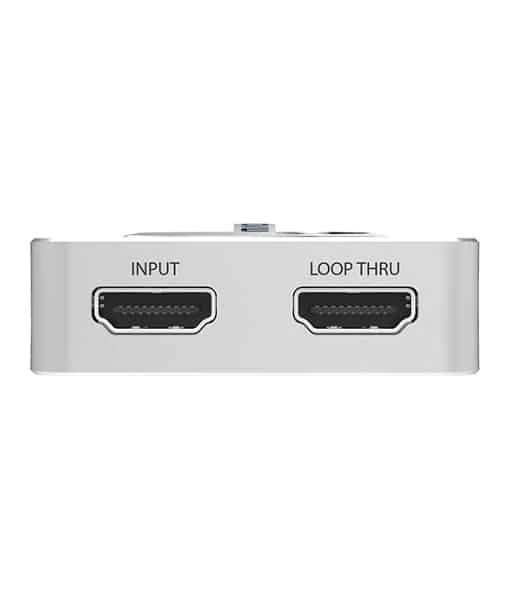

- HDMI Input & Loop-Through
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

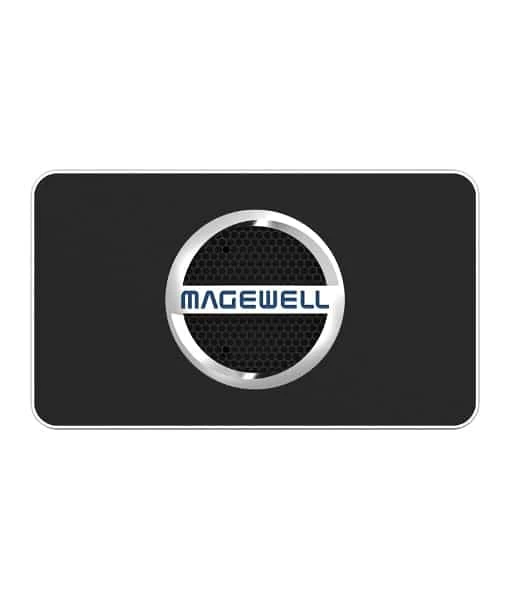

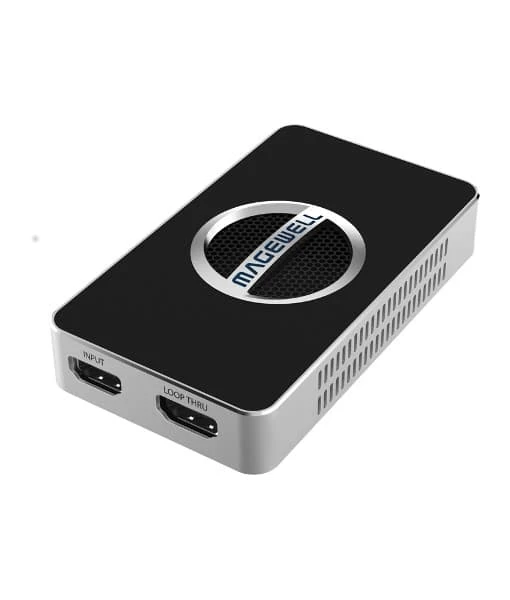

Magewell Pro Capture HDMI 4K Plus
The Magewell USB Capture HDMI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via an HDMI 2.0 input. It allows you to capture from cameras, game consoles, and various other devices directly to your Windows, Mac, Linux, or Chrome computer. It also features an HDMI loop-through for local monitoring, and 3.5mm audio input and output for capturing external audio and extracting embedded audio.
The device also offers a variety of processing and other features, including resolution scaling and deinterlacing. It also has a status LED for displaying the status of the input, including idle, input signal locked, memory failed, or FPGA configuration.
INTERFACE
KEY FEATURES
- Capture up to DCI 4K to Your Computer
- Capture from Cameras/Game Consoles/Etc.
- Supports RGB 4:4:4, YCbCr 4:4:4 & 4:2:2
- HDMI Input & Loop-Through

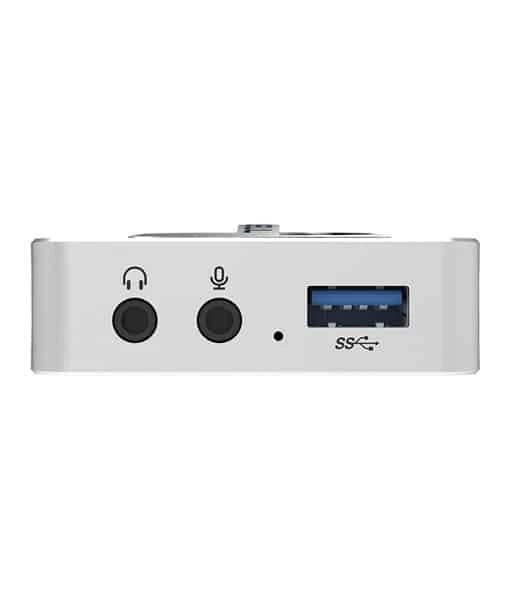

- 3.5mm Audio I/O (Capture/Extract)
- USB 3.0 Computer Interface
- Works with Windows, Mac, Linux, Chrome
- Scaling, Multiple Color Spaces, and More
SPECIFICATIONS MAGEWELL USB CAPTURE HDMI 4K PLUS
| Supported OS | · Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
· Linux (Ubuntu 12.04–16.10, CentOS 7) · OS X 10.9–10.11 · macOS 10.12 · Chrome OS |
| Supported APIs | · Windows
o DirectShow o Wave API/DirectSound/WASAPI · Linux o V4L2 o ALSA · OS X/macOS o QuickTime o AV Foundation |
| Supported Software | · VLC
· VirtualDub · OBS · XSplit · vMix · VidBlaster · Wirecast · Microsoft Media Encoder · Adobe Flash Media Encoder · Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software |
| Input Interfaces | · HDMI
o DVI-D 1.0 o HDMI 1.4 o HDMI 2.0 · 3.5mm audio jack o Microphone interface |
| Host Interfaces | · USB 3.0
o compatible with USB 2.0 o compatible with USB 3.1 Gen 1 |
| Output Interfaces | · 3.5mm audio jack
o headphones interface |
| Loop-through Interface | · HDMI
o HDMI loop-through interface |
| Input Features | · Support for input video resolutions up to 4096×2160 |
| HDMI Specific Features |
|
| Analog Audio Features | · Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
· Capture of analog audio via 3.5 mm microphone interface · Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer. |
| Video Capture format | · Support for capture resolutions up to 4096×2160
· Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.) o 1920×1080 YUY2 (up to 90fps) o 3840×2160 NV12 (up to 30fps) · Support for NV12 & l420 4:2:0 8-bit (up to 4096×2160) · Support for YUY2 & UYVY4:2:2 8-bit (up to 4096×2160) · Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048×2160) · The default capture formats are YUY2 & NV12. More capture format can be set using USB Capture Utility. |
| Video Processing Features | · Video processing pipelines with 640 Mpixels/s processing bandwidth
· Video cropping · Video scaling · Video de-interlacing o Weave o Blend top & bottom field o Top field only o Bottom field only · Video aspect ratio conversion o Auto or manual selection of input aspect ratio o Auto or manual selection of capture aspect ratio o Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) · Video color format conversion o Auto or manual selection of input color format & quantization range o Auto or manual selection of capture color format, quantization range & saturation range o Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats o Support for Limited or Full quantization range o Support for Limited, Full & ‘Extended gamut’ saturation range · Video frame rate conversion · Vertical flip and mirror |
| Multiple devices on one computer | · Support for connecting multiple USB devices to one system
· Support for setting the device serial number as the device name shown in the system using USB Capture Utility |
| SDK | · The USB Capture SDK provide functions including signal status extraction, capture configuration, etc. |
| Firmware Upgrade | · Multiple devices in one system can be upgraded simultaneously |
| LED Indicator | · Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed. |
| Form Factor | · 98.1mm (L) x 56.8mm (W) x 17mm (H) |
| Power Consumption | · 5V max current: ~1.4A
· max power consumption：~7W |
| Working Environment | · Operating temperature: 0 to 40 deg C
· Storage temperature: –20 to 70 deg C · Relative Humidity: 5% to 90% non-condensing |
Recommended is the use of included Magewell USB 3.0 cable. Using any other similar cable might cause capture problems and even damage the capture device.
INCLUDED BY DEFAULT
- Magewell USB Capture HDMI 4K Plus
- USB 3.0 Cable
| Brand | Magewell |
|---|---|
| MPN | 32090 |
| UPC | 0814395020907 |
| EAN | 6936572400907 |
| SKU | MA-320900000 |
