Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up or down-covert the input signal to the set resolution.
- Supports up to 1920p60 Resolution
- Hardware Scaling and Deinterlacing
- Performs Frame Rate Conversion
- Plug-and-Play Using Existing Drivers
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

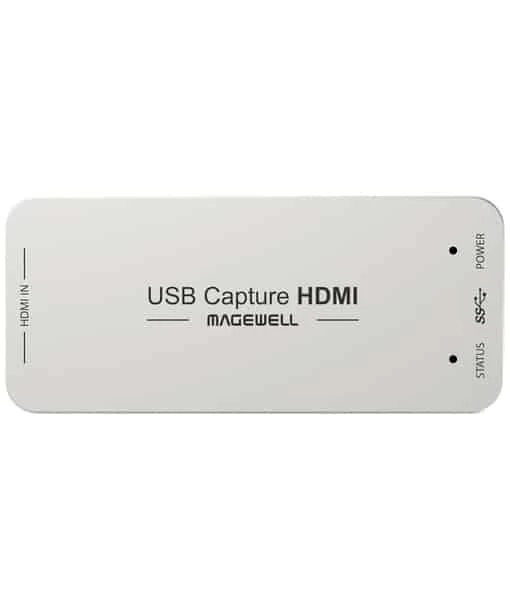

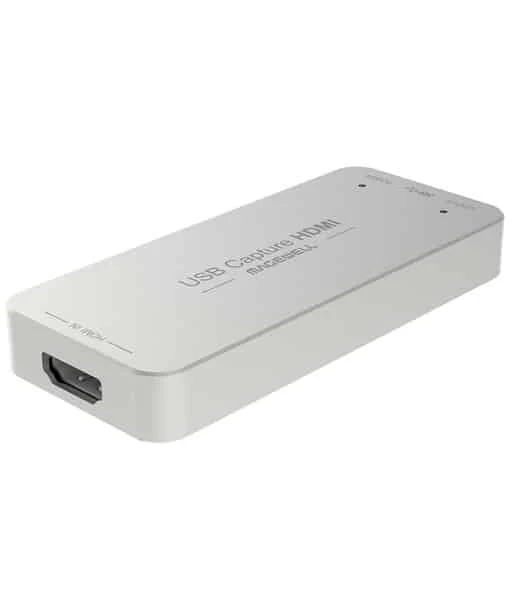

Magewell USB Capture HDMI Gen 2
Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer’s CPU.
Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don’t have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
INTERFACEÂ
KEY FEATURESÂ
- No drivers needed for Windows, Mac, or Linux
- Automatically determines input video format and converts it to the specified output size and frame rate
- Automatically converts input audio formats to 48 kHz PCM stereo audio
- 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied
- Supports up to 1920 x 1200p60 Resolution
- Hardware Scaling and Deinterlacing
- Performs Frame Rate Conversion
- Plug-and-Play Using Existing Drivers
- Backward Compatible with USB 2.0
- Onboard RAM for Stream Buffering
SPECIFICATIONS MAGEWELL USB CAPTURE HDMI GEN 2
| Model | Magewell USB capture HDMI Gen2 |
| Host Connection | USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) |
| Input | |
| Video Input Connectors | 1 x HDMI (DVI / HDMI 1.4a) Female |
| 1 x HDMI (DVI / HDMI 1.4a) Female | |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC) 2048 x 2160 1080p: 60/75 fps |
| Embedded Audio Input | HDMI: 2-Channel |
| Hardware | |
| OS Compatibility | Windows 7 or Later macOS 10.9 or Later Linux Chrome OS |
| General | |
| Power Consumption | 5 VDC at 0.5 A (2.5 W) |
| Operating Temperature | 0 to 50°C |
| Dimensions | 92.2 x 40.2 x 12.3Â mm |
INCLUDED BY DEFAULTÂ
- Magewell USB capture HDMI gen 2 converter
- USB 3.0 Cable (Part number: 90062)
| Weight | 0,2 kg |
|---|---|
| Dimensions | 12,5 × 12,5 × 2,5 cm |
| Brand | Magewell |
| MPN | 32060 |
| EAN | 6936572400372 |
| UPC | 8143950200372 |
| SKU | MA-320600000 |
