Magewell USB Capture HDMI Plus

Magewell USB Capture HDMI Plus

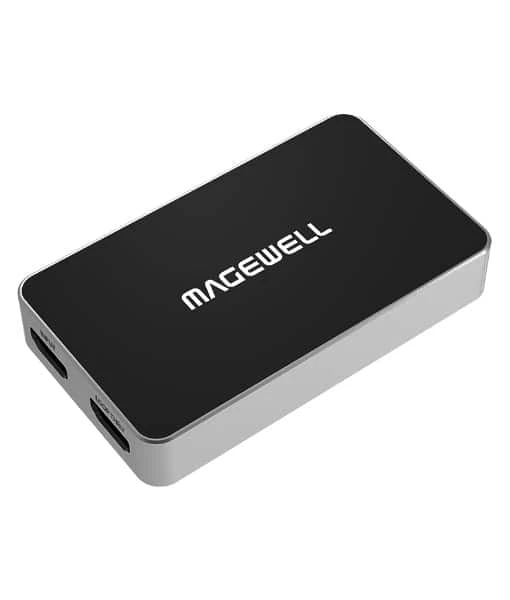

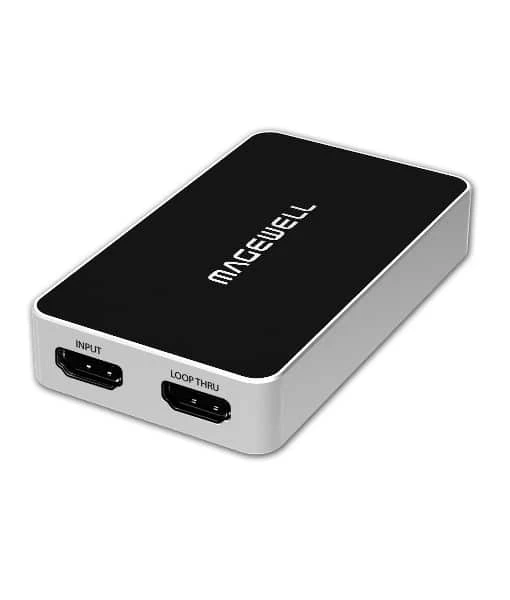

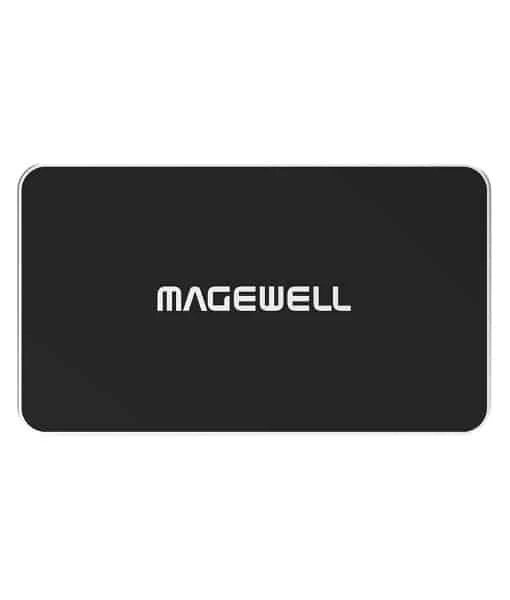

The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.

The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week.

INTERFACE



KEY FEATURES

• Capture Device with Built-In Auto Scaler
• Supports Input Resolutions up to 4K
• Scales to 2K for Recording/Streaming

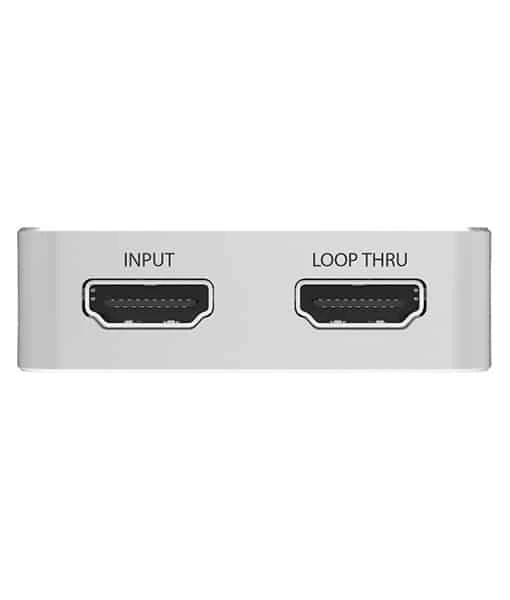

• Loop-Through HDMI Port for Monitoring

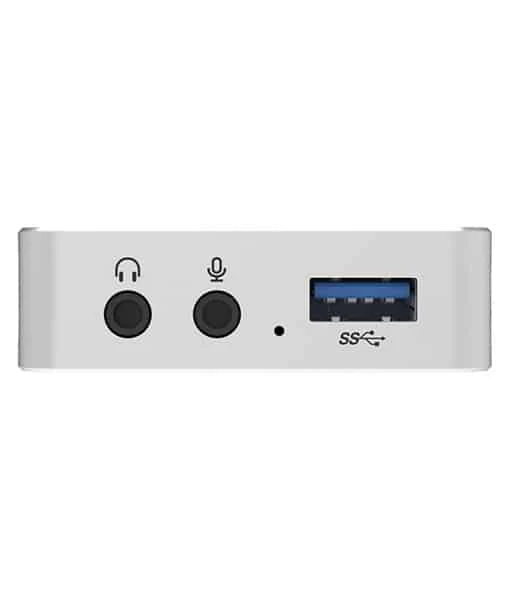

• Mic / Headphone Jacks
• Compatible with Windows, Mac, and Linux
• Can Be Operated 24/7
• Deinterlacing, Image Control
• Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

SPECIFICATIONS

Host Connection

USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors	1 x HDMI (HDMI 1.4) 1 x DVI-D DL
Input Video Format	HDMI (4:4:4/4:2:2) DCI 4K: 30 fps HDMI (4:2:0) DCI 4K: 60 fps
Audio Input Connectors	1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone

Output

Audio Output Connectors

1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone

Hardware

OS Compatibility

Windows 7 or Later Linux macOS 10.9 or Later

INCLUDED BY DEFAULT

• Magewell USB Capture HDMI Plus
• Custom USB 3.0 Cable
