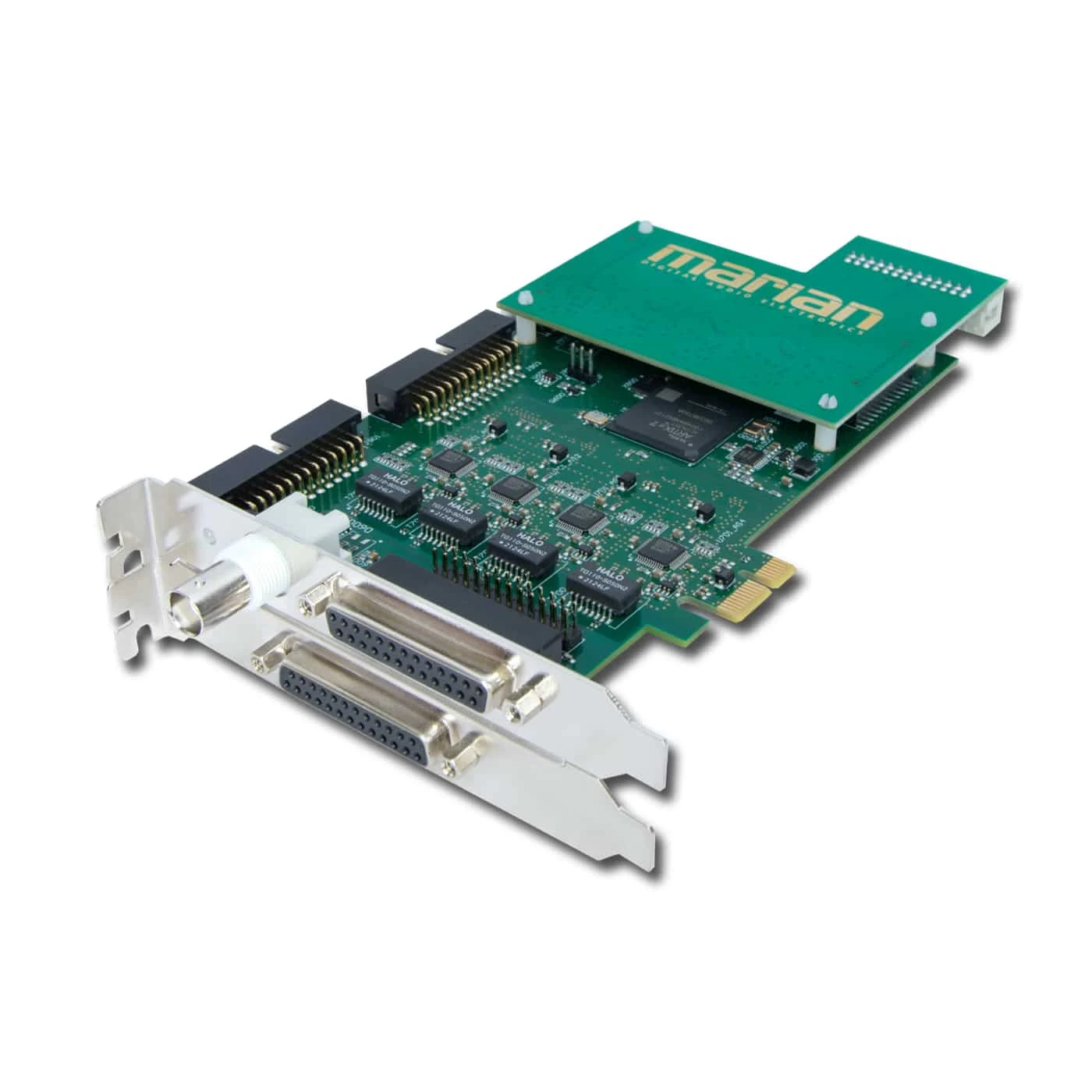

Marian Clara Dmaj 32-Channel AES/EBU PCIe Sound Card
The Marian DIGITAL AUDIO ELECTRONICS Clara Dmaj 32-Channel AES/EBU PCIe Sound Card lets you connect 32 AES/EBU audio channels in the smallest space possible—only one PCIe-slot width. The AES/EBU I/Os 1 to 4 break out on a D-Sub connector and wordclock BNC input connector located on the motherboard. AES/EBU I/Os 5 to 8 break out on a D-Sub connector that has no active electronics. Consequently, it can be freely placed in the computer’s case, separate from the motherboard. Or, it may take any place next to other PCIe components with a slot bracket.
With high-end converter chips supporting sample rates of up to 24-bit / 192 kHz resolution, an outstandingly accurate clock, and rugged construction, the Clara Dmaj reliably delivers state-of-the-art sound quality for demanding applications in professional studios and installations. The card features switchable real-time sample-rate conversion (SRC) that makes it easy to connect almost any type of AES/EBU sound source, offering maximum flexibility for easy integration into complex digital sound systems. The onboard BEAST DSP mixer provides enough processing power to create a versatile latency-free mixing console with EQ for all input signals. If several Clara Dmaj cards are installed in a computer system and synchronized via the TDM SyncBus, the cards behave like a single device within the ASIO application.
Precision Clock
The internal clocking of the Clara sound system has an amazingly low jitter of less than one nanosecond. This is beneficial to the audio quality of the system and that of any connected digital device. Often the clock of the Clara D is many times more precise than the internal clock of the connected device and thus makes the purchase of a separate clock generator unnecessary.
The highest Audio Quality
The Clara Dmaj is the elegant partner for pure digital signal processing of many AES/EBU signals. HD audio quality with 24 Bit and sample resolutions of up to 192 kHz guarantee a pristine sound. High-quality sample rate converters provide flexible clock management while maintaining a full dynamic range of 144 dB.
Switchable Samplerate Converter (SRC)
The SRCs, which can be switched on via software, allow any digital input signal to be fed into the sound system regardless of samplerate and clock settings. Thus, even without separate synchronization lines, any digital devices may be connected effortlessly.
Sound system with a +
The “+” version includes an extension that adds a word clock input and output and 2 MIDI inputs and outputs to the sound system. This expansion card is connected to the sound card via a ribbon cable and can therefore be freely positioned in one of the slots of the computer housing.
Expansion options
If several Clara D are installed in one computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application. In the Beast Mixer, up to 32 audio signals can be exchanged with other Clara sound systems and thus also be integrated for the use with ASIO.
Fast and Reliable Multi-Client Driver Suite
The continuously enhanced driver includes multi-client support for ASIO 2.2 as well as multi-channel WDM audio / WASAPI with the lowest latencies in all software environments. This ensures that multiple audio applications can access the sound system simultaneously via the same or different driver interfaces.
Realtime Routing, Mixing and EQ
Each input signal of the sound system can be adjusted in volume and routed latency-free to any output. The BEAST DSP mixer also sums up to 64 signals to 8 different busses and plays them back on any number of outputs without delay. Furthermore, the BEAST Mixer adds playback signals from any DAW. All mix sums can be fed back to an application for recording. In each channel of the BEAST mixer there are 4 parametric EQ available for sonic processing.
Sound system with a +
The “+” version includes an extension that adds a word clock output and 2 MIDI inputs and outputs to the sound system. This expansion card is connected to the sound card via a ribbon cable and can therefore be freely positioned in one of the slots of the computer housing.
Expansion options
If several Clara D are installed in one computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application. In the Beast Mixer, up to 32 audio signals can be exchanged with other Clara sound systems and thus also be integrated for the use with ASIO.
KEY FEATURES
- 24 Bit / 192 kHz Resolution
- 8 AES/EBU In- and Outputs (32 Channels)
- 2 MIDI In- and Outputs (“+” version)
- Switchable Input SRC with 144 dB Dynamic Range
- 64 Channel DSP Mixing Desk with EQ
- Cascadeable (via TDM SyncBus)
- Compatible with current Thunderbolt PCIe Adapters
- Wordclock/Superclock Input
- Wordclock / Superclock Output (“+” version)
- Ultra Low Jitter
- Windows Drivers
- free life-long quality support
TECHNICAL SPECIFICATIONS
- PCIe Audio Interface
- 1 Lane (PCIe 1x) according to PCI Express Base Specification 2.1
- PCIe Busmaster DMA with Direct ASIO Support
- Samplerates 22 to 192 kHz
- Sample Resolutions of 8 to 32 Bit towards the Audio Application
- Switchable Input SRC with 144 dB(A) Dynamic Range and 1:16 / 16:1 Conversion
- Beast DSP powered
- 64 Freely configurable DSP Channels: Input, TDM- and Playsignals
- TDM SyncBus
- Multi-Card Support
- Wordclock / Superclock Input
- BNC Input: without DC offset, Schmitt-Triggered, Over Voltage Protection
- BNC Input Frequency Range: 0 to 30 Mhz
- BNC Input Impedance: 5 kOhm, Software Controlled Termination to 75 Ohms
- BNC Input Voltage Range: 1,5 Vss to 5,0 Vss
- Clock Jitter
- Synchronization Sources: Intern, WordClock/Superclock, AES/EBU; TDM SyncBus
INCLUDED BY DEFAULT
- marian DIGITAL AUDIO ELECTRONICS Clara Dmaj 32-Channel AES/EBU PCIe Sound Card
