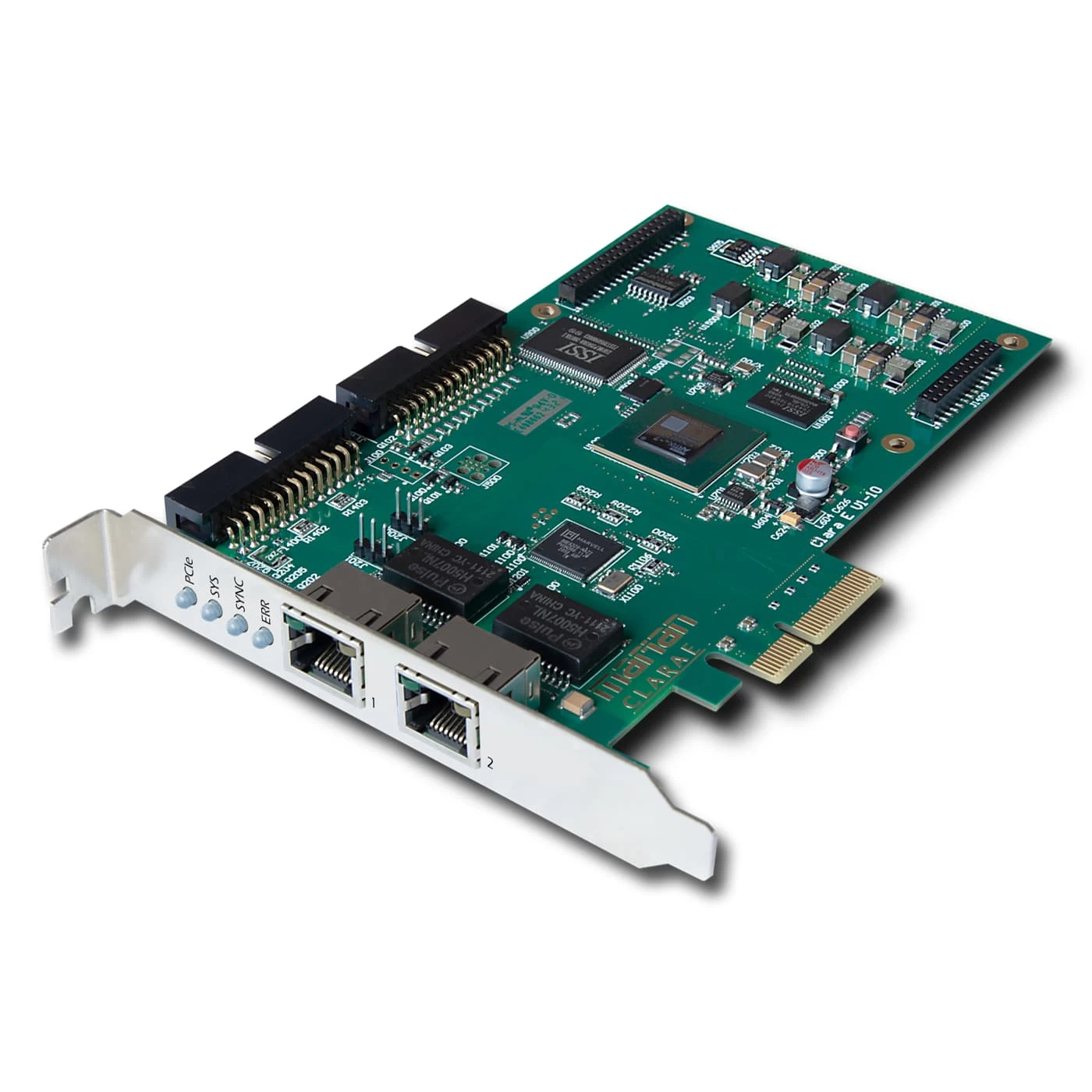

Marian Clara E 1024-Channel Dante PCIe Sound Card
The Marian Clara E 1024-Channel Dante PCIe Sound Card offers a cost-effective solution for up to 512 bidirectional Dante channels, all in the smallest space possible—only one PCIe-slot width. With high-end chips supporting sample rates up to 24-bit / 192 kHz resolution, latencies of 1 ms, AES67 support, auto configuration, the security of two redundant network ports, and rugged construction, the Clara E reliably delivers state-of-the-art sound quality for demanding applications in professional studios and installations.
The onboard BEAST DSP mixer provides enough processing power to create a versatile latency-free mixing console with EQ for all input signals. If several Clara E cards are installed in a computer system and synchronized via the TDM SyncBus, the cards behave like a single device within the ASIO application.
Dante Channel Count
Up to 256 Dante AoIP channels at 192 kHz (128 I/O)
Up to 512 Dante AoIP Channels at 96 kHz (256 I/O)
Up to 1024 Dante AoIP Channels at 48 kHz (512 I/O)
Fast and Reliable Multi-Client Drivers
The continuously enhanced driver includes multiclient support for ASIO 2.2 and multichannel WDM audio / WASAPI with the lowest latencies in all software environments. This ensures that multiple audio applications can access the sound system simultaneously via the same or different driver interfaces.
BEAST DSP Mixer for Realtime Mixing and EQ
The BEAST Mixer is a 64-channel DSP mixer integrated into the card’s hardware. It provides latency-free routing to any output. The BEAST mixer also sums up to 64 signals to 8 different buses and plays them back on any number of outputs. It also adds playback signals from any DAW—just like an analog mixer. All mix sums can be fed back to an application for recording. Each channel of the BEAST mixer offers 4 parametric EQs for sonic processing.
Expansion Options
If several Clara D cards are installed in a computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application. In the BEAST Mixer, up to 32 audio signals can be exchanged with other Clara sound systems and integrated for use with ASIO.
KEY FEATURES
- PCIe card with up to 512 bidirectional Dante channels (1024 channels)
- AES67 support
- 24-bit / 192 kHz high-quality audio
- Latency: 1 ms
- Dual RJ45 Gigabit Ethernet ports for redundancy
- Fanless design
- Dante Status LEDs and marian System Status LED
- The BEAST Mixer: 64-channel DSP mixing desk with EQ
- Cascadable via MARIAN-SyncBus compatible and TDM-SyncBus
- Compatible with Thunderbolt PCIe adapters
- Windows 7 to 11, Linux Ubuntu 20.04 to 20.04, Debian 11 to 12, Armbian 23.8.3
- Driver support: MME, WASAPI, ASIO 2.2, WDM Kernel Streaming, DirectSound
TECHNICAL SPECIFICATIONS
- PCIe Audio Interface
- 4 Lane (PCIe 4x) according to PCI Express Base Specification 2.1
- PCIe Busmaster DMA with Direct ASIO Support
- Up to 256 Dante AoIP channels @ 192 kHz (128 I/O)
- Up to 512 Dante AoIP Channels @ 96 kHz (256 I/O)
- Up to 1024 Dante AoIP Channels @ 48 kHz (512 I/O)
- Sample Resolutions of 8 to 32 Bit towards the Audio Application
- Support for AES67
- Beast DSP powered
- TDM SyncBus
- Multi-Card Support
- Wordclock / Superclock Input
- BNC Input: without DC offset, Schmitt-Triggered, Over Voltage Protection
- BNC Input Frequency Range: 0 to 30 Mhz
- BNC Input Impedance: 5 kOhm, Software Controlled Termination to 75 Ohms
- BNC Input Voltage Range: 1,5 Vss to 5,0 Vss
- Clock Jitter
- Dante™ Status LEDs and MARIAN System Status LED
INCLUDED BY DEFAULT
- Marian Digital Audio Electronics Clara E 1024-Channel Dante PCIe Sound Card
