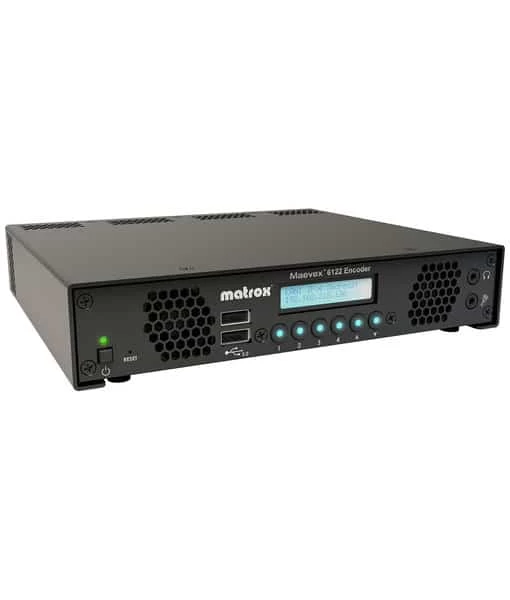

Matrox Maevex 6122 Dual 4Kp60 Encoder - Afbeelding 2

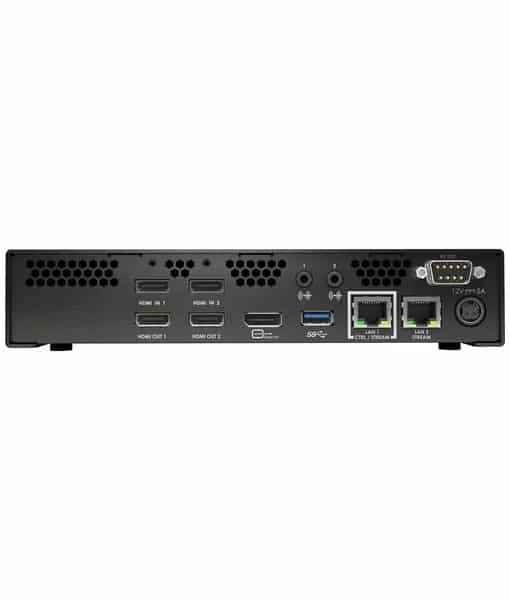

Matrox Maevex 6122 Dual 4Kp60 Encoder - Afbeelding 3

Oorspronkelijke prijs was: 381,00 €.Huidige prijs is: 97,99 €.

Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world.

Stream & Record HDMI/SDI Simultaneously
1 x SDI and 2 x HDMI Inputs
Multiple Preset and Custom Modes
Switcher Mode for Live Control

Artikelnummer: MA-MVXE612222 Categorieën: Encoders for Live Streaming, Live Streaming, Small Form Factor Encoders

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

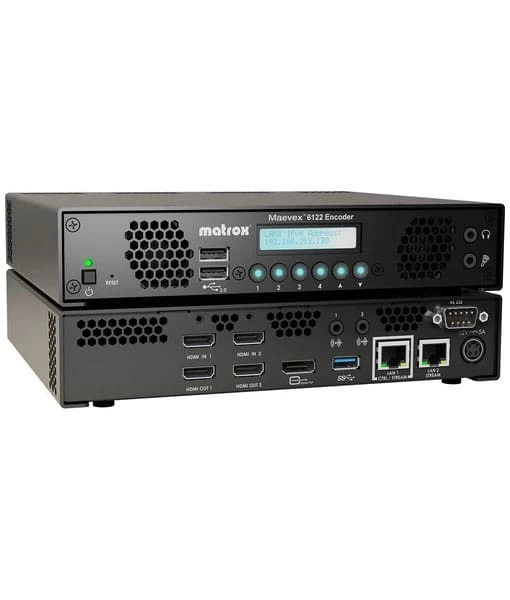

Matrox Maevex 6122 Dual 4Kp60 Encoder

The Maevex 6122 Dual 4K Encoder from Matrox is a dual HDMI video encoder that delivers 4K input capture and encode, and supports at least two 4K streams and recordings simultaneously. Providing zero-latency pass-through and multiple protocol support, including SRT and on-device HLS, the Maevex 6122 is a great solution for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual-network streaming or separate networks for control data and video data.

KEY FEATURES

Encode up to 3840 x 2160p60 Video
Dual Streaming with SRT and HLS
Zero Latency, H.264/MPEG-4/AVC Encoding
HDCP 2.2/1.4 Compliant, Rack-Mountable

SPECIFICATIONS

Product
Model	MVX-E6122-2
Form Factor	Standalone appliance Rack-mountable: 1U, 1/2 rack (horizontal)
Connectivity
Video Input	Number of channels: 2Formats: HDMI^® (Type A) with audio support
Video Output	Number of channels: 2Formats: HDMI® (Type A) zero latency pass-through
Audio Input	– 2x HDMI digital LPCM two-channel stereo audio – 2x 3.5 mm analog stereo audio • 1 Vrms (0 dBV) • 14.3 kΩ (gain = 0 dB) • -60 dB to +6 dB (default is 0 dB) – 1x 3.5 mm stereo mic in • 2.5 V • 1 Vrms (0 dBV) • 15 kΩ (gain = 0 dB), 5 kΩ (gain≥ 10 dB) • -74 dB to +41 dB (default is 0 dB)
Audio Output	– 2x HDMI digital LPCM two-channel stereo audio – 1x 3.5 mm headphones out• 1.2 Vrms (1.6 dBV) • 32 mW into 32Ω • -74 dB to 0 dB (default is 0 dB)
Network Connector	2x RJ45 with status LED indicators (1x control and stream, and 1x stream only)
USB Ports	2x USB 2.0 (front) 1x USB 3.0 (back)
RS-232	1x for IP to RS-232 control
Confidence Preview	1x DisplayPort 1.1 Maximum resolution: 1920×1080
Multi-Unit Support	Yes
Performance
Color Space and Chroma Sub-Sampling	RGB and YUV 8- and 10-bit support Color space conversion support4:0:0 (8-bit and 10-bit) 4:2:0 (8-bit and 10-bit) 4:2:2 (8-bit) 4:4:4 (8-bit)*1080p60 max
Video Input Resolutions	2x 3840×2160 @60Hz or 2x 4096×2160 @60Hz
Video and Audio Processing
Video Scaling	Yes
Video Compositing	Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP), quadrant
HDCP Support	Only available between Maevex 61X2 Encoders and Maevex 6152 Decoder
Audio Encoding Format	MPEG-4 AAC-LC/HEv1/HEv2
Audio Output Format	AAC, PCM, Stereo, and Mono
Audio Sampling Frequency	32 kHz 44.1 kHz 48 kHz
Audio Bitrates	Up to 144 Kbps (AAC-HEv2) Up to 288 Kbps (AAC-HEv1) Up to 576 Kbps (AAC-LC)
Codec
Video Encoding Formats	H.264/MPEG-4 Part 10 (AVC)
Encoding Profiles	Baseline (BP) Main (MP) High (HiP) High 10 (Hi10P) High 4:2:2 (Hi422P) CAVLC 4:4:4 intra (44) High 4:4:4 predictive profile separate plane (Hi444PP)
Encoder Bitrates Range	15 Mbps (default) 50 Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on number of streams and features enabled.)
Encoding Rate Control	Adjustable GOP size Constant Bitrate (CBR) Favor quality and optimize for desktop or latency Variable Bitrate (VBR)
Encoding Level	Up to 5.2
Encoding
Encoding Capability	4:2:0* 2x 3840×2160 @60Hz 1x 4096×2160 @60Hz 4x 3840×2160 @30Hz 3x 4096×2160 @30Hz 8x 1920×1080 @60Hz 16x 1920×1080 @30Hz4:4:4* 1x 3840×2160 @30Hz 1x 4096×2160 @30Hz 2x 1920×1080 @60Hz 3x 1920×1080 @60Hz 6x 1920×1080 @30Hz*Each encoding capability is independent of the others listed, and excludes any additional processing such as compositing, scaling, etc. Content can affect results. For more details and encoding capability support, contact Matrox.
Network
Network Standard	100/1,000 base-T Ethernet Auto speed Half/full duplex
Routing Scheme	Unicast Multicast Multi-unicast
IP Addressing	IPv4 IPv6 DHCP (default) and static IP
Streaming Protocols	HLS MPEG2.TS over UDP RTMP RTP/RTCP (both required) over UDP RTSP (TCP), RTCP & RTP (UDP) – all required RTSP over TCP (interleaved) SRT
Command and Control	HTTPS over TCP UPnP (discovery)
Recording
File Format	MP4 MOV fMP4
Filename	Customizable prefix (optional)
Timestamp	Automatic in filename
Programmability	Duration File frequency Maximum file length Start date and time
Recording Locations	Local USB ports for USB flash drive and external hard drive 2x USB 2.0 (front) and 1x USB 3.0 (back) Shared network drive or NAS
Physical
Product Dimensions	8.53 (L) x 7.52 (W) x 1.68 (H) inches 21.7 (L) x 19.1 (W) x 4.3 (H) cm
Unit Weight	Device only ~ 1.5 kg. With accessories and packaging ~ 3 kg.”
Noise Emission	~25 dB at full stream/record capacity
Hardware & Software
Hardware Included	Maevex 6122 Dual 4K Encoder Appliance Power Supply 100-240 VAC in, 12 VDC out, 60W DIN4 locking power connector Power Cords Included (US, EU, UK, Aus/NZ)
