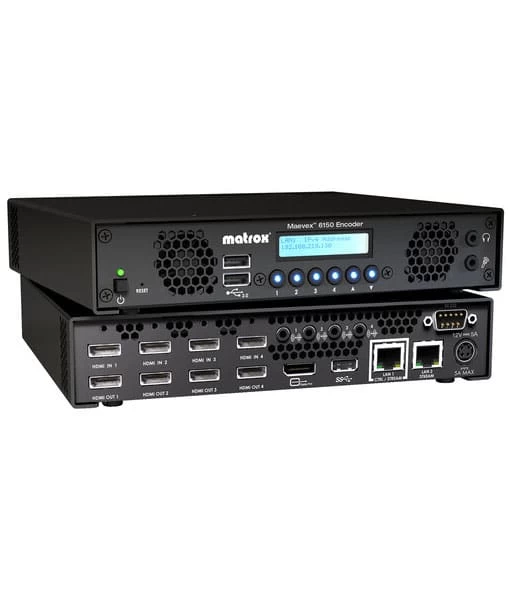

Matrox Maevex 6152 Quad 4K Enterprise Encoder

The Maevex 6152 Quad 4K Enterprise Encoder from Matrox is a quad HDMI video encoder that delivers 4K60 input capture and encode, and supports at least four 4K streams and recordings simultaneously. The encoder features six streaming protocols, multiple chroma sub-sampling, adjustable encoding parameters, zero-latency pass-through, and compositing, all in a convenient, quiet, low power, rack-ready appliance that fits almost any encoding application. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications.

KEY FEATURES

• Quad 4K HDMI Input
• H.264 IP Encoding, 8-Bit 4:4:4 Support
• Low Latency, HDCP 1.4 and 2.2 Compliant
• HLS/MPEG2-TS/RTP/RTMP/RTSP/SRT Streaming

SPECIFICATIONS

Product
Model	MVX-D6152-4
Form Factor	Standalone appliance Rack-mountable: 1U, 1/2 rack (horizontal)
Connectivity
USB Ports	1x USB 2.0 (front) 1x USB 3.0 (back)
RS-232	1x for IP to RS-232 control
Performance
Color Space and Chroma Sub-Sampling	4:2:0 (8-bit and 10-bit) YUV 4:0:0, 4:2:0, 4:2:2, or 4:4:4 to RGB 4:4:4 8-bit
Video and Audio Processing
HDCP Support	Only available between Maevex 61X2 Encoders and Maevex 6152 Decoder
Audio Sampling Frequency	32 kHz 44.1 kHz 48 kHz
Audio Bitrates	Up to 576 Kbps (AAC-LC) Up to 288 Kbps (AAC-HEv1) Up to 144 Kbps (AAC-HEv2)
Codec
Encoder Bitrates Range	15 Mbps (default) 50 Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on number of streams and features enabled.)
Encoding Level	Up to 5.2
Video Decoding Formats	H.264/MPEG-4 Part 10 (AVC)
Decoding Profiles	Baseline Profile (BP) Main Profile (MP) High Profile (HiP) High 10 Profile (Hi10P) High 4:2:2 Profile (Hi422P) High 4:4:4 Predictive Profile Separate Plane (Hi444PP) CAVLC 4:4:4 intra (44)
Decoder Bitrates Range	50 Kbps to 120 Mbps (per stream)
Decoding
Decoding Capability	4:2:0* 2x 3840×2160 @60Hz 1x 4096×2160 @60Hz 4x 3840×2160 @30Hz 3x 4096×2160 @30Hz 8x 1920×1080 @60Hz 16x 1920×1080 @30Hz4:4:4* 1x 3840×2160 @30Hz 1x 4096×2160 @30Hz 2x 1920×1080 @60Hz 3x 1920×1080 @60Hz 6x 1920×1080 @30Hz*Each decoding capability is independent of the others listed, and excludes any additional processing such as compositing, scaling, etc. Content can affect results. Contact Matrox for more details and decoding capability support.
Network
Network Standard	100/1,000 base-T Ethernet Auto speed Half/full duplex
Routing Scheme	Unicast Multicast
IP Addressing	IPv4 DHCP (default) and static IP
Streaming Protocols	RTSP (TCP), RTCP & RTP (UDP) – all required RTSP over TCP (interleaved) SRT over UDP MPEG2.TS over UDP
Command and Control	HTTPS over TCP UPnP (discovery)
Physical
Product Dimensions	8.53 (L) x 7.52 (W) x 1.68 (H) inches 21.7 (L) x 19.1 (W) x 4.3 (H) cm
Unit Weight	Device only ~ 1.5 kg. With accessories and packaging ~ 3 kg.”
Noise Emission	~25 dB at full decode capacity
Additional Features	Push-button controls: • Menu, enter, scroll forward, scroll back • Choose output, content, and zoom to full screen
Hardware & Software
Hardware Included	Maevex 6152 Quad 4K Decoder Appliance 100-240 V a.c. in, 12 V d.c. out, 60W power supply Power cords (US, EU, UK, Aus/NZ) DIN4 locking connector
Accessories (sold separately)	Rack Mount Kit (RMK-19TR-A) • Rack mounting shelf (19 in / 48.26 cm) • Pan head Phillips screws (4x 10-32 x 3/4 in) • Pan head Phillips screws (4x 12-24 x 3/4 in) • Flat head Phillips screws (6x M3 x 6 mm)NRG Redundant Power Supply Unit• Rack tray with one NRG RPSU pre-installed (part number: NRG-5-1DB) • Rack tray with two NRG RPSU pre-installed (part number: NRG-5-2DB)
Software	PowerStream Plus (free download)* Compatible with Maevex 5100 Series and Maevex 6100 Series Network discovery Multi-encoding and recording management Multi-protocol management Frame rate management Resolution control Administrator and user credential management Scaling management SNMP supportMaevex 6100 Series RS-232 API (free download)* Control Maevex 6100 appliances via Crestron™, Kramer™, Extron™, or other tabletop touch-screen controllers. Access basic commands including list, start/stop streaming and recording, and device reboot.Maevex SDK for Windows and Linux* Full-access to entire feature set via SDK .NET 4.5.1 or higher, standalone library and Mono 5.2 or higher for LinuxMaevex REST API* Maevex 6100 Series REST API Available for lower-level development*Contact Matrox for more details.
Environmental
Power Consumption	45W
General
Supported Operating Systems (software)	Microsoft® Windows® 10 (64-bit) Windows Server® 2016 Windows 7 (32-bit, 64-bit) Windows Server 2008 R2 Windows Server 2019



INCLUDED BY DEFAULT

• Matrox Maevex 6152 Quad 4K Enterprise Encoder
