Matrox Monarch HDX Encoder

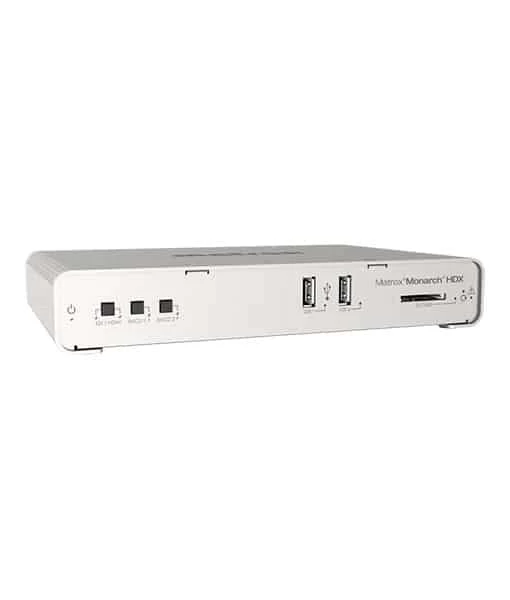

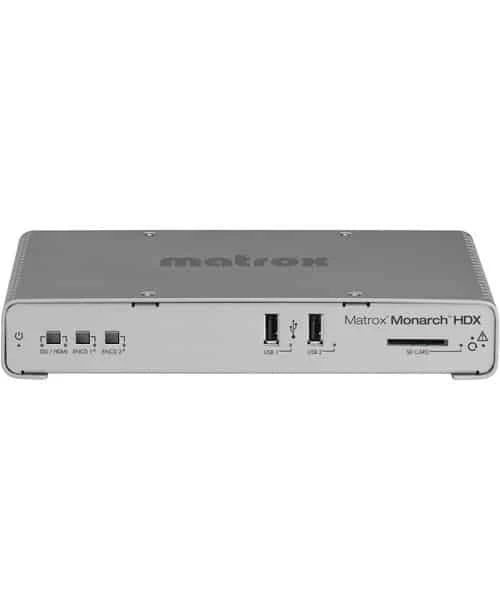

Matrox Monarch HDX Encoder Appliance

Simultaneously stream and record video from SDI and HDMI sources with the Matrox Monarch HDX. Expanding on the Monarch HD, the Monarch HDX adds SDI I/O to the already available HDMI I/O and dual-channel operation with independent H.264 encoders. This functionality makes it suitable for broadcast and other professional workflows that require streaming and recording of content, such as houses of worship and universities.

Having discrete encoders allows for each channel to function separately. You can stream to two different locations, record proxy and master files from the same input, and record two inputs simultaneously. You can also use one encoder for streaming video live while the other encoder records a high-quality copy of the broadcast for playback after the live stream. Whether you use it for live streaming or recording, the Monarch HDX can be integrated into SD or HD productions.

KEY FEATURES

• Dual-Channel H.264 Video Encoder

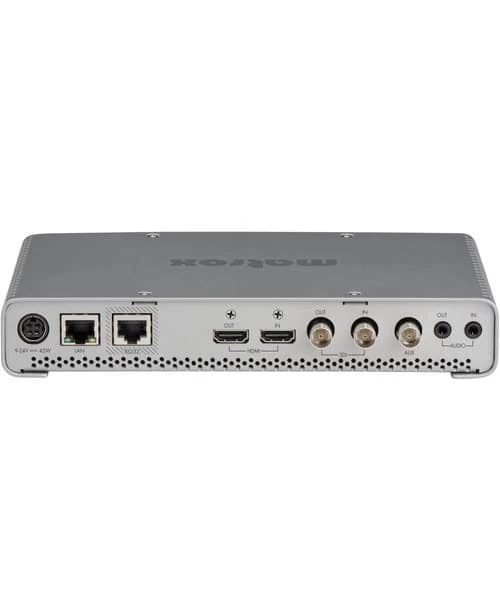

• SDI and HDMI I/O
• Supports HD and SD Resolutions
• 0 Frame Latency on SDI Loopthrough
• Discrete Processing on Each Channel
• Supports Flash and Wowza Platforms
• Independent H.264 Preview Stream
• Storage and Control over Network
• Recallable Presets

SPECIFICATIONS

HDMI Video Input	1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i 29.97/25 1280 x 720p 60/59.94/50
HDMI Video Output	Preview output of video input signal 2-frame delay from input to output SD video output as windowed in an HD output
SDI Video Input	1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080PsF 29.97/25 1920 x 1080i 29.97/25 1280 x 720p 60/59.94/50 720 x 576i 25 720 x 486i 29.97
SDI Video Output	Clean distribution of SDI incoming signal 0-frame latency passthrough of Input signal Hardware bypass relay present in SDI signal path is “closed” on power failure
Audio Input	Processes first two channels of audio embedded in HDMI or SDI input signals Unbalanced analog stereo input via 1/8″ jack (3.5 mm) Line level
Audio Output	Pass-through of 8 embedded audio channels in HDMI and SDI signals Unbalanced analog stereo output via 1/8″ jack (3.5 mm), pass-through of input Line level
Frame Synchronization	On both HDMI and SDI inputs.
Video Encoder	Built-in H.264/MPEG-4 Part 10 (AVC)
Resolutions	Selectable encoding resolutions: 128 x 128 to 1920 x 1080
Video Bit Rates	Single Encoder: Streaming mode – 20 Mbps Recording mode – 30 Mbps

Note: The maximum encoded frame rate is 60 fps full HD 1920 x 1080, with both encoders in use it will be 30 fps.

INCLUDED BY DEFAULT

• Matrox Monarch HDX
• Power Supply
• Power Cord
