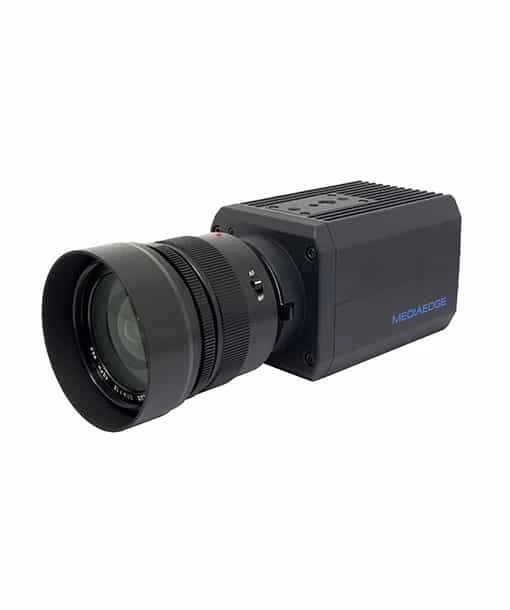

MediaEdge ME-BXC-CM100 QDCAM High-Speed Box Camera for Sports

The Mediaedge ME-BXC-CM100 QDCAM is a high-speed 4xFHD and UHD box camera, supporting both FHD 240/200fps and UHD 60/50 fps video formats. Highly recommended for sports coverage, QDCACM allows for UHD high resolution production or high speed shooting with a single camera.

QDCAM is equipped with a global shutter CMOS image sensor to avoid the rolling shutter distortion of quick moving objects.

High-Speed shooting: 1920×1080/239.8p, 200p: Continuous 4X high-speed video for smooth slow-motion replay. Quad link of SDI output.

Lens &AC adapter are sold separately.

High-Speed shooting: 1920×1080/239.8p, 200p

Continuous 4X high-speed video for smooth slow-motion replay or accurate sports analysis. Quad link of SDI can be connected to major slow-motion recording/players such as EVS, Avid etc.

High resolution shooting: 4096×2160/24p, 3840×2160/60p,50p

Use for 4K cinema production or UHD video production.

New synchronization system

A patent pending technology for multiple cameras exposure timing synchronization. Suitable as a multi-angle view system or sports judgement system.

Fan-less quiet camera.

Fan-less thermal control. No fan noise.

Optical transmission option using SMTPE opt-camera cable

Optical transmission option allows it to be used for sports broadcasting in a stadium or an arena.

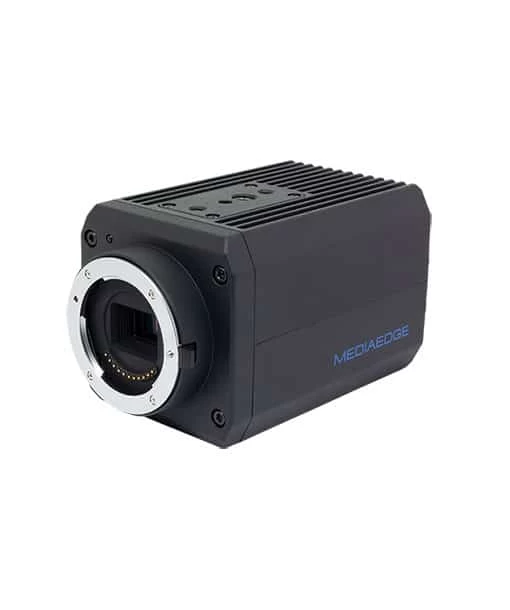

Micro four thirds lens mount

High quality picture lenses with various focal lengths can be used. Also, remote control of Iris and Focus are available.

Global shutter CMOS image sensor

No rolling shutter distortion. Suitable for shooting moving objects.

Applications

KEY FEATURES

• Continuous 4X high-speed video

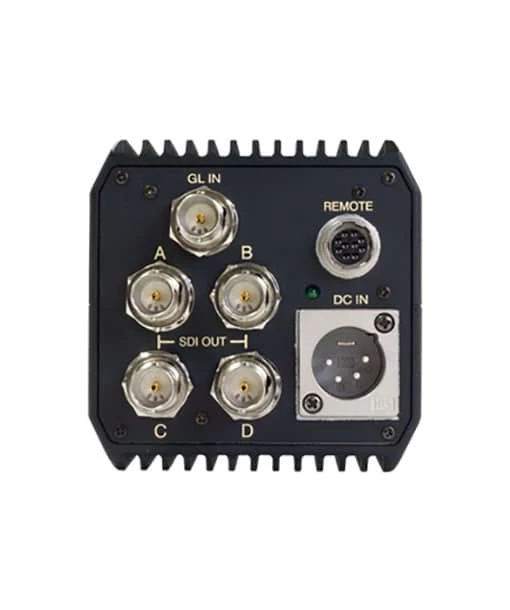

• Quad-link SDI
• 4K cinema/UHD video
• Optical transmission option using SMTPE opt-camera cable
• Micro four thirds lens mount
• Remote control of iris and focus available
• Global shutter CMOS sensor

SPECIFICATIONS MEDIAEDGE QDCAM

Image Pickup Device	1/1.1″ 8.8 million-pixel CMOS image sensor with Global shutter
Method	Single image sensor with Bayer color configuration
Lens Mount	Micro four thirds system
Output Video Format	4096×2160/24p, 23.98p (quad 1.5G-SDI) / 3840×2160/60p, 59.94p, 50p (quad 3G-SDI) / 3840×2160/24p, 23.98p (quad 1.5G-SDI) / 1920×1080/240p, 239.8p, 200p (quad 3G-SDI) 1920×1080/60p, 59.94p, 50p (3G-SDI) / 1920×1080/24p, 23.98p / (1.5G-SDI) / 1920×1080/59.94i, 50i (1.5G-SDI)
Genlock Reference	Tri-level Sync or Black Burst
Operating Temperature	-5° to 45°C
Weight	690g
Dimensions	75 x 75 x 127mm
Power Consumption	10W (excluding lens/controller power)
Source Voltage	DC 13.8V (DC 11.8V to 16.8V)

INCLUDED BY DEFAULT

• 1x MEDIAEDGE High Speed Box Camera*

*Lens and AC adapter not included
