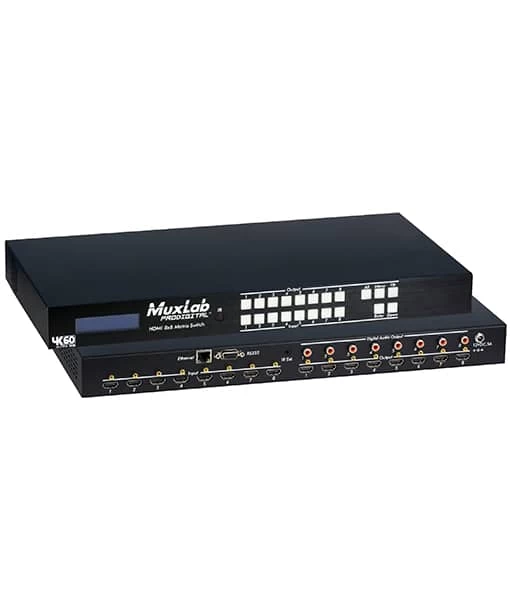

MuxLab 500443 8×8 4K60 HDMI Matrix Switcher
The MuxLab 500443 cross-switches video from up to eight HDMI sources such as a laptop, computer, DVD, Blu-ray, or media player to up to eight destinations such as monitors or projectors with the 4K60 HDMI 8 x 8 Matrix Switcher with EU Power Cord from MuxLab. Each of the eight HDMI sources can switch up to 4K60 4:4:4 video input and output up to 4K60 4:4:4 video to the eight HDMI outputs.
Other features of the matrix include support for 3D formats, HDCP 2.2, and independent EDID control. It supports embedded digital audio input such as LPCM, Dolby rueHD, Digital Plus, Atmos, DTS-HD Master, and DTS-X, and it can de-embed digital audio via eight RCA SPDIF outputs.

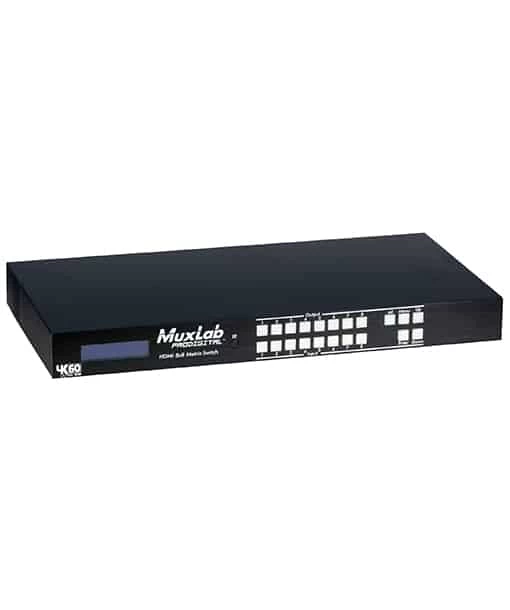

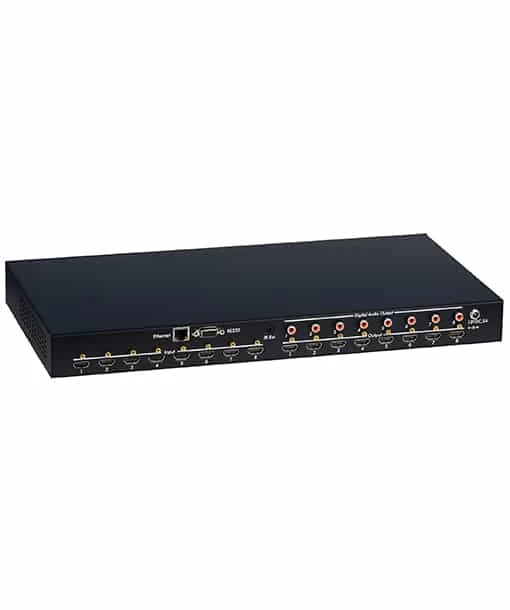

The matrix also features video scaling, so that different displays with different resolutions can be simultaneously supported. Any source can be accessed at any time, by any display, by selecting it via the included IR remote control, RS-232 using the serial input, via Ethernet using telnet, or by using the selection buttons on the front panel.
KEY FEATURES MUXLAB 500443-EU
- Supports HDMI 2.0 (4K/60, 4:4:4)
- HDCP 2.2 compliant
- Full HDR support
- Powerful EDID management
- Supports independent port scaling and displays with different resolutions
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
- Supports a Coax digital audio out (S/PDIF)
- Available Window’s GUI control software
- Controllable via front panel, IR, RS232 and Telnet
- Fits on a standard 19″ rack
INCLUDED BY DEFAULT
- MuxLab 4K60 HDMI 8 x 8 Matrix Switcher with EU Power Cord
- Bracket
- IR Remote Control
