The MuxLab 500446 4×2 HDMI 2.0 Quad-View Processor allows up to four UHD 4K60 HDMI sources to be displayed simultaneously on one or two screens. It supports up to 4K60 4:4:4 8-bit on input and output, in up to quad-view split screens. Five default presets are provided, and eight more can be customized and saved. Also, instead of displaying a source in a separate view, you can set it as a PiP in your main view.
- Up to UHD 4K60 4:4:4 8-Bit Input/Output
- 5 Default Presets / 8 Customizable
- PiP Support
- Full-Screen Mode Transitions
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

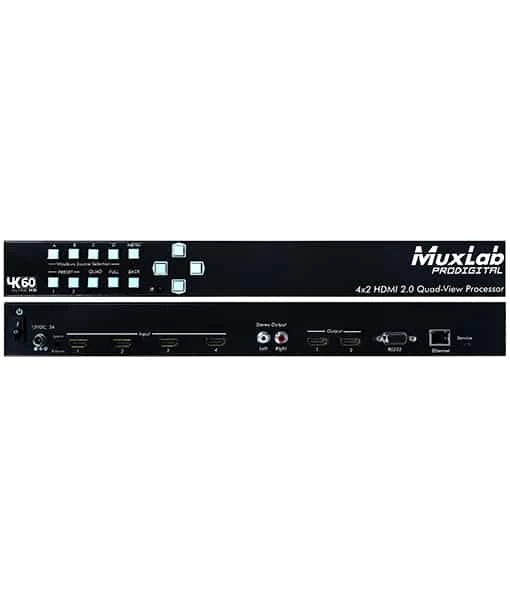

MuxLab 500446 4×2 HDMI 2.0 Quad-View Processor
The MuxLab 500446 4×2 HDMI 2.0 Quad-View Processor allows up to four (4) HDMI 4K/60 sources to be simultaneously presented on one or two displays at 4K60 as a multi-view arrangement. The user may select from one of five (5) default multi-view layout presets, or from eight (8) custom layout presets (resized and position as required with PIP support) in order to tailor their multi-view setup.
The unit supports transitions including seamless, fade-in & fade-out, wipe, and dissolve when switching in full screen mode. Pass through of all audio formats is supported, including 2CH audio extraction via two RCA jacks. The user may provide a background and logo to be displayed.

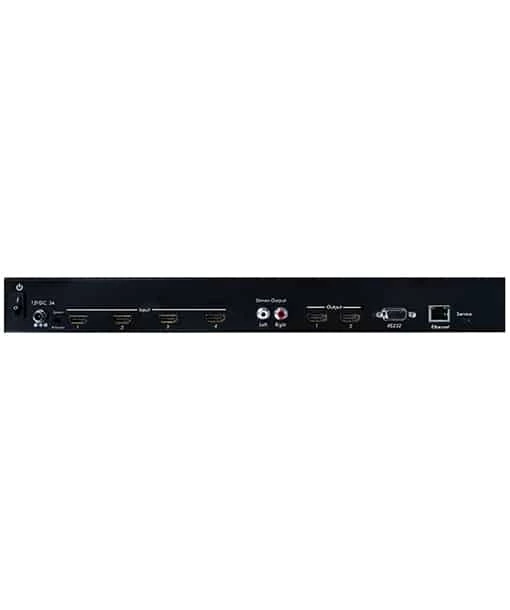

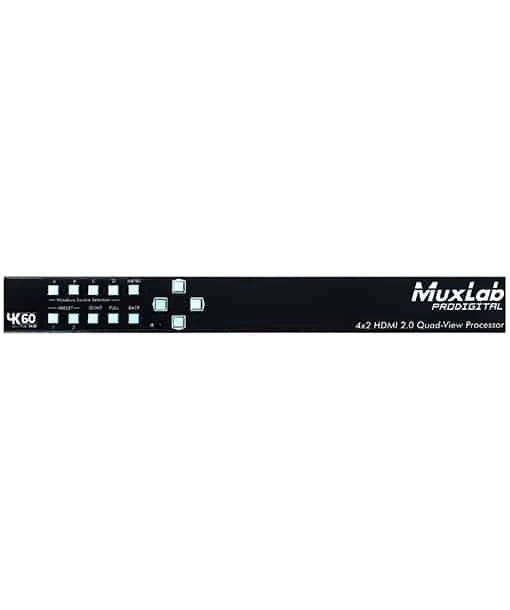

The unit may be managed locally via front panel push buttons or remotely via IR (IR Remote is included), RS232 and over an Ethernet network, and comes with rackmount brackets for a 19” rack, and a 12VDC @ 5A Power Supply.
Applications: Digital Signage, Security & Surveillance systems, education, conference rooms, presentation halls, and test lab environments
KEY FEATURES MUXLAB 500446
- Supports 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs
- Supports resolutions up to 4K60 (4:4:4)
- HDCP 2.2 compliant
- Send multi-view video from 1 to 4 inputs shown on both output ports simultaneously
- PIP is supported as well as 5 preset multi-view layouts, and up to 8 custom layouts may be created, saved and recalled
- Supports various transitions between views
- Supports audio extraction of 2CH PCM to 2CH analog audio
- Supports pass-through of LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, Dolby Atmos, DTS-HD Master Audio™ and DTS:X
- May be managed by local push buttons, and remotely via IR, RS232, and Ethernet
- Includes IR remote
INCLUDED BY DEFAULT
- MuxLab 4×2 HDMI 2.0 Quad-View Processor (EU Power Plug)
- 12VDC Power Supply with EU Plug
- Set of 19″ Rackmount Brackets
- IR Remote Control with Batteries
- IR Sensor
| Brand | MuxLab |
|---|---|
| MPN | 500446-EU |
| SKU | MU-500446-EU |
| UPC | 627699814468 |
