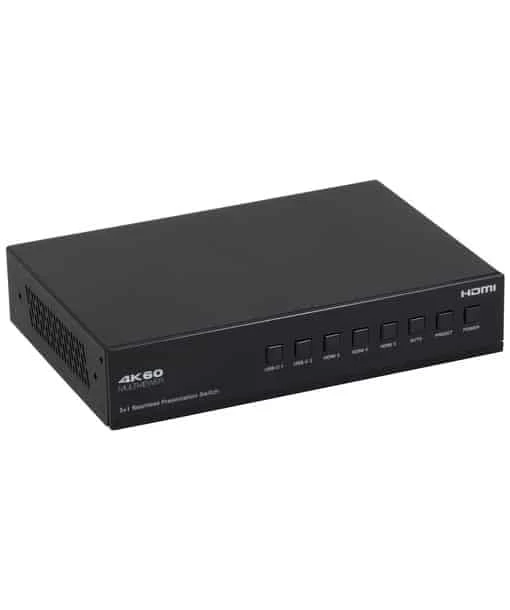

MuxLab 500533 5×1 USB-C/HDMI Presentation Switcher with Dante and HDBaseT

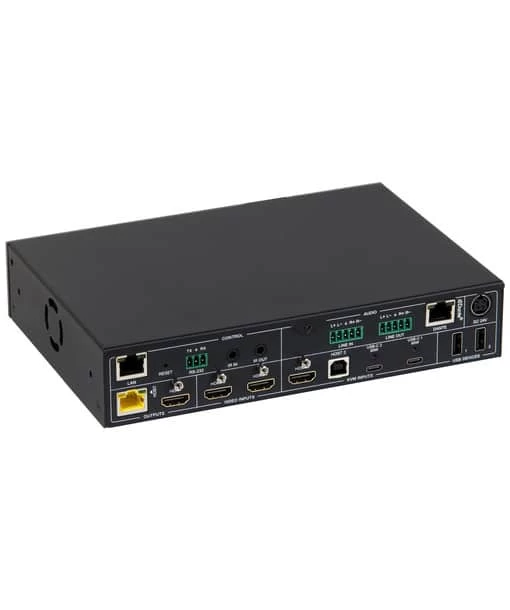

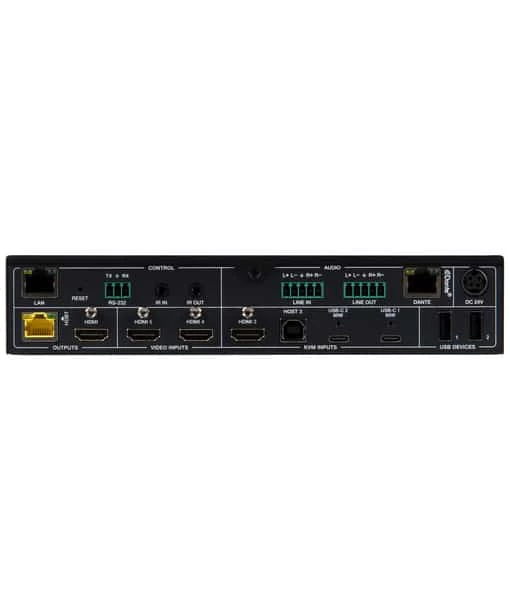

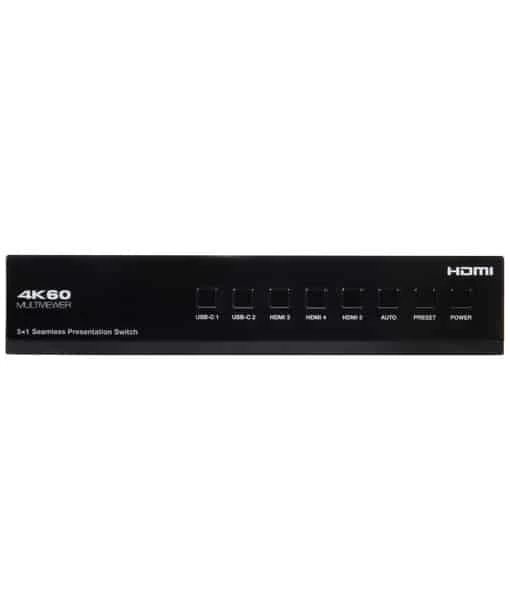

The Muxlab 5×1 USB-C/HDMI Presentation Switcher with Dante allows you to connect cable boxes, laptops, Blu-ray players, game consoles, and other HDMI or USB presentation sources to your 4K TV, HDTV, or projector. It also supports Dante audio embedding and de-embedding via IP, to expand your audio capabilities, as well as analog audio input/output. The switcher includes the main transmitter switch and an HDBaseT receiver to transmit video over longer distances.
The switcher supports auto-switching of its three HDMI and two USB-C inputs, and it allows you to toggle your sources rapidly using the switch button, RS-232, via CEC using the integrated USB-A KVM, or via IR remote control. It is HDCP compliant for compatibility with HDCP protected devices, like most cable boxes, and it features advanced EDID support for compatibility with most displays. The switcher is powered via the included power adapter, and the receiver is powered via the transmitter using PoE, so only one adapter is required.
KEY FEATURES MUXLAB 500533
- 18 Gb/s video bandwidth 5×1 switcher
- HDMI 2.0b, HDCP 2.2, and DP 1.2 complaint
- Support video resolution up to 4K60 4:4:4
- Support HDBaseT 3.0 with PoE
- Support 5×1 seamless switching
- Up to five categories of multiview display modes: Single/PIP/PBP/Triple/Quad
- Dante 2×2 audio embedding input and output
- Local USB-A 2.0 KVM switching and extending USB 2.0 over HDBaseT 3.0
- Supports analog/Dante audio embedding, analog/Dante audio de-embedding output
- Manual switching or automatic switching
- CEC/RS-232 control external devices
- Flexible control via front-panel buttons, IR remote, RS-232, TCP/IP, or Web GUI
- Advanced EDID management
- Supports standard PoE power supply from transmitter to receiver (TX_PSE, RX_PD)
INCLUDED BY DEFAULT

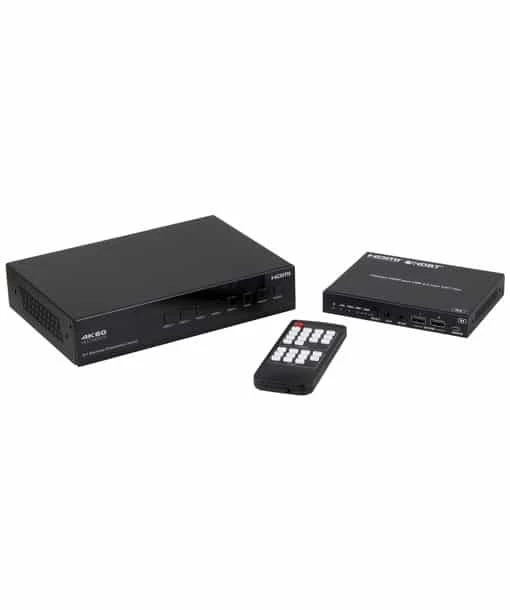

- MuxLab 5×1 USB-C/HDMI Presentation Switcher with Dante

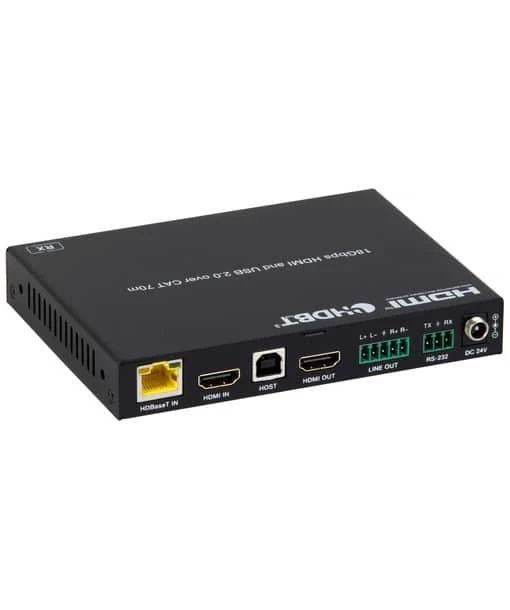

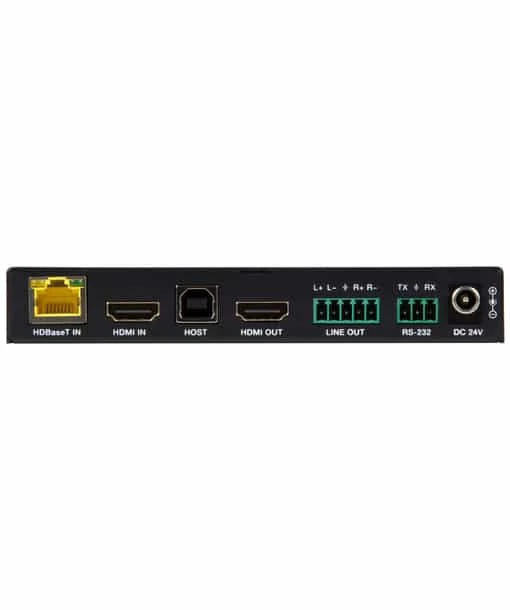

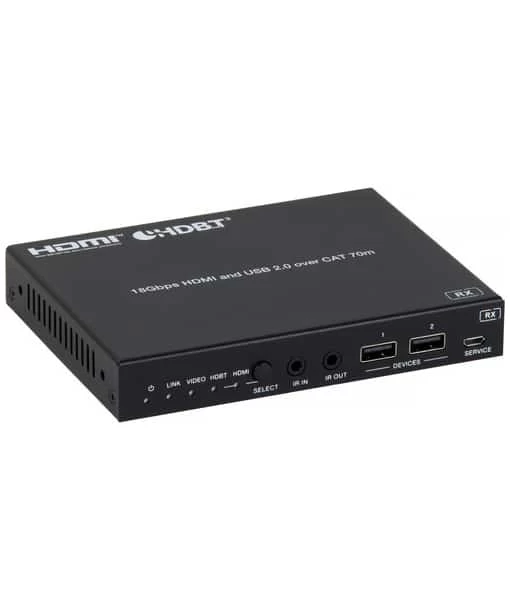

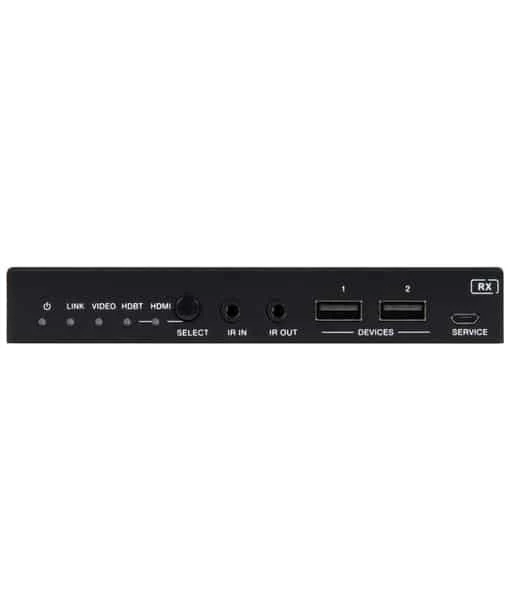

- HDBaseT Receiver
- IR Blaster Cable (4.9′)
- IR Wideband Receiver Cable (4.9′)
- IR Remote Control
- 2 x 3-Pin to 3.5mm Terminal Connector
- 3 x 5-Pin Terminal Connector
- Power Supply
- 4 x Mounting Ear
