The MuxLab 500763-TX HDMI over IP H.264/H.265 PoE Transmitter allows HDMI source equipment to be extended locally up to 100m at up to 4K30 resolution via Cat5e/6 cable and is compatible with the Muxlab 500762-RX Receiver to support point-to-point, point-to-multipoint and multipoint-to- multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.
- UHD 4K30 up to 100m over Cat 5e/6
- Compatibility with 500762-RX Receivers
- Low-Bandwidth Multiview Solution
- H.264/H.265 Encoding
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

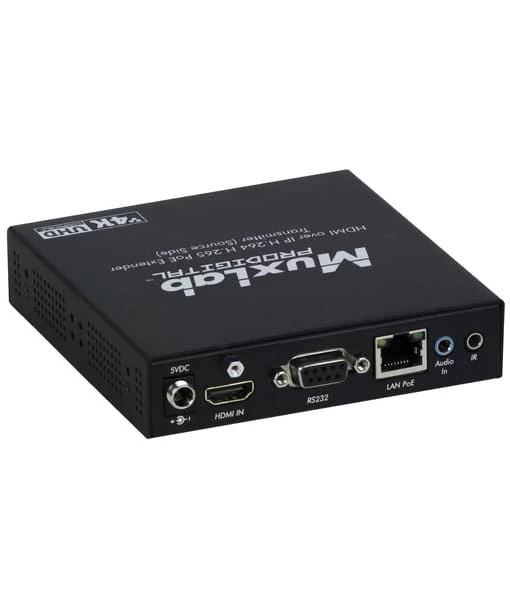

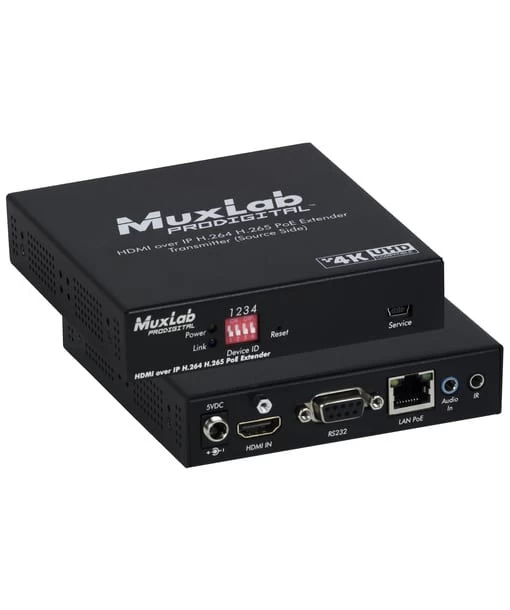

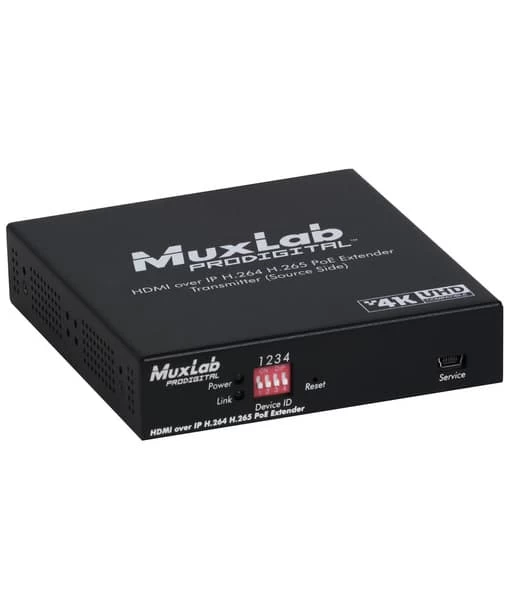

MuxLab 500763-TX 4K30 HDMI over IP H.264/H.265 PoE Transmitter
The MuxLab 500763-TX 4K30 HDMI over IP H.264/H.265 PoE Transmitter sends UHD 4K30 signals up to 100m in point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations over Cat 5e/6 cabling. Compatible with MuxLab 500762-RX receivers, it can be incorporated into video wall and multiview setups with hundreds of transmitters and receivers in a low bandwidth and cost effective workflow.
The low-bandwidth requirements in a setup with 500762-RX receivers allow efficient streaming over the Web/local network/Wi-Fi for distributed worldwide installations. Lower resolutions such as 1080p are also carried up to 100m. The transmitter can be powered via a PoE (PSE) Ethernet Switch or the MuxLab 500993 power supply, which is sold separately.
KEY FEATURES MUXLAB 500763-TX
- Works with the 500762-RX Receiver to support Matrix connectivity, Video Wall and Multiview capabilities
- Extends local audio/video transmission up to 100m over Cat5e/6
- H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
- High image quality and <200ms latency in low latency mode with H.265
- Supports 100’s of TX & RX devices depending on network bandwidth
- Supports Multicast, RTSP, RTMP, HLS, FLV and TS
- Supports embedding of 2CH audio
- RS232 and Directional IR for remote control of end-devices
- PoE powered, via PoE (PSE) Ethernet Switch
- Managed via Pro Digital Network Controller (500811), MuxControl Smartphone & Tablet App, and third party Apps
INCLUDED BY DEFAULT
- MuxLab 4K30 HDMI over IP H.264/H.265 PoE Transmitter
| Brand | MuxLab |
|---|---|
| MPN | 500763-TX |
| SKU | MU-500763-TX |
| UPC | 627699907634 |
