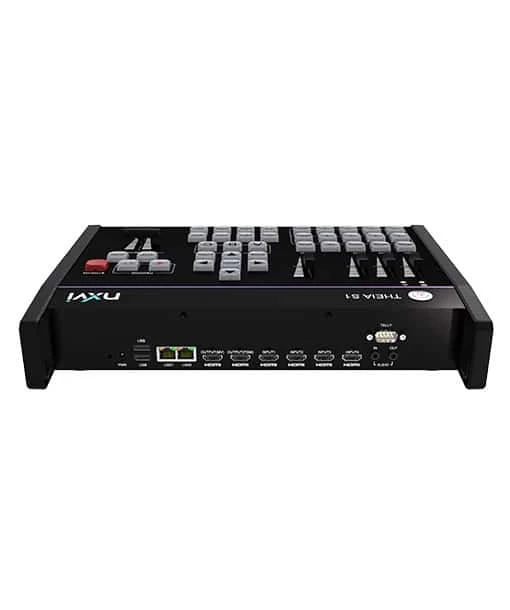

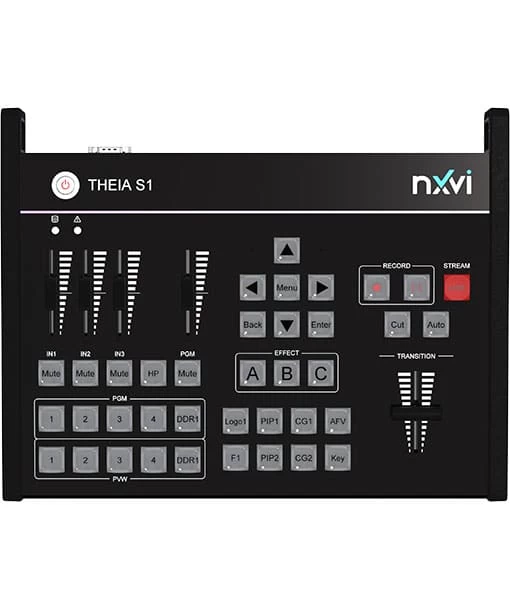

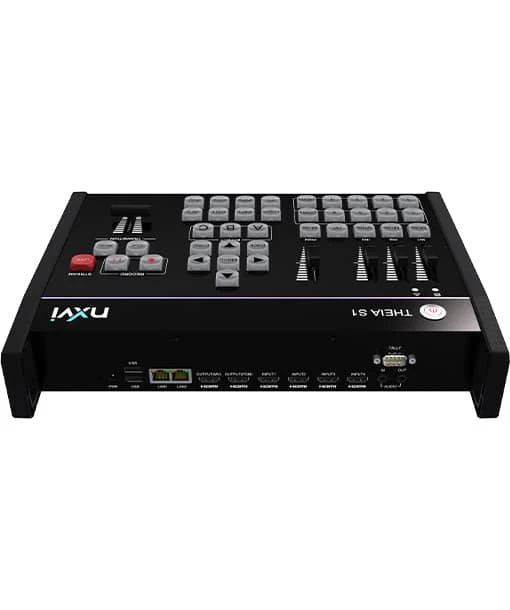

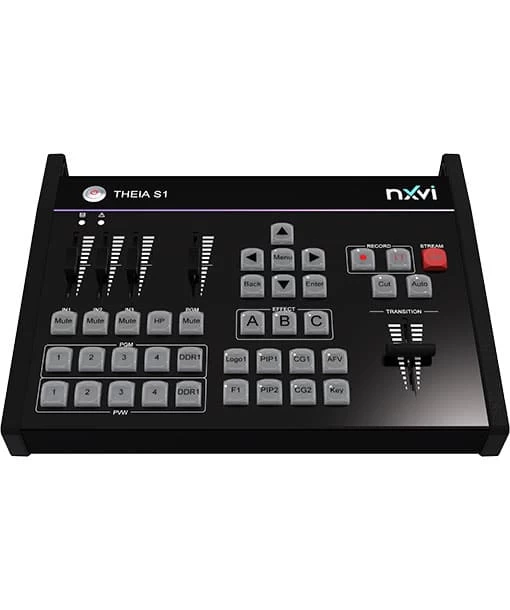

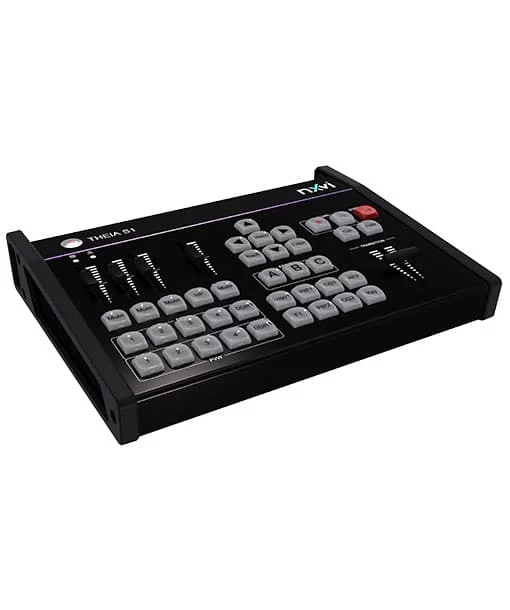

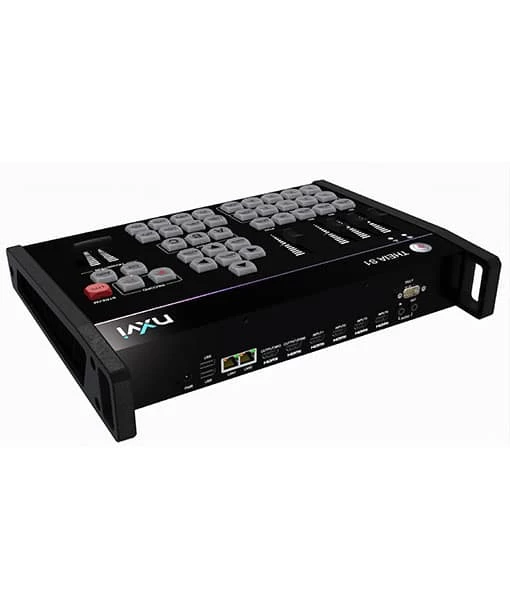

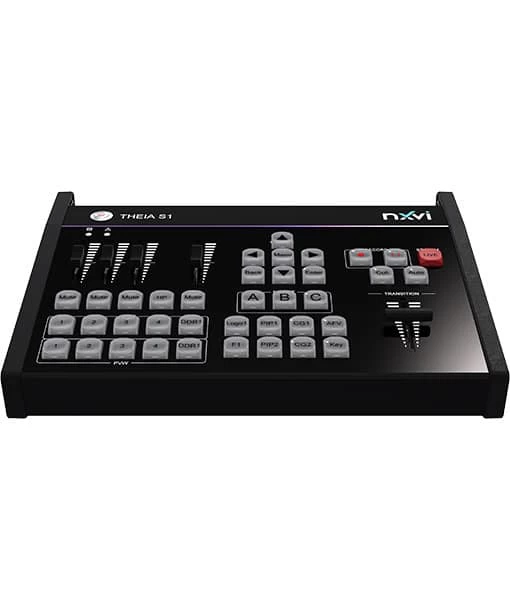

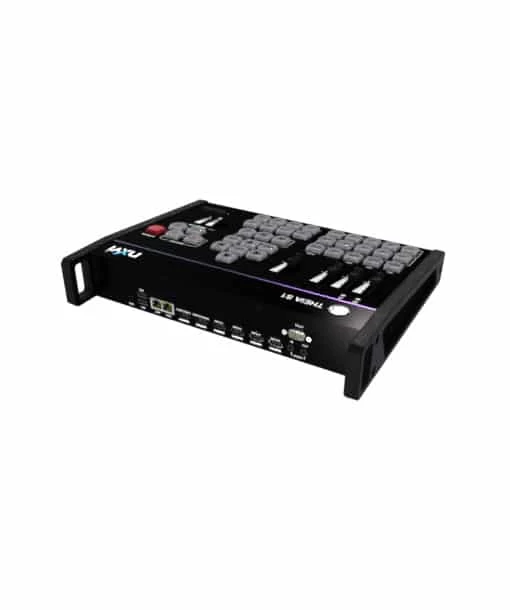

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 2

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 3

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 4

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 5

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 6

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 7

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 8

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 9

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 10

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher - Afbeelding 11

Oorspronkelijke prijs was: 363,00 €.Huidige prijs is: 96,99 €.

NxVi Theia S1 is a professional multi-channel 4K UHD video switcher with built-in 4ch 4Kp60 video input, including 2x Gigabit Lan Ports, HDMI and NDI®, special effects and chroma key.

Pro Grade 4-Channel 4KP60 Video Switcher
2x 1GB Lan Ports, 4 channel NDI ® or HDMI In
1x Program Out, 1x Multiview Out
All-in-one 4K recording, switching and live streaming

Artikelnummer: NX-NxV-864 Categorieën: Live Streaming, Mixers with Streaming, Turnkey Streaming Solutions

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

NxVi Theia S1 NxV-864 – Professional 4K UHD 4-Channel NDI® Switcher

NxVi Theia S1 is a multi-channel 4K video switcher with recording and streaming features integrated. With built-in 4ch 4Kp60 video input, including HDMI and NDI®, special effects and chroma key features. Theia S1 enables live content to be effortlessly captured, mixed, recorded and streamed to most popular live and e-commerce platforms including AWS, YouTube, and TikTok. The switching and transition effect control console provides rich features to manipulate content in with preview and program windows. Both landscape and portrait-mode content display are supported.

KEY FEATURES

Professional 4K Switching / Recording / Streaming and Transitions effects in all-in-one device
4 channel with 4Kp60 HDMI video inputs and 4Kp60 NDI® video inputs
1 channel DDR media input
1x HDMI Program Out
1x HDMI Multiview Out
Tally
Multi-source audio including HDMI embedded, DDR media, external in for mixing output
DVE including logo, subtitle, CG, PlP, DDR, green screen chroma keyer and transition effects
Cut, Auto keyers and T-bar for direct access to all transitions automatically or manually

SPECIFICATIONS NxVi Theia S1

Feature		Specification
Interface	Video Input	4-channel 4K video input (backward compatible with Full HD) Including HDMI and NDI® / NDI®/HX2 / NDI®\|HX3 interfaces. HDMI1 supports 4:2:0/4:2:2/4:4:4/RGB chroma sampling, HDMI2/3/4 supports: 4:2:2/4:4:4/RGB chroma sampling; audio sampling rates supported are 32KHz, 44KHz, 48KHz Max input resolutions NDI®: 1x 4K60, 2x 4K30 or 4x 1080P60 HDMI: 4x 4K60 NDI® and HDMI: 1x 4K60 NDI® + 3x 4K60 HDMI or 2x 4K30 NDI® + 2x 4K60 HDMI
	Video Output	1ch HDMI output for Program (max 4Kp60 with audio sample rate 48KHz)
	Video Output	1ch HDMI output for Multiview (max 1080p60)
	Audio	1ch stereo input, 1-ch stereo output (3.5mm jack)
	Ethernet	Gigabit Ethernet x2 (10/100/1000Mbps)
Video Resolution	Input	3840×2160/30p/50p/59.94p/60p
		1920×1080/25p/29.97p/30p/50p/59.94p/60p
		1920×1080/50i/59.94i/60i
		1280×720/25p/29.97p/30p/50p/59.94p/60p
	Output	3840×2160/30p/50p/59.94p/60p
		1920×1080/25p/30p/50p/60p
		1280×720/25p/30p/50p/60p
	Output (Multiview)	1920×1080 60p
Graphic Keyer	Chroma-Keyer	Chroma/Luma/Filter Keyer
	CG-Keyer x2, Logo-Keyer	Logo, subtitle, graphic and news ticker support
	PIP-Keyer x2	Up to 5-source selection
Transition Effect		Built-in over 30 effects
Media Player		DDR player x1
Media Player		External USB storage for DDR playback
Media Storage		USB x2 for recording and playback (NTFS formatted)
Program Recording		1-ch HEVC/AVC 4K/HD
Streaming	Codec	HEVC/AVC + AAC
Streaming	Protocol	RTMP, UDP, SRT, RTP, HLS Support push stream to 2 distribution platforms simultaneously
Power	Input	AC Adapter 100V-240V, 50/60Hz with DC 12V/5A output
Power	Consumption	< 40W
Dimension		342mm(W) x 266.8mm(D) x 58.2mm(H)
Operating Temperature		0℃-40℃
Storage Temperature		-20℃~60℃
Certification		CE/FCC (Class B)/TUV/CB/RoHS/KC
