NxVi Theia T1 Mini is a professional 4ch 4K Encoder/Decoder supporting 4K/1080 HEVC real-time encoding and decoding via quad-link 12G-SDI or HDMl2.1.
- Professional Encoding, Decoding, and Streaming
- Broadcasting 4K HEVC Codec
- Maximum 4ch 4Kp60 HEVC real-time encode or decode
- High performance, Encoding / Decoding
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

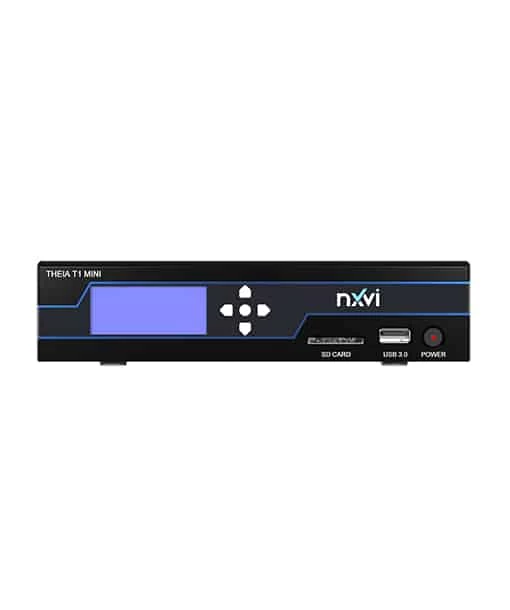

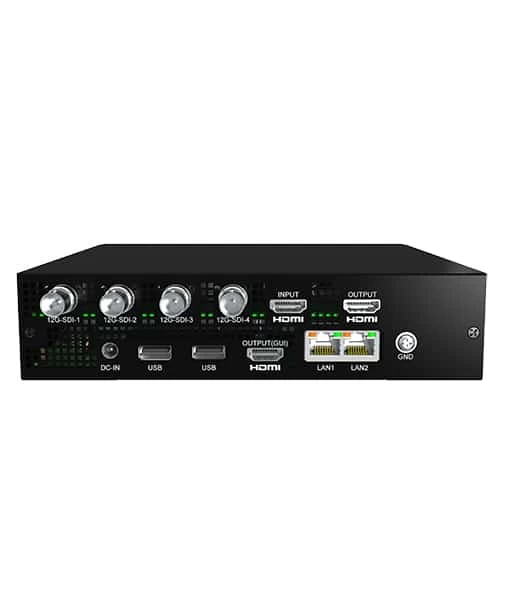

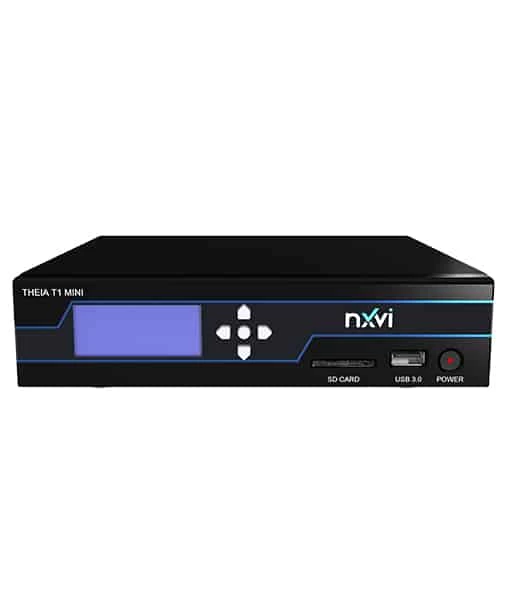

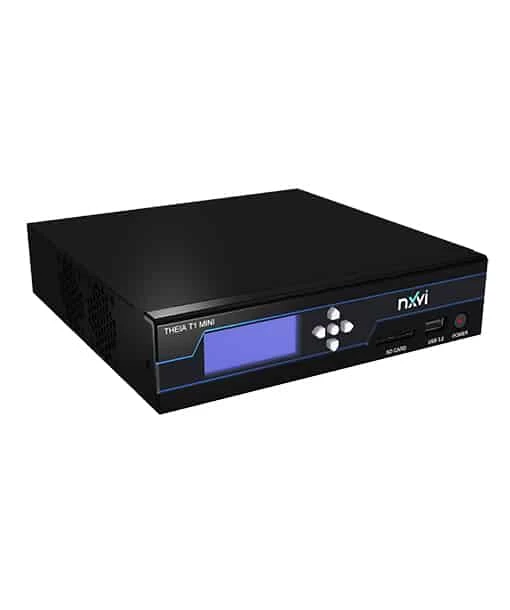

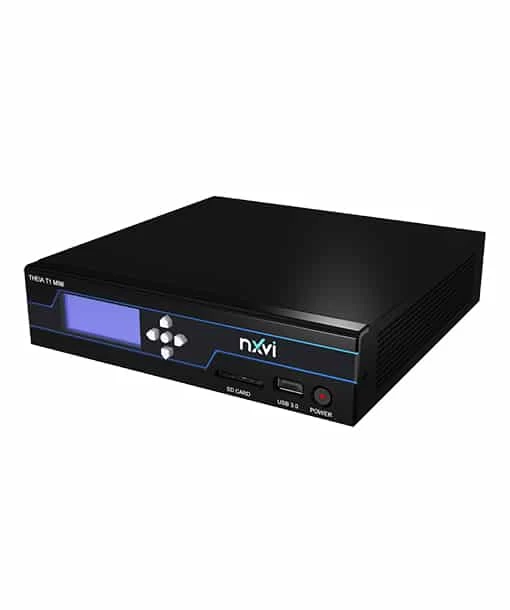

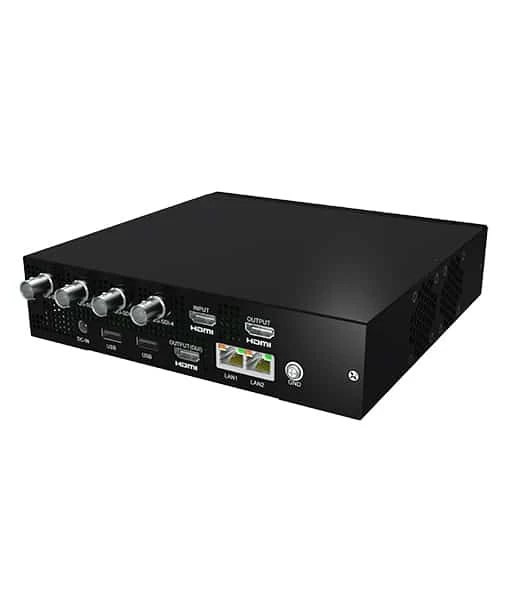

NxVi Theia T1 Mini NxV-880E-07 – 4ch 4K Encoder / Decoder
The NxVi Theia T1 Mini encoder/decoder supports real-time 4K/1080 HEVC encoding and decoding via quad-link 12G-SDI or HDMI 2.1. It offers flexibility with 4x 12G-SDI or HDMI 2.1 inputs and supports HDR10/HLG on HDMI 2.1 output. The system provides 4:2:0/4:2:2 color sampling and 10-bit HDR HEVC encoding at up to 60 fps. Easy to install, it features a user-friendly WebGUI for simplified operation. Theia T1 Mini is the ultimate choice for high-quality, hassle-free video processing.
KEY FEATURES
- Maximum 4ch 4Kp60 HEVC real-time encode or decode
- 4ch independent 12G-SDI (shared with Quad-Link 3G-SDl/1.5G-SDI) or
1 ch HDMI input for 4K encoding and streaming - 4ch independent 12G-SDI output for multiple 4K video decoding
- 4K SQD/2SI source mapping
- HDMI supports up to 4Kp60 as specified in HDMI 2.1 for preview
- HDR10 and HLG support
- USB3.0 and SD card slot for file storage
- High bitrate HEVC encoder and decoder
- Easy installation & setup via WebGUI
SPECIFICATIONS NxVi Theia T1 Mini
|
Interface |
Input |
SDI x4 (BNC type)
– Support 12G-SDl/6G-SDl/3G-SDl/l.5G-SDI – Support Quad-Link 3G-SDl/l.5G-SDI – 4K SQD/2SI source mapping – 10b, YCbCr 4:2:2 HDMI xl (Type A) up to 4Kp60 as specified in HDMl2.l (At the same time, choose either SDI or HDMI) Audio: SDI/HDMI embedded audio |
|
|
Output |
SDI x4 (BNC type)
– Support 12G-SDl/6G-SDl/3G-SDl/l.5G-SDI – Support Quad-Link 3G-SDl/l.5G-SDI – 4K SQD/2SI source mapping – 10b, YCbCr 4:2:2 HDMI xl (Type A) support up to 4Kp60 as specified in HDMl2.l for preview HDMI xl (Type A) support 1080p as specified in HDMl1.4b for WebGUI Gigabit Ethernet x2 (10/100/l000Mbps) USB3.0 x3 SD Card |
||
|
Encode/Decode |
Video |
Resolution: 4ch: 3840 x 2160 pixel or lower resolution Pixel format: 8b/10b 4:2:2, 4:2:0
Framerate: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98Hz Format: HEVC Bitrate: 3Mbps – 120Mbps Rate control: CBR/VBR Support HDRlO/HLG |
|
|
Audio |
Format: AAC
Channel: SDI: 16ch/HDMI: 7.1 channel |
||
|
Preview |
Video |
Resolution: 3840 x 2160 pixel or lower resolution Pixel format: 8b/10b, RGB and YCbCr 4:4:4/4:2:2/4:2:0 Framerate: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98Hz
Support HDRl0/HLG |
|
| Audio | Channel: HDMI: 7.1 channel | ||
|
Streaming |
Protocol |
MPEG-TS over UDP/RTP (Unicast & Multicast) FLV over RTMP
HLS with MPEG-TS/FMP4 SRT over UDP/TCP (caller, listener) |
|
|
Recording |
Storage |
SD Card (Supports simultaneous dual storage recording, including SD and external USB storage.)
External USB disk vis USB port 256GB SSD, M.2 2280 |
|
| File Format | MP4, MPEG2-TS | ||
|
Software Features |
Management |
Web User Interface
SNMP v2c with remote SNMP supervisor (alarms & traps) |
|
| System Monitor | Video input status, Streaming status and Ethernet usage | ||
| Streaming | Deliver two streams to different destinations for each channel | ||
| Recording | Loop recording | ||
| Preview | SDI to HDMI Preview | ||
|
General |
User Interface | Buttons and LCD display on front panel | |
| Dimension | 190mm (W) x 187mm (D) x 44.4mm (H) | ||
| Power Consumption | 100W | ||
| Power Input | DC12V ± 10% | ||
| Weight | 1.7Kg | ||
| Rack mount (*optional) | Rack mount 2 Tl Mini | ||
| Operating Temperature | 0° C ~ 40° C | ||
| Storage Temperature | -20° C ~ 80° C | ||
| Certification | CE/FCC (Class B)/TUV/CB/CCC/RoHS/KC | ||
INCLUDED BY DEFAULT
- NxVi Theia T1 Mini 4ch 4K Encoder / Decoder
- Power Supply
| Brand | NxVi |
|---|---|
| MPN | NxV-880E-07 |
| SKU | Nx-NxV-880E-07 |
| Options | 12G-SDI, 3G-SDI, 4K, 6G-SDI, HDMI2.1 |
| Type | Video Decoders, Video Encoders |
