NxVi Theia T1 NxV-880E – Broadcasting 8K HEVC Encoder

The NxVi Theia T1 encoder supports 1ch 8K, or 4ch 4K/1080 video feed via professional camcorder with Quad Link 12G-SDI input or consumer camera with HDMl 2.1 interface. This flexibility in connecting to different 8K content acquisition devices helps to proliferate and reduce entry-barrier of 8K content creation. With 4:2:0/4:2:2 sampling and 10-bit HDR HEVC encoding up 60 high frame rates in real-time, the Theia T1 encoder preserves picture details and fidelity with variable bitrates to accommodate network bandwidth requirements for content distribution in low-latency and low power consumption (100W in typical).

KEY FEATURES

SPECIFICATIONS NxVi Theia T1 8K Encoder

Feature                                                                      Specification

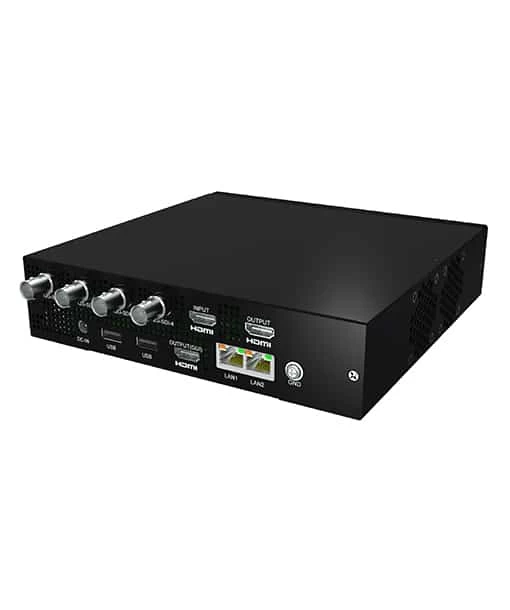

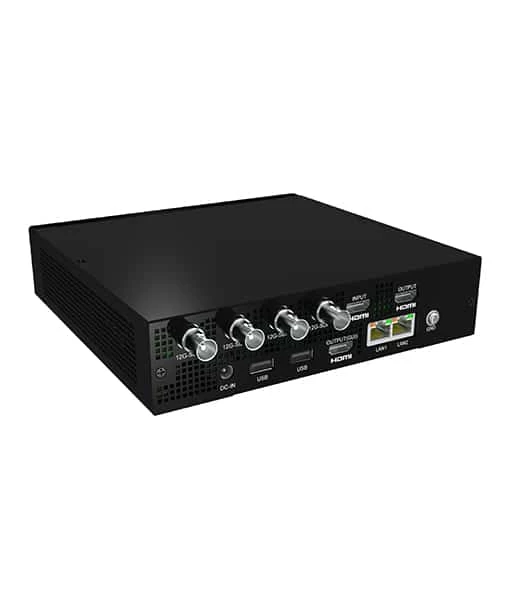

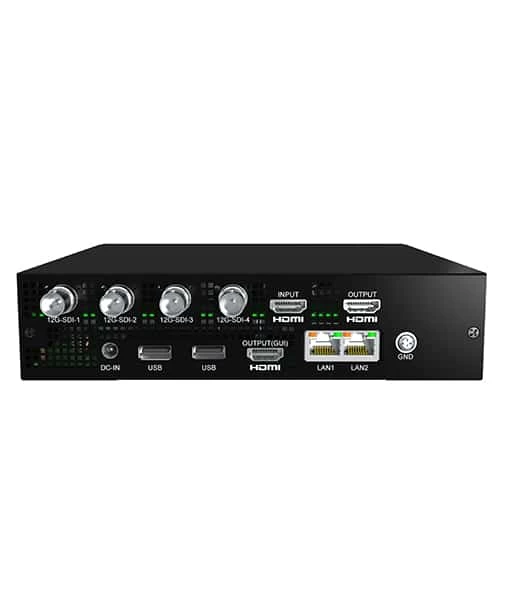

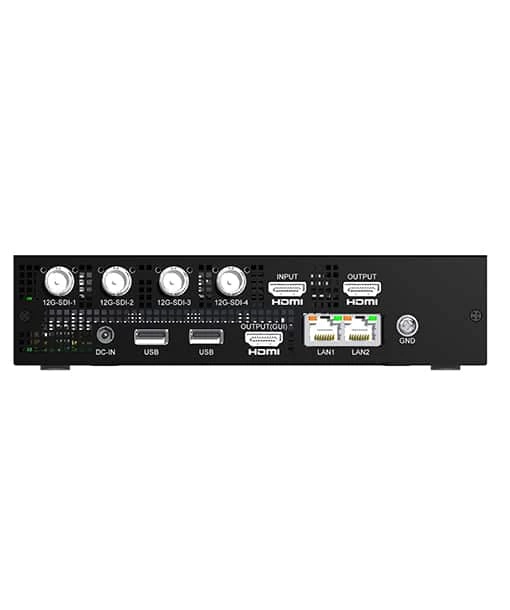

Interface	Input	12G-SDI x4 (BNC type)/HDMl2.1 12G-SDI channel: – lch (up to 8Kp60 ST2082-12, 8b/10b, 4:2:2, YCbCr) – 4ch (up to 4Kp60, 8b/10b, 4:2:2, YCbCr) HDMl2.1 channel: lch (up to 8Kp60, 10b, 4:2:2) Audio: SDI/HDMI embedded audio
	Output	HDMl2.1 (Preview: 1080p as default, 8K/4K as optional) HDMl1.4b Gigabit Ethernet x2 (10/100/l000Mbps) USB3.0 x3/SD card
Encoding	Video	Resolution: lch: 7680 x 4320 pixel 4ch: 3840 x 2160 pixel or lower resolution Pixel format: 8b/10b 4:2:2, 4:2:0 Framerate: 60, 59.94, 50, 30, 29.97, 25, 24Hz Encoding format: HEVC Bitrate: 60Mbps – 240Mbps Rate control: CBR/VBR Support embedded HDR parameters
	Audio	Encoding format: AAC LC, pass-through Channel: 22.2ch/8K, 16ch/4K or lower resolution
Streaming	Protocol	MPEG-TS over UDP/RTP (Unicast & Multicast) FLV over RTM P HLS with MPEG-TS/FMP4 SRT over UDP/TCP (caller, listener)
Recording	Storage	SD Card/USB External Disk 256GB SSD, M.2 2280
	File Format	MP4, MPEG2-TS, Video-ES

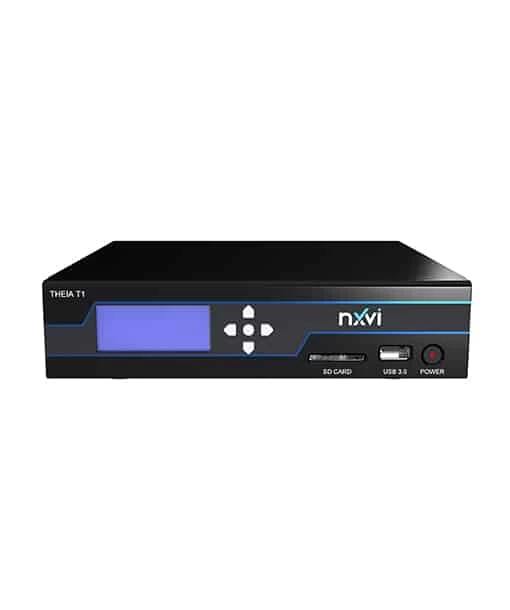

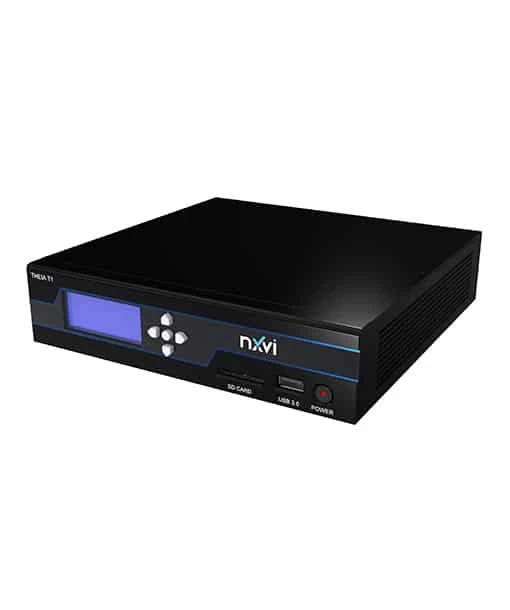

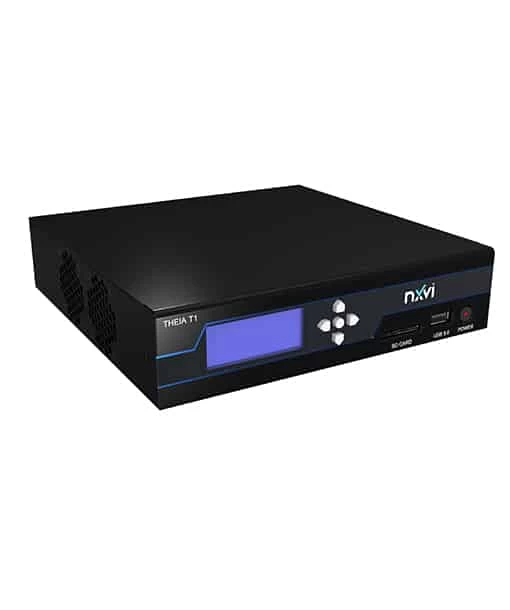

Chassis	User Interface	Buttons and LCD display on the front panel
	Dimension	190mm (W) x 187mm (D) x 44.4mm (H)
	Power Consumption	100W
	Power Input	DC12V ± 10%
	Weight	1.7Kg
Operating Temperature		0° C ~ 40° C
Storage Temperature		-20° C ~ 80° C
Certification		CE/FCC (Class B)/TUV/CB/CCC/RoHS/KC

INCLUDED BY DEFAULT

• NxVi Theia T1 8K Encoder
• Power Supply
