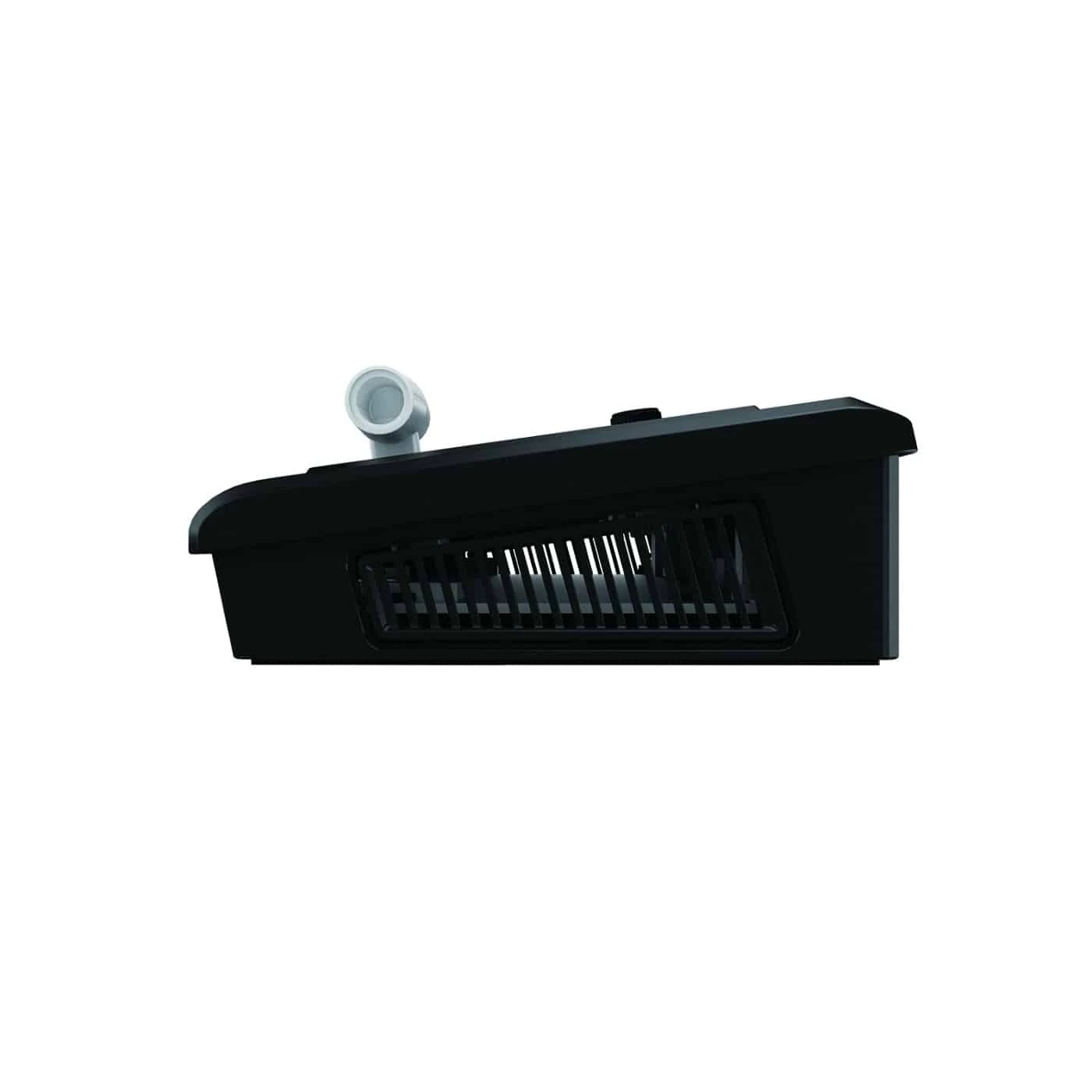

OSEE GoStream Deck HDMI/USB Live Streaming Video Switcher

Enhance Livestreams with Portable Gear Using the OSEE GoStream Deck Video Switcher

Easily set up engaging livestreams with the OSEE GoStream Deck Video Switcher, designed for seamless compatibility with portable monitors and cameras. Featuring four HDMI and one USB-C input, the switcher connects effortlessly to two HDMI and one USB-C output, all supporting up to 1080p60 resolution. Record and play back content directly using the integrated SD card slot, eliminating the need for a separate PC. Stream to up to three social media platforms simultaneously via RTMP and Ethernet, ensuring a smooth and professional live broadcast experience.

Streamline Your Livestream Production

The GoStream Deck’s comprehensive control panel, built-in user interface, and SD card recording and playback function reduces the number of required devices needed to facilitate your livestream. This keeps your production low cost and efficient.

Supports Three Simultaneous Streams

Livestream to three different platforms simultaneously using the integrated Ethernet port on the GoStream. Connect a USB webcam to the USB-C input and output that feed via OBS, VMix, or Zoom using the USB-C output port.

Versatile Interface

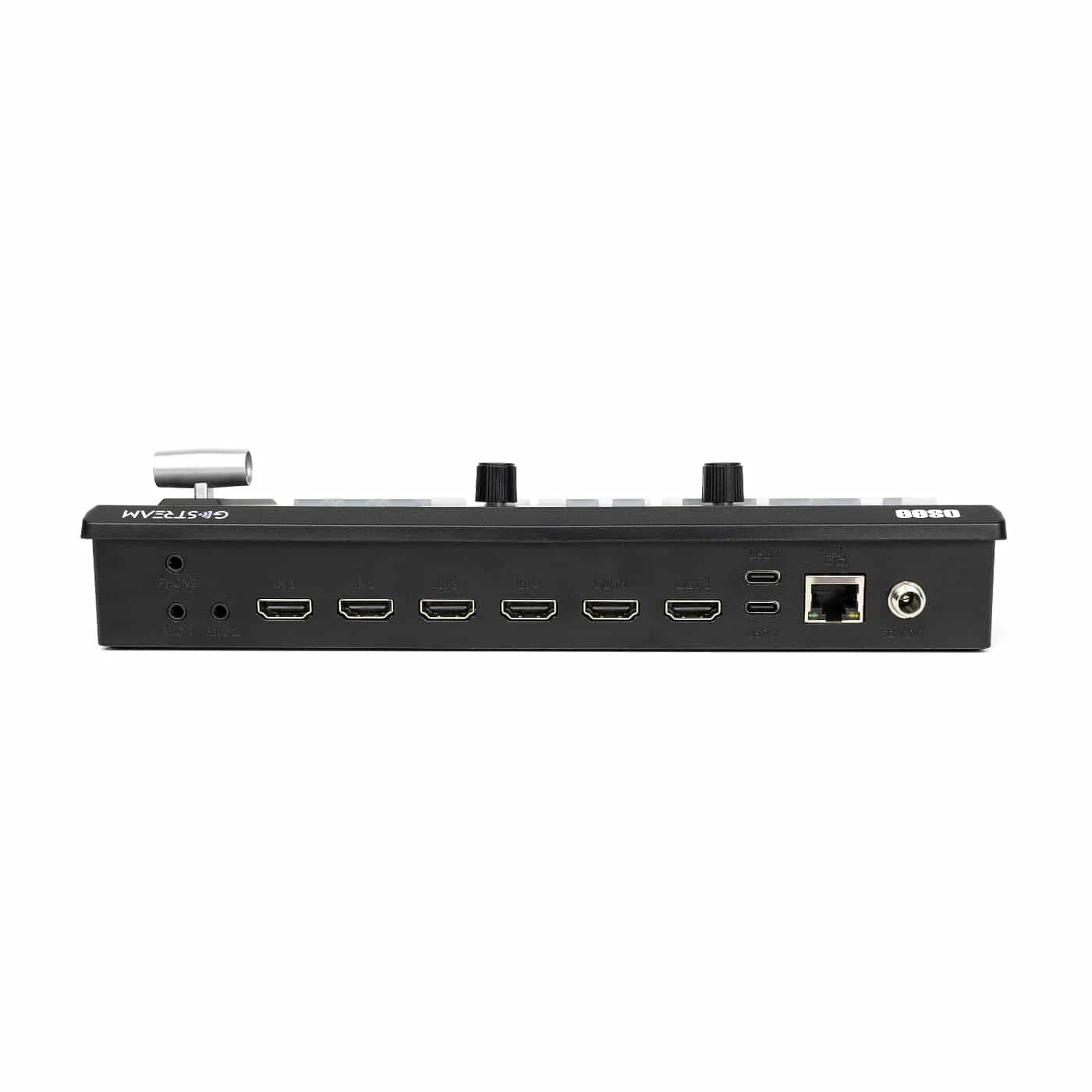

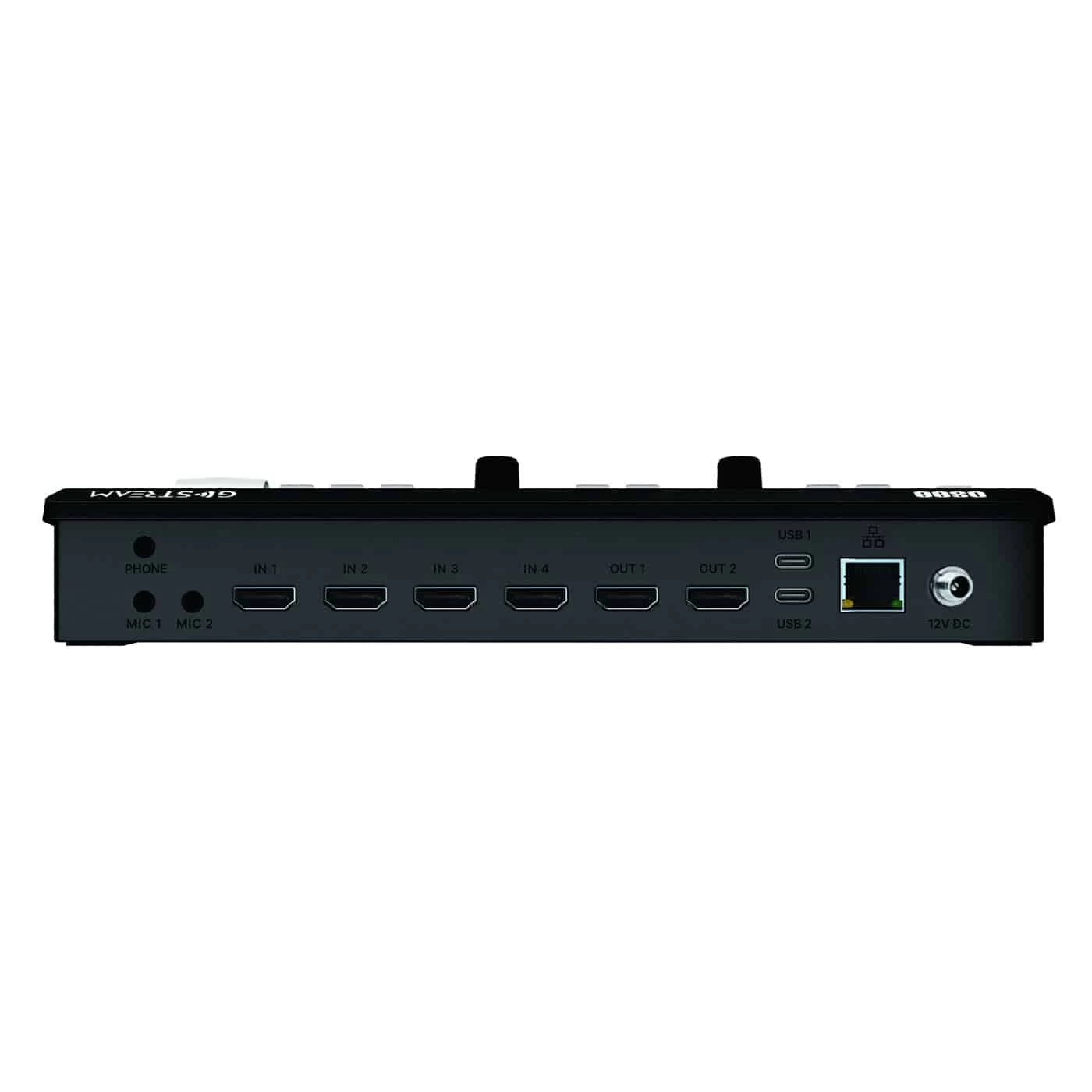

Additional ports on the switcher allow you to expand your setup to best suit your production. Connect up to five video input sources like cameras and UVC sources and output them to a monitor or projector for simultaneous presentation.

Built-In Audio Mixer

An internal audio mixer supports seven channels of embedded and input audio sources, with four audio sources coming from the HDMI inputs, one from the AUX input, and two from dedicated 3.5mm TRS microphone ports. Mix the inputs into the program output using the On/Off or AFV controls on the switcher and adjust parameters like gain, balance, and fade. Monitor audio from a selected source using the headphone input.

Unified Video Integration

Using the Super Source feature, merge two video windows and one background video into a unified single source. The source then becomes a standard video input integrated into the composition engine. Select source material from video inputs or internally generated still image signals. Modify the layout, size, position, and border of each window.

6-Layer Composition Engine, Macro Presets

The GoStream supports six layers of special effects including Super Source, upstream keyers, downstream keyers, Chroma keyers, transitions, and a still image generator. Craft visually appealing, multi-layered effects tailored to your production. Use the eight Macro Memories to record specific composition functions and set them as custom presets for efficient recall.

KEY FEATURES

SPECIFICATIONS

Available M/E Layers	6 M/E
Effect Types	Transition, Chroma Key, Luma Key
Downstream Keys	1x Chroma, Luma
Generators	5x Color 2x Pattern
Audio Mixing	7-Channel Mixing
Switching Type	1x Chroma, Luma
Generators	5x Color 2x Pattern
Audio Mixing	7-Channel Mixing
Switching Type	Pushbutton, Software
Color Processing	12-Bit 4:2:2 YCbCr 8-Bit 4:4:4 RGB
Number of Video Input Sources	5
Video Inputs	4x HDMI Female 1x USB-C (UVC) Female
Input Video Format	HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	2x 1/8″ / 3.5 mm TRS Mic
Input Audio Format	Analog
Embedded Audio Input	HDMI
Video Output Channels	3
Video Outputs	2x HDMI 1x USB-C
Output Video Format	HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) 1080p at 24/25/30/50/60 fps
Audio Outputs	1x 1/8″ / 3.5 mm TRS Stereo
Embedded Audio Output	HDMI
Multiview Output	4-Way Multiview via HDMI
Other I/O	1x RJ45 LAN, NDI Input/Output
IP Video	1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding
Transport Protocols	RTMP
Simultaneous Streams	3 Streams
Compatible Services	Facebook Live, Instagram, TikToK, Twitch, YouTube Live
Recording Media	1x SD
Recording Modes	1920 x 1080p at 24/25/30/50/60 fps (70 Mb/s H.264/AVC)
Wi-Fi	No
Bluetooth	No
Power Consumption	Device: 12 VDC (14 W)
Operating Conditions	0 to 70°C
Dimensions	252.4 x 107.3 x 49.3 mm
Weight	500 g

INCLUDED BY DEFAULT

• OSEE GoStream Deck HDMI USB Live Streaming Video Switcher
• Power Adapter
• Free GoStream Software for Mac or Windows (download)
