OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder

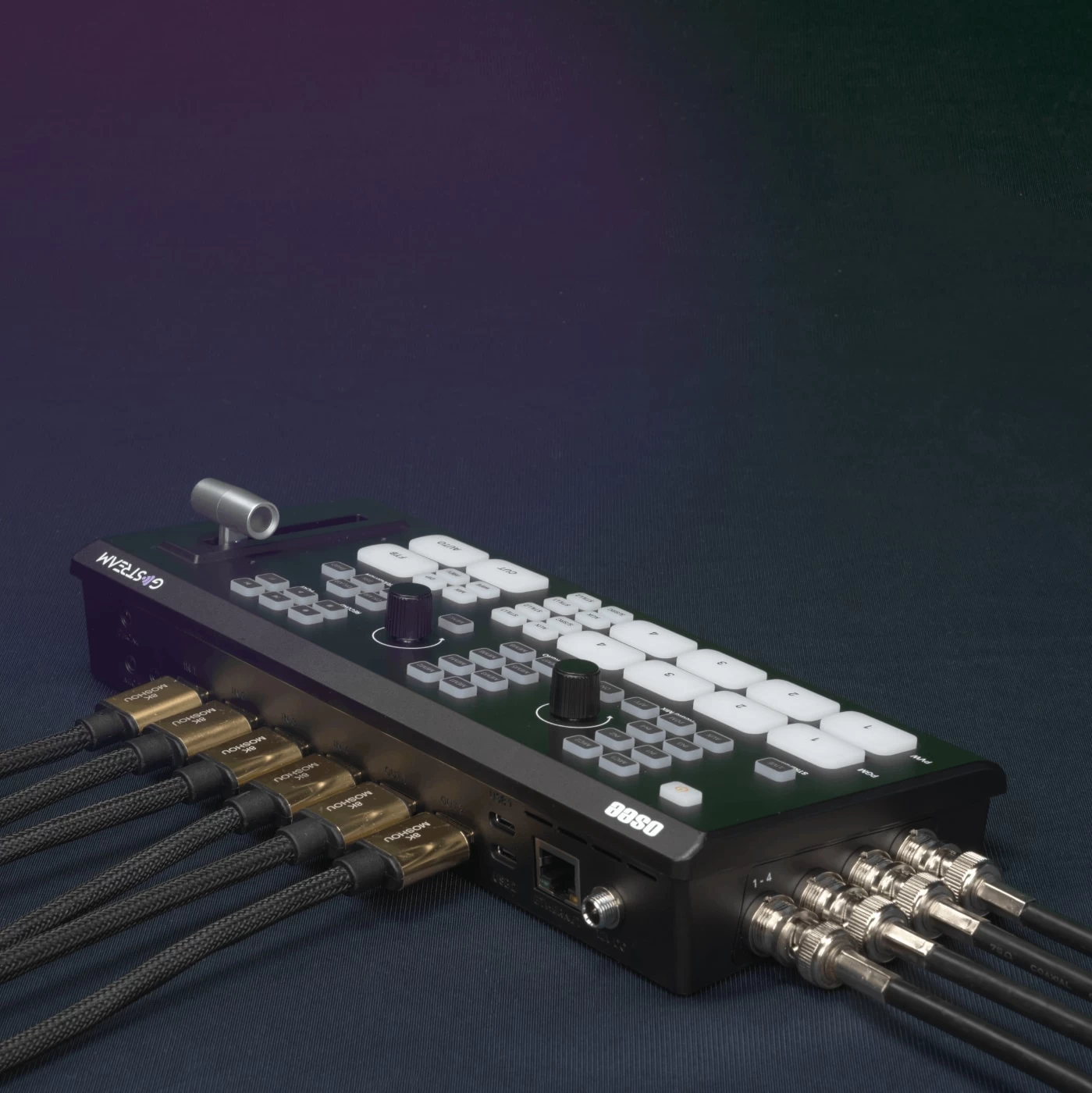

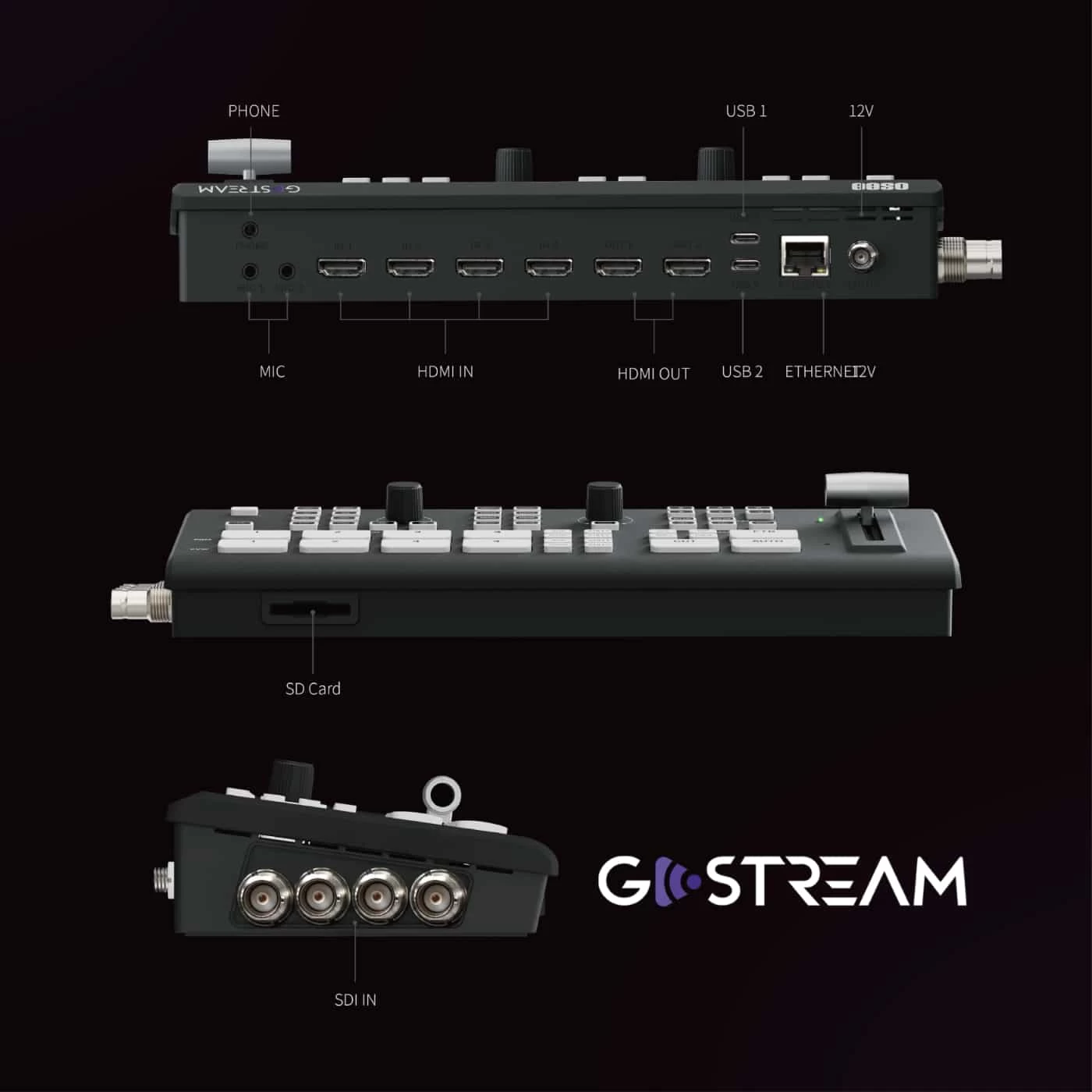

Setup your livestreams using a variety of HDMI, USB, or SDI equipment with the GoStream Duet SDI / HDMI / NDI|HX Live Stream Video Mixer / Switcher / Recorder from OSEE. The portable Duet provides SDI, HDMI, USB-C, and NDI|HX connectivity, allowing wide compatibility with various cameras, media players, and video devices. The switcher features four HDMI inputs, four SDI inputs, NDI input via Ethernet, and one USB-C input that interface with two HDMI outputs and one USB-C output.

Both the input and output ports support up to 1080p60 video. An SD card slot allows for direct recording and playback to a connected monitor without requiring a separate PC, and the USB-C output allows you to record to external SSD media. Live streaming is available via RTMP and IP simultaneously to up to three platforms such as YouTube or Twitch, and NDI|HX streaming is also available with the latest firmware.

Upgrade your firmware version to the latest one V2.1.3 here and then you get a free NDI license included.

Streamline Your Livestream Production

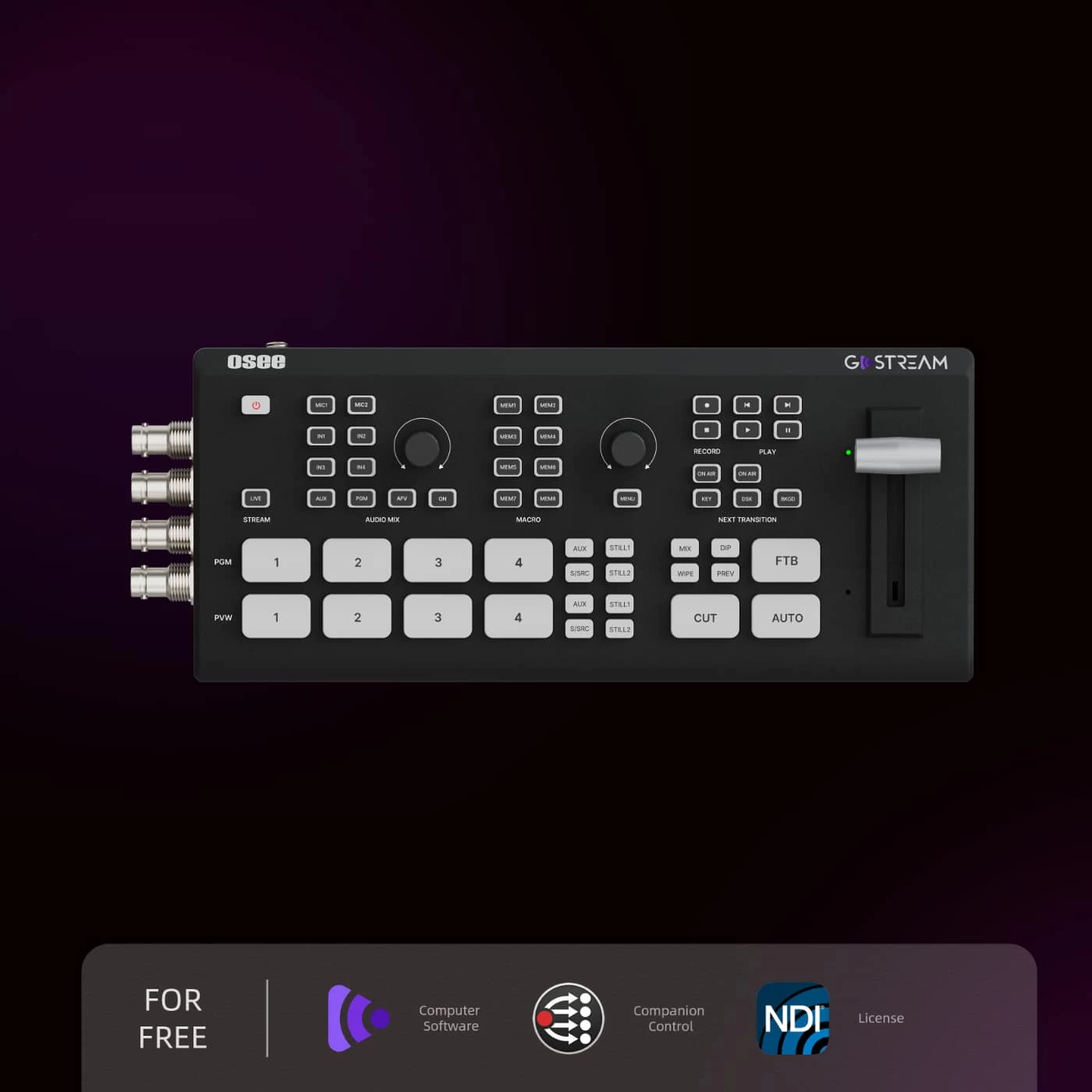

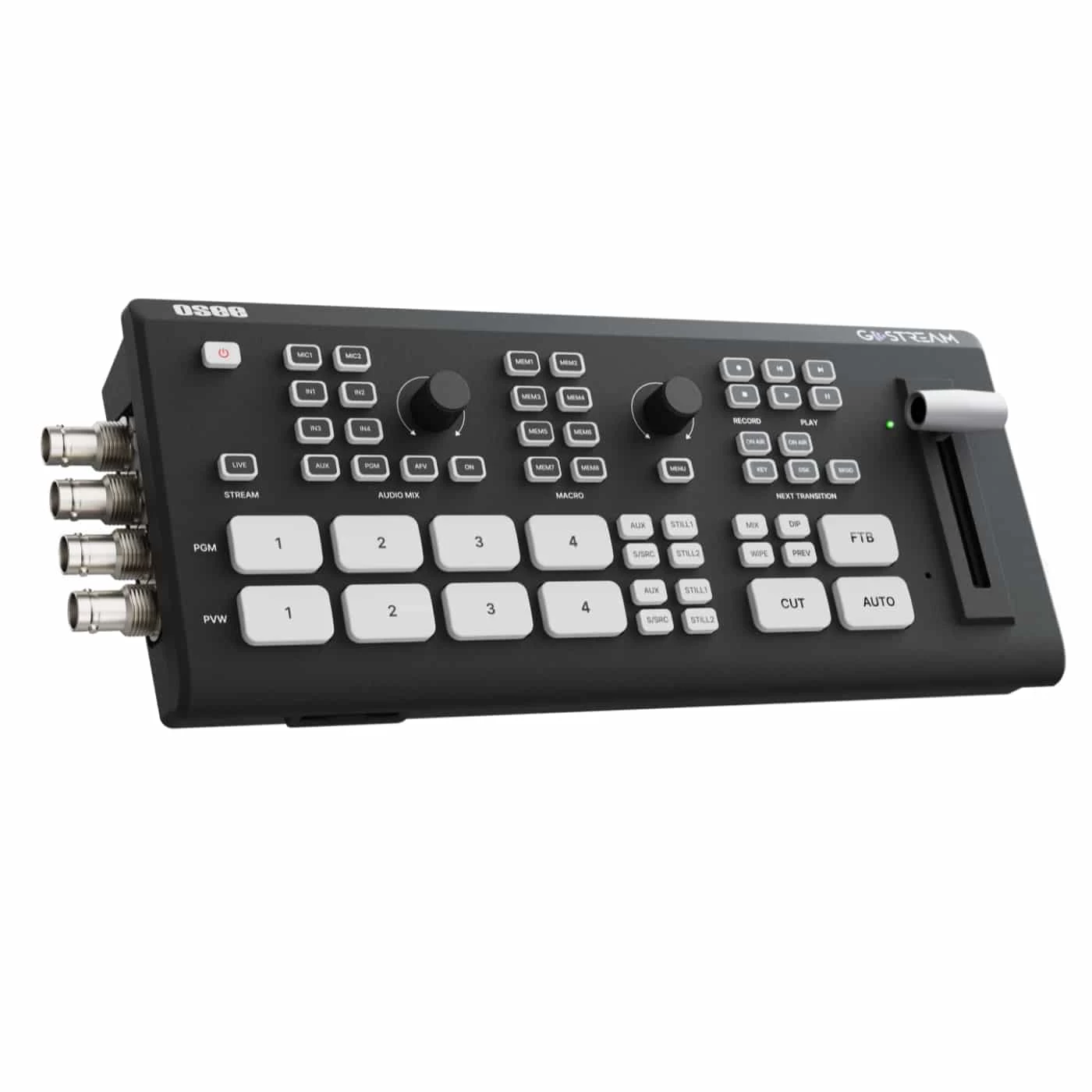

The GoStream Duet features a comprehensive, tactile control panel with numerous buttons, PVW and PGM select buttons, knobs, and a fader. It also features recording to SD card and external USB SSD, which also support the playback function, reducing the number of required devices needed to facilitate your livestream.

Supports Three Simultaneous Streams

Livestream to three different platforms such as YouTube or Twitch simultaneously using the integrated Ethernet port on the GoStream. Connect a USB webcam to the USB-input and output that feed via OBS, VMix, or Zoom using the USB-C output port.

Output up to Five Channels

Select up to five video input sources from the SD card, SSD, HDMI, SDI, USB, or NDI|HX inputs, such as cameras, streams, switchers, and UVC sources, and output them to a monitor or projector for simultaneous presentation, or connect an optional Stream Deck or built-in WebGUI.

Built-In Audio Mixer

An internal audio mixer supports seven channels of embedded and input audio sources, with audio sources coming from the SDI and HDMI inputs, one from the AUX input, and two from dedicated 3.5mm TRS microphone ports. Mix the inputs into the program output using the On/Off or AFV controls on the switcher and adjust parameters like gain, balance, and fade. Monitor audio from a selected source using the headphone input.

Utilize up to Nine Effects

The GoStream Duet supports nine special effects including Super Source, upstream keyers, downstream keyers, Chroma keyers, transitions, and a still image generator. Craft visually appealing, multi-layered effects tailored to your production. Use the eight Macro Memories to record specific composition functions and set them as custom presets for efficient recall.

KEY FEATURES

SPECIFICATIONS

Available M/E Layers	6 M/E
Effect Types	Transition, Chroma Key, Luma Key
Macro	Up to 8 Macros can be accessed via panel, more via software
Other Effects	Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format.
Graphics Memory	32 Images
Downstream Keys	1x Chroma, Luma
Generators	5x Color 2x Pattern
Audio Mixing	8-Channel Mixing
Switching Type	Pushbutton, Software
Color Processing	12-Bit 4:2:2 YCbCr 8-Bit 4:4:4 RGB
Number of Video Input Sources	12
Video Inputs	4x HDMI Female 4x BNC (3G-SDI) Female 1x USB-C (UVC) Female 1x RJ45 (HX/NDI) Female
Input Video Format	HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	2x 1/8″ / 3.5 mm TRS Mic
Input Audio Format	Analog
Embedded Audio Input	HDMI SDI RJ45
Video Output Channels	5
Video Outputs	2x HDMI 1x USB-C
Output Video Format	HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) 1080p at 24/25/30/50/60 fps
Audio Outputs	1x 1/8″ / 3.5 mm TRS Stereo
Embedded Audio Output	HDMI
Multiview Output	9-Way Multiview via HDMI
Monitor Output	1x HDMI
Other I/O	1x RJ45 LAN, NDI Input/Output
IP Video	1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding
Transport Protocols	RTMP
Simultaneous Streams	3 Streams
Compatible Services	Facebook Live, Instagram, TikToK, Twitch, YouTube Live
Recording Media	1x SD (Unspecified Type), USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes	1920 x 1080p at 24/25/30/50/60 fps (70 Mb/s H.264/AVC)
Wi-Fi	No
Bluetooth	No
Power I/O	1x Barrel (12 VDC ) Input
Power Consumption	Device: 12 VDC (14 W)
Operating Conditions	5 to 40°C
Dimensions	252.4 x 107.3 x 49.3 mm
Weight	500 g

INCLUDED BY DEFAULT

• OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder
• Power Adapter
• Free NDI license (included with firmware upgrade)
• Free GoStream Software for Mac or Windows (download)
