Osprey 230 Video Capture Card (B-STOCK)







Osprey 230e Video Capture Card

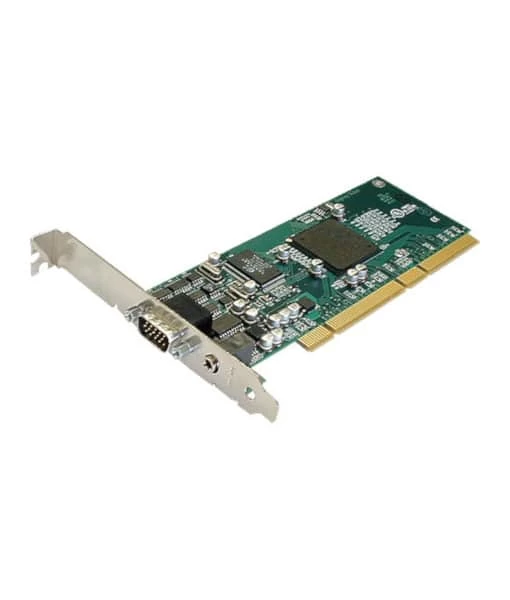

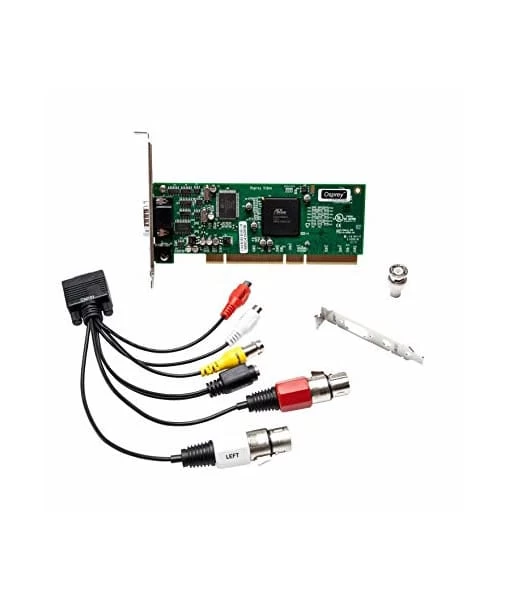

The Osprey 230 video capture card works with PCI and PCI-X architectures. This single channel card supports composite and S-Video inputs along with balanced or unbalanced stereo audio. Designed to capture video for streaming, this PC™ card is an excellent choice for budget-conscious users who need to capture and deliver video from composite and S-Video sources.

With the SimulStream driver enhancement software, you can individually create, tailor, and optimize video for several applications and audiences – all at the same time – live. With the SimulStream software, the Osprey 230 Video Capture Card empowers you to deliver full-frame video to high-speed Internet users or smaller, lower-rate video to DSL and dial-up subscribers, as well as optimized video for several different mobile device standards – all while saving the same content to a storage device for post-processing and other Video on Demand (VOD) applications.



Features

• Low-profile form factor
• Supports global analog standard-definition formats, including NTSC and PAL
• Automatically detects and adapts on-the-fly when the input video format changes frommovie frame rates to television frame rates
• Provides automatic optimization for changing motion content
• Includes logo/bitmap overlay with transparency and positioning controls
• Captures full-frame video at 30 frames per second providing full standard-definition resolution for maximum quality
• PCI-X compatible
• Provides audio loop-back output
• Drivers available for Microsoft Windows and Linux operating systems
• Applications: Broadcasters, enterprise, government, OEM systems integrators, webcasting, live streaming, podcasting, mobile TV, video on demand, and surveillance
• 64-bit PCI interface
• 32-bit/33 MHz PCI compatible
• 3.3 V PCI 2.3 compliant
• Comes with a low-profile bracket



Technical specifications

Driver Support	Microsoft DirectShow API Linux available from open source community
System Requirements	Osprey 230 Video Capture Card: Multi-core processors are recommended to run video applications SimulStream Driver Enhancement Software: Compatible Osprey video capture card Osprey driver 4.xx or higher Microsoft Windows operating system compatible with your driver version
Inputs	Video: One-Channel Selectable Input: Composite (1x BNC) S-Video (mini-DIN)Audio: 2 x RCA unbalanced stereo 2x XLR balanced stereo
Outputs	Audio: 3.5 mm unbalanced stereo line
Video Format	NTSC/PAL
Pre-Processing	Closed-caption extraction/rendering Software-adjustable hardware audio gain control Logo/bitmap overlay Scaling, cropping, de-interlacing, and inverse telecine Loss of video automatic test pattern generation with text overlay
Dimensions (L x H)	6.60 x 2.71″ (167.6 x 68.8 mm)
