Osprey 480e Analog Video Capture Card



Osprey 480e Analog Capture Card

The Osprey 480e is Ideal for mission critical video capture, deploy two or more cards in a single workstation or server chassis for maximum input density. Driver based pre-processing features include closed-caption extraction and rendering, logo and bitmap overlay, scaling, cropping, deinterlacing and inverse telecine. The quality, reliability and flexibility makes this series perfect for applications in Broadcast, Education, Enterprise, Government, Medical, Military, sports and House of Worship.

SimulStream

The Osprey 480e offer optional SimulStream® which allows each input to produce multiple parallel output streams with independent settings for color space, cropping, scaling, closed caption and overlaysfacilitating simultaneous delivery to multiple applications.



Features

• Simulstream: Simulstream lets you extract multiple streams with
  independent resolutions and frame rates from a single input.
• Medialooks SDK Support
• Independent Scaling and Frame Rate Conversion for each Input



Osprey 480e Analog Video Capture Card

Breakout Cable Connector	8x BNC – RCA adapters included
Video Input	8x Composite / CVBS
Video Modes:	720 x 480 29.97, 30/I (NTSC) 720 x 576 25i (PAL)
Audio Input	Via Breakout Cable: 8x Mono Audio or 4x Stereo Audio
Power Consumption	12 W
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 167°F (-40 to 75°C)
Operating Relative Humidity	5 to 80% (non-condensing)
Storage Relative Humidity	95% RH (non-condensing); gradient 30% per hour

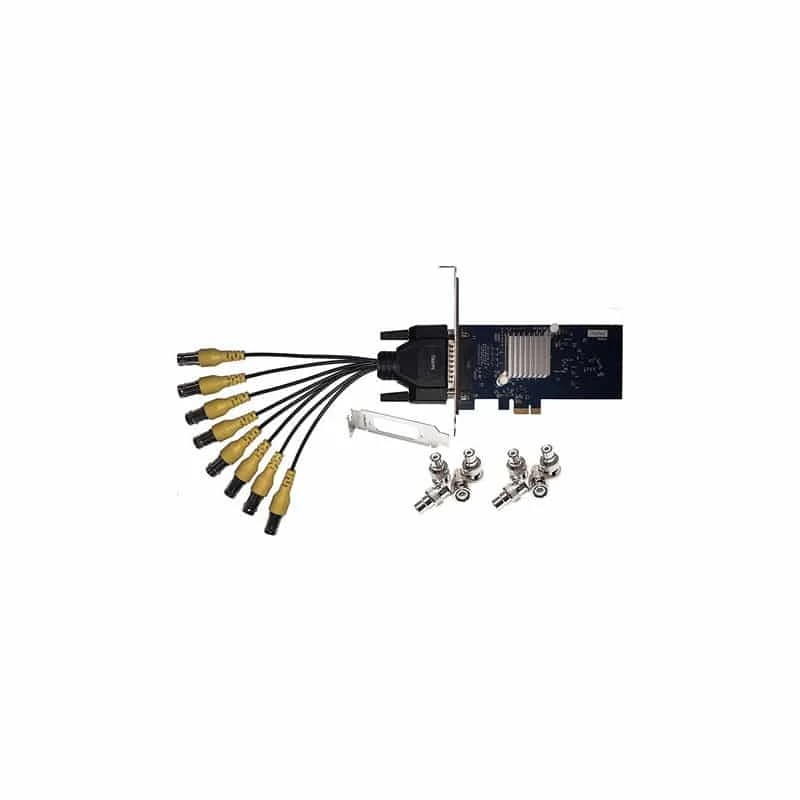

In the box	Capture Card with Full and Half Height Bracket Breakout Cable and 8x BNC to RCA Adapters
Weight	48 g (without breakout cable)
