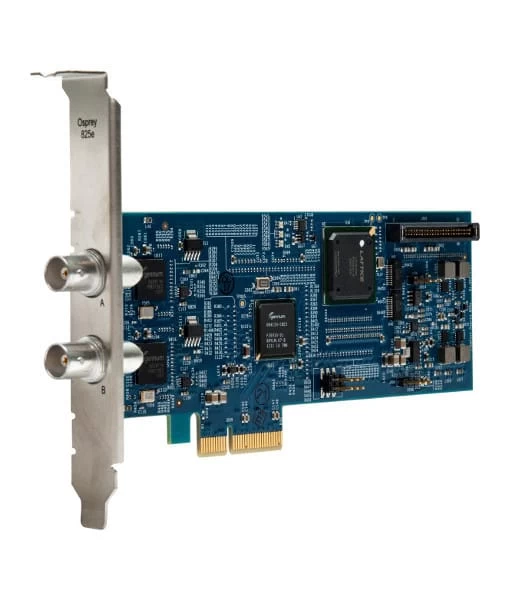

Osprey 825e Dual 3G-SDI Video Capture Card





Features

• Two-Channel SDI Video Capture
• SD-SDI, HD-SDI and 3G-SDI Support
• HD Resolutions up to 1080i60 and 1080p30
• Also Supports 720p, NTSC and PAL
• Logo Insertion and Graphic Overlay
• Close-Caption Extraction and Rendering
• Scale/Crop/De-Interlace/Inverse Telecine
• For Live Streaming and Recording
• Windows DirectShow and Linux Drivers





Osprey 825e Dual 3G-SDI Video Capture Card

Video Input	3G SMPTE 424M x 2 HD SMPTE 292M x 2 SD SMPTE 259M x 2 DVB-ASI X2
Audio Input	Embedded SDI (4 stereo pairs per SDI input)
Supported Resolutions	1920 x 1080: 60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p 1280 x 720: 60p, 59.94p, 50p, 30p, 25p, 24p, 23.98p 720 x 480 (NTSC): 30i, 29.79i 720 x 576 (PAL): 50p, 25p, 25i 3G-SDI (1920 x 1080): 60p, 50p, 59.94p
Supported Standards	3G SMPTE 424 M, HD SMPTE 292 M, SD SMPTE 259 M
Host Interface	PCIe 1.1 x4
System Requirements	Windows Driver (required for DirectShow API support) Windows XP Windows 7 Linux Driver Various Open Source distributions: available from package manager and source code repositoriesHardware Varies depending on capture / streaming application being used: Quad processor or better Free x4, x8 or x16 PCIe slot
Dimensions	Low-profile form factor 6.6 x 2.7″ (16.8 x 6.8 cm)
