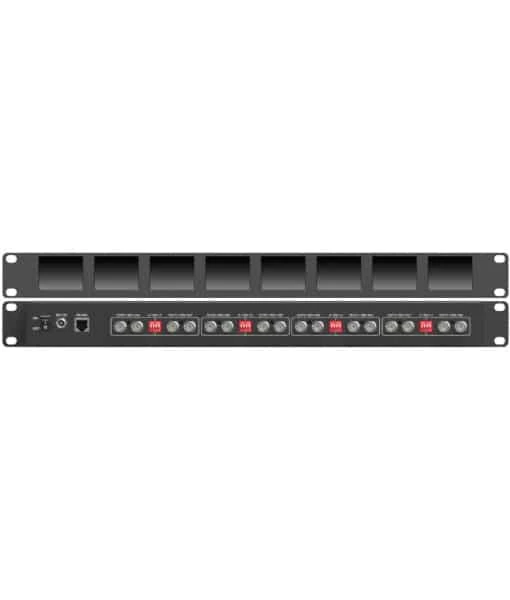

Osprey MVS-8 Rackmount Monitor







Osprey MVS-8 Rackmount Monitor

MVS-8 is an 8 Channel Rackmount Monitor supporting 3G-SDI. It also features Audio Bars and Time Code Display. A Windows Software Application enables Brightness and Contrast adjustments as well as custom display overlay.



Display

8x 2″ TFT LCD

Resolution 640×240 (supports up to 1920×1080)

Aspect Ratio 4:3

Contrast 300:1

Viewing Angle 80

Video Connections (all Full Size)

8x 3G-SDI with Loopouts

SDI Video Standards (Level A)

525i59.94 NTSC, 625i50 PAL

720p50,59.94,60

1080p23.98,24,25,29.97,30,50,59.94,60

1080psf 23.98,24

1080i50,59.94,60

SMPTE SDI Compliance

125M, 292M, 296M, 372M

Controls

Dip Switch Controls in the Back of the Unit

Windows RS422 Control Software

Power

12-24VDC Power Input

Power Requirement <18W

Multi View Options

Support for Dual/Quad View and PIP Mode. All Inputs can be used for various different Layout Options ranging from Side-by-Side Dual View, PIP up to Quad View.

In the Box

Monitor | Power Supply | RJ12 to DB9 RS422 Adapter

Dimensions

1U 482.5 x 44 x 104.7mm

Weight 1.6kg

Environment

Operating Temperature 0C to 40C

Non-Operating Temperature -20C to 60C

Warranty

2 years
