Name: Navigeer door de Laatste Modetrends met Onze Osprey Raptor Series 1245 PCIe Capture Card.
SKU: OS-1245
Price: 95.99 EUR
Availability: InStock

Aanbieding!

Oorspronkelijke prijs was: 391,00 €.Huidige prijs is: 95,99 €.

The Osprey Raptor Series 1245 PCIe Capture Card can capture four channels of SDI video at up to 60 fps. This capture card offers four SDI connections, all of which are rated at 12 Gb/s. The card’s SDI ports work with SD, HD, Ultra HD, and 4K DCI frame sizes and support 16 embedded audio channels (eight stereo channels) each. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package..

Key features

8-Lane PCIe Video Capture Card
4 x 12 Gb/s SD/HD/3G-A/2K/4K SDI
Micro BNC Interface
16 Audio Channels per Connection
Full-Height Bracket Preinstalled
Half-Height Bracket Included

Artikelnummer: OS-1245 Categorieën: Capture cards, SDI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

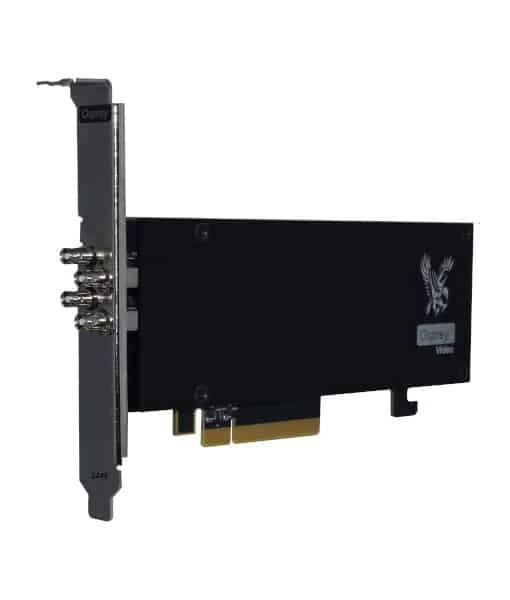

Osprey Raptor Series 1245 PCIe Capture Card

Capture four channels of SDI video at up to 60 fps with the Raptor Series 1245 PCIe Capture Card from Osprey. This capture card offers four SDI connections, all of which are rated at 12 Gb/s. The card’s SDI ports work with SD, HD, Ultra HD, and 4K DCI frame sizes and support 16 embedded audio channels (eight stereo channels) each. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package..

Featuring SimulStream technology, this capture card allows you to produce multiple parallel live-stream output streams from each SDI input. Each output stream can be sent to a different destination, with independent settings for color space, cropping, scaling, closed caption, and overlays. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.

Features

SimulStream
Seamless adaption to input signal changes
Cropping
Custom loss of signal insertion
Watermarking
MediaLooks SDK support
CC overlay
VBI extraction
CC extraction
Automatic signal detection
Image control (Procamp)
De-interlacing
Scaling
Frame rate conversion
Multiple cards per host computer
Text overlay or system time and date
Dual mono audio
Unified driver for all Raptor cards
Fanless design

Technical specifications

Computer Interface	PCI Express Gen2 x8
Connections	4 x 12 Gb/s SD/HD/3G-A/2K/4K (Micro HD BNC)
Audio I/O	16 x Embedded Channels (8 Stereo) each
Video Standards	525i59.94 NTSC, 625i50 PAL 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60 2K DCI p23.98p, 24, 25, 29.97, 30, 50, 59.94, 60 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4K DCI p23.98, 24, 25, 29.97, 30, 50, 59.94, 6
SDI Compliance	SMPTE 259/292/296/424/425/2081/2082, ITU-R BT.656 and ITU-R BT.601 3G-SDI Level A Only
SDI Metadata Support	CEA-608, CEA-708 for Closed Captioning
Audio Sampling	Television Standard Sample Rate of 48 kHz at 24-Bit
SDI Color Precision	8, 10, 12-Bit RGB 4:4:4 up to 4K DCI 30p, and 8, 10, 12-Bit YUV 4:4:4 and 4:2:2 in All Modes
Multiple Rate Support	Auto-Detect SD/HD/3G/2K/4K
Power Consumption	8.4 W Approx.
Operating Temperature	32 to 104°F / 0 to 40°C
Weight	4.9 oz / 138 g
